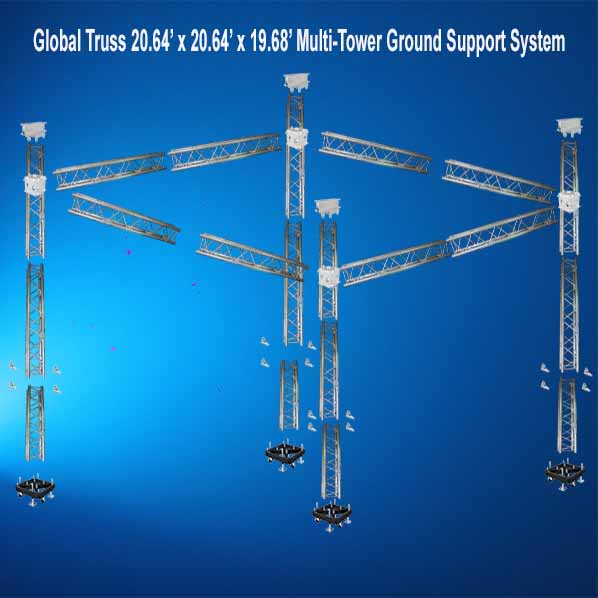

Materials Needed (Per Tower)

Each of the four towers in this global truss ground support system requires the following components:

   • 1x CHAIN HOIST30 – 1 Ton, 30 ft. Manual Chain Hoist (currently out of stock, excluded from total package price)

• 1x 44BS-1 – Ground Support Base

• 4x GT-492145-1 – Outrigger with Stabilizer Arm

• 1x GT-BLOCK – Sleeve Block (1.3 ft square)

• 1x GT-TOP/CM – Top for Chain Motor

• 2x SHACKLE 5/8 – 5/8-inch Steel Shackle (Max Load 3-1/4 Tons)

• 1x WIREROPE9 – 9 ft. Round Sling with Aircraft Cable Inside

• 2x HINGE/M12-L/88MM – Left 88mm Hinge for Ground Support System

• 2x HINGE/M12-R/88MM – Right 88mm Hinge for Ground Support System

• 1x Global Truss F34 12" Aluminum Box Truss 1.64 ft.

• 2x Global Truss F34 12" Aluminum Box Truss 9.02 ft.

Top Horizontal Trusses

• 8x Global Truss F34 12" Aluminum Box Truss 9.02 ft. (2 for each side  connected in between GT-BLOCKs )
