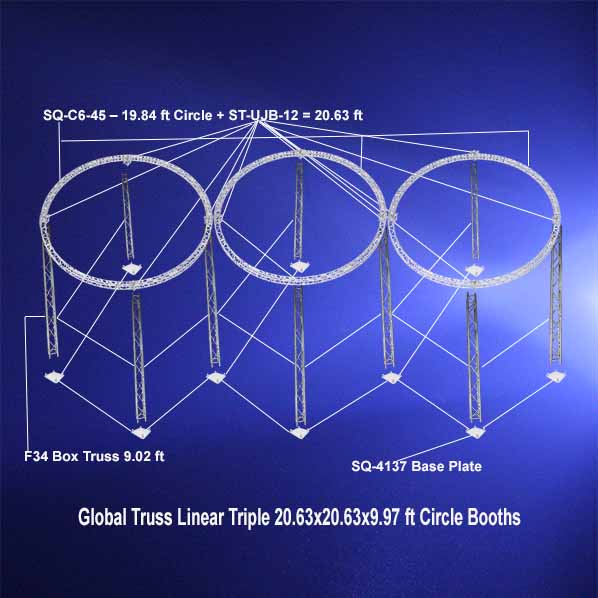

Materials List

This system uses Global Truss F34 aluminum truss, trusted worldwide for stage trussing, lighting truss systems, and convention booth truss structures.

🔵 Circle 1 – Left Circle

• 1× SQ-C6-45 – 19.68 ft Circle Segment
  (Expands to 20.63 ft diameter once junctions are installed)

• 4× ST-UJB-12 Junction Blocks
  Positioned at North, East, South, and West


🔵 Circle 2 – Middle Circle

• 1× SQ-C6-45 – 19.68 ft Circle Segment

• 4× ST-UJB-12 Junction Blocks


👉 Important Design Note:
The middle circle connects to the left and right circles through the ST-UJB-12 junctions at the East–West points, forming a perfectly aligned linear triple-circle booth layout.

🔵 Circle 3 – Right Circle

• 1× SQ-C6-45 – 19.68 ft Circle Segment

• 4× ST-UJB-12 Junction Blocks


Each circle finishes at 20.63 ft diameter, creating a clean, symmetrical, professional appearance.

Vertical Support & Base (Where Safety Meets Stability)

A great aluminum truss display booth isn’t just about looks — it must be solid.

🟦 Vertical Posts

• 10× Global Truss F34 9.02 ft Aluminum Box Truss
• Evenly distributed across the three circles

• Supports lighting, banners, fabric graphics, and signage


🟦 Base Plates

• 10× SQ-4137 Heavy-Duty Steel Base Plates
• Keeps the booth grounded and compliant

• Ideal for portable stages, trade shows, and indoor expos


Additional Hardware (The Secret Sauce)

🔧 Half Couplers

• 12× ST-UJB-12 / C-12 Half Couplers (4 per pack)
