📦 Materials You’ll Need (Buy Everything at Famous Stages)

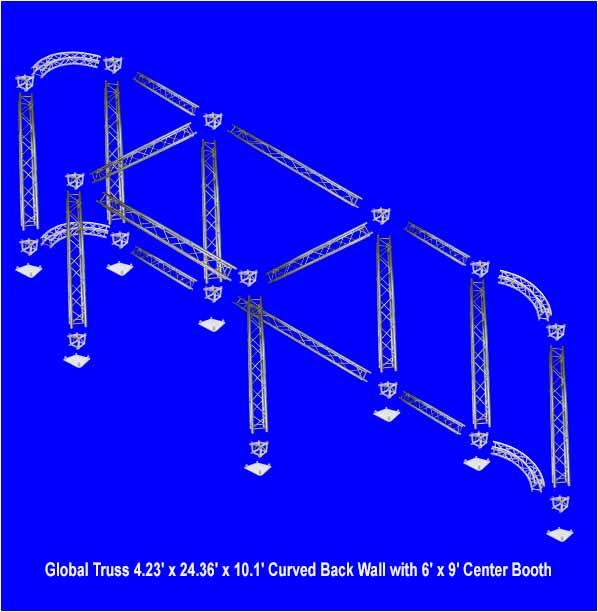

Here’s your exact shopping list for building the Global Truss 4.23' x 24.36' x 10.1' Curved Back Wall with 6' x 9' Center Booth:

1. Global Truss ST-UJB-12 Junction Blocks – 16 pcs.
• 2 pcs. for Post 1 (top and bottom)

• 2 pcs. for Post 2

• 2 pcs. for Post 3

• 2 pcs. for Post 4

• 2 pcs. for Post 5

• 2 pcs. for Post 6

• 2 pcs. for Post 7

• 2 pcs. for Post 8

2. Global Truss F34 Box Truss 4.10 ft – 6 pcs.
• 2 pcs. top and bottom between Post 2 and Post 3

• 2 pcs. top and bottom between Post 4 and Post 5

• 1 pc. top left side of the center booth (Post 3 to Post 7)

• 1 pc. top right side of the center booth (Post 4 to Post 8)

3. Global Truss 1/4 Arc SQ-C2-90 6.56 ft – 4 pcs.
• 2 pcs. (top and bottom) for leftmost wing curve (Post 1 to Post 2)

• 2 pcs. (top and bottom) for rightmost wing curve (Post 5 to Post 6)

4. Global Truss F34 Box Truss 6.56 ft – 3 pcs.
• 2 pcs. (top and bottom) for back of center booth (Post 3 to Post 4)

• 1 pc. top front truss of center booth (Post 7 to Post 8)

5. Global Truss F34 Box Truss 8.2 ft – 8 pcs.
• Vertical posts (Posts 1–8)

6. Global Truss SQ-4137 Base Plates – 8 pcs.
• 1 base plate for each vertical post
