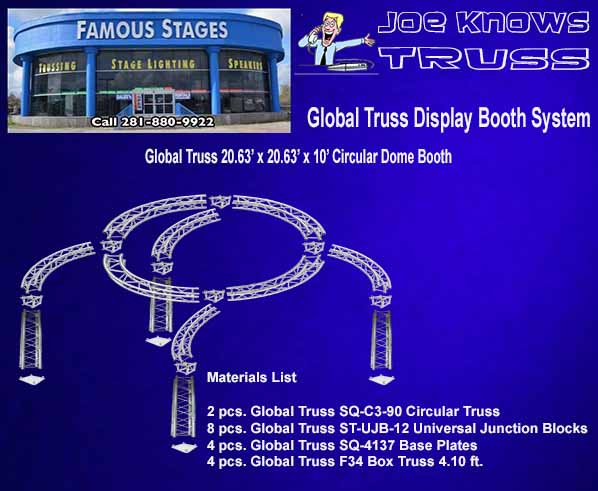

— The Ultimate Double-Circle Display Powerhouse

If you want a trade show booth that stops people in their tracks, pulls attendees into your space, and showcases your brand with style, this Global Truss 20.63 x 20.63 x 9.97 ft Circle Booth with a 10.79 ft Inner Circle is exactly what you need. Built with high-quality stage truss, lighting truss, aluminum truss, and professional-grade stage trussing, this structure is perfect for conventions, live events, DJ setups, festivals, and elegant display booth truss installations.

This upgraded guide is packed with SEO-friendly details to help FamousStages.com dominate searches for global truss, dj lighting truss, lighting trussing, convention booth truss, and everything related to portable stages and event structures.

Let’s build something unforgettable.

⭐ Why This Circle Booth Rules the Trade Show Floor

This double-ring exhibition piece is a dream for production managers, DJs, AV techs, and exhibitors who want maximum visual impact. The blend of global truss engineering, aluminum lighting truss, and heavy-duty lighting trussing gives you:

• A dramatic 20.63 ft outer circle

• A clean 10.79 ft inner circle

• A bold 9.97 ft height supported by strong vertical posts

• Perfect spacing for branding, LED moving heads, signage, and wash lighting

• A professional convention booth truss structure that installs cleanly and safely

• An architectural look perfect for photos, videos, and marketing


Whether you're creating a DJ activation, product showcase, or an island-style display booth truss setup, this booth is the perfect way to elevate your event presence.

🧰 MATERIALS YOU NEED

1. (1) SQ-C6-45 19.68 ft Outer Circle Truss
   Becomes 20.63 ft diameter when an ST-UJB-12 is added at the North, East, South, and West.

2. (1) SQ-C3-90 9.84 ft Inner Circle Truss
   Expands to 10.79 ft diameter with ST-UJB-12 junction blocks at the same N-E-S-W positions.

3. (4) F34 9.02 ft Box Trusses
   Used as vertical posts to reach a total booth height of 9.97 ft once the outer circle is mounted on top.

4. (4) SQ-4137 Base Plates
   Heavy-duty supports ideal for stage trussing and portable stages.

5. (4) F34 3.28 ft Top Trusses

6. (4) SQ-2921P 0.69 ft Truss Spacers
   Combined total for connecting trusses: 3.97 ft.

7. (8) ST-UJB-12 Junction Blocks
   (4 for outer circle + 4 for inner circle)

8. (12 packs) ST-UJB-12/C-12 Half Couplers with Alien Bolts


⚙️ STEP-BY-STEP GUIDE

STEP 1 — Position the Base Plates

Lay down the four SQ-4137 base plates in a perfect square:
20.63 ft left-to-right and 20.63 ft front-to-back.

This gives you a rock-solid foundation for your stage truss and lighting truss structure.

STEP 2 — Install the 9.02 ft Vertical Posts

Connect each F34 9.02 ft truss vertically to a base plate.

These strong aluminum posts support all the weight and create a secure framework for:

• Lighting fixtures

• Branding

• Overhead dj lighting truss installations

• Signage


This is where aluminum truss meets reliability.

STEP 3 — Build the Outer Circle (20.63 ft Total Diameter)

Lay the SQ-C6-45 (19.68 ft circle truss) on the floor.
Insert four ST-UJB-12 junction blocks at the N-E-S-W positions.

This expands the geometry to the full 20.63 ft diameter and creates connection points for:

• Vertical posts

• Top horizontal trussing

• Inner circle alignment


This is the key to clean, professional lighting trussing design.

STEP 4 — Lift and Mount the Outer Circle

Gather your team and lift the completed circle.
Align each ST-UJB-12 with one of the four vertical posts.
Secure using the ST-UJB-12/C-12 half couplers with alien bolts.

This is where the structure begins looking like a real convention booth truss or portable stages crown.

STEP 5 — Assemble the Inner Circle (10.79 ft)

On the floor, assemble the SQ-C3-90 inner circle.
Add four ST-UJB-12 junction blocks at the N-E-S-W points to achieve the full 10.79 ft diameter.

This inner halo gives your booth dimension, depth, and an architectural flare.

STEP 6 — Connect Outer Circle to Inner Circle

At each N-E-S-W junction of the outer circle, connect:

• One 3.28 ft F34 horizontal truss

• One 0.69 ft SQ-2921P truss spacer


This creates 3.97 ft top beams between the circles.

Attach one end to the outer ST-UJB-12 and the other to the inner ST-UJB-12.

Repeat at all four points.

Your display booth truss now has a floating inner ring connected by perfect symmetrical beams—clean, strong, and visually impressive.

STEP 7 — Final Tightening and Safety Check

Walk the entire structure.
Tighten every alien bolt.
Confirm every connection on:

• Vertical posts

• Outer circle

• Inner circle

• Horizontal beams


You now have a complete, rigid, secure global truss structure ready to support lighting, banners, sound, and branding.

🎉 Congratulations — Your Circle Booth Is Complete

You now have a stunning booth that blends form and function with:

• A 20.63 ft outer ring

• A 10.79 ft inner ring

• A 9.97 ft height

• Four vertical pillars

• Four evenly spaced top beams

• Strong aluminum construction perfect for dj truss, lighting truss, stage truss, and portable stages


This booth is ideal for:

• Trade shows

• Exhibitions

• DJ events

• Product showcases

• Festivals

• Corporate activations

• Branded experiences

• LED displays

• Convention setups

• Photo & video areas


🛒 Buy All Components at FamousStages.com

Famous Stages is your go-to source for:

• Global truss

• Stage truss and stage trussing

• Lighting truss and lighting trussing

• DJ truss and dj lighting truss

• Aluminum truss and aluminum lighting truss

• Display booth truss systems

• Portable stages

• Base plates, clamps, connectors, and hardware


The Ultimate Double-Ring Trade Show Powerhouse

If you want a trade show booth that turns heads and pulls attendees in like a magnet, this is the one. A perfectly engineered Global Truss F34 double-ring circular booth delivers a visual punch that no square or rectangle can match. It’s clean. It’s modern. It’s symmetrical. It’s rock-solid and tour-worthy.

Whether your goal is to rig lighting truss fixtures, build a striking display booth truss structure, create a DJ truss centerpiece, or produce a high-impact convention booth truss layout, this double-circle system delivers unmatched presence.

Let’s build your new trade show weapon.

MATERIALS NEEDED

Outer & Inner Circles

1. 1 × SQ-C4-90 (13.12 ft truss circle)
   – Becomes 14.07 ft diameter using SQ-UJB-12 junction blocks at N-E-S-W.

2. 1 × SQ-C9-30 (29.52 ft truss circle)
   – Becomes 30.47 ft diameter using SQ-UJB-12 junction blocks at N-E-S-W.


Vertical Structure
3. 8 × F34 9.02 ft Box Truss
– 4 for the outer ring, 4 for the inner ring.

Bases
4. 8 × SQ-4137 Steel Base Plates

Rigging & Connectors
5. 8 × SQ-UJB-12 12-inch Junction Blocks
– 4 for outer circle N-E-S-W, 4 for inner circle N-E-S-W.

6. 16 × ST-UJB/C-12 half Couplers with Alien Bolts
– For secure, professional-grade locking between arcs, junction blocks, spacers, verticals, and connector beams.

Circle-to-Circle Connectors
7. 4 × SQ-2921 0.69 ft F34 Spacers
8. 4 × F34 Box Truss 6.56 ft
– Each one combines with a 0.69 ft spacer to create 7.25 ft connector beams linking the inner and outer circles.

This layout ensures a symmetrical, stable, visually striking installation built from premium aluminum truss — ideal for heavy lighting trussing, DJ lighting truss setups, branding rings, and immersive expo environments.

STEP 1: Build the Outer Circle (30.47 ft)

Lay down four SQ-4137 base plates in perfect N-E-S-W orientation.

Assemble the SQ-C9-30 arcs and insert the SQ-UJB-12 junction blocks at each directional point. Secure everything using ST-UJB/C-12 ½” Couplers with Alien Bolts, locking down:

• Arc-to-junction block connections
• Junction block-to-arc return connections

The Alien Bolt couplers create an ultra-tight union, eliminate micro-shifts, and improve load distribution — essential for any large lighting truss or stage trussing installation.

Your final outer ring diameter = 30.47 ft.

STEP 2: Build the Inner Circle (14.07 ft)

Inside the outer circle, place four more base plates at N-E-S-W.

Assemble the SQ-C4-90 small arcs, insert the four SQ-UJB-12 junction blocks, and secure all connections using your ST-UJB/C-12 ½" Alien Bolt Couplers.

Your inner circle is now a perfect 14.07 ft diameter structure — stable, compact, and ideal for LED centerpieces, hologram rigs, product demos, or brand activation pods.

STEP 3: Install the 8 Vertical F34 Truss Posts

Bolt the 8 × F34 9.02 ft vertical truss posts onto each base plate:

• 4 for the outer circle
• 4 for the inner circle

Use ST-UJB/C-12 couplers to lock each vertical truss firmly into its base-side junction block connection.

These couplers greatly increase overall rigidity — crucial once overhead lighting truss, banners, or LED loads are applied.

This brings your height to 9.97 ft.

STEP 4: Raise & Secure the Inner Circle

With enough helpers (and ladders), lift the complete 14.07 ft inner ring.

Attach the ring to the tops of the four vertical posts using the SQ-UJB-12s and your Alien Bolt couplers for maximum rigidity and vibration resistance.

STEP 5: Raise & Secure the Outer Circle

Now lift the 30.47 ft outer ring and secure it to the top of the four outer vertical posts.

This ring becomes the main structural and visual frame of your display booth truss design.

Using Alien Bolt couplers eliminates rotational drift and ensures perfect symmetry across the entire booth.

STEP 6: Build & Install the 7.25 ft Connector Beams

Create four connector beams:

**1 × 6.56 ft F34 truss
+
1 × 0.69 ft SQ-2921 spacer

7.25 ft finished beam**

Use ST-UJB/C-12 ½" Alien Bolt Couplers so the truss and spacer behave as a single rigid unit.

Attach each completed beam between the outer and inner junction blocks (N-E-S-W).
Secure both ends with Alien Bolt couplers for maximum load strength and perfectly aligned geometry.

Your structure now becomes a completely stabilized, visually massive double-ring truss system.

STEP 7: Add Lighting, Branding, LED Screens & DJ Production Gear

With the structure fully locked, it’s time to turn it into a showpiece.

This booth supports:
• Moving head lighting
• Wash fixtures
• LED strip halos
• Center-hung LED spheres
• Lightweight screens
• Hanging signage
• Brand rings
• DJ lighting systems
• Fabric stretch displays
• Projection mapping

This is where stage truss, lighting truss, DJ truss, aluminum lighting truss, and portable stages all come together to create a powerful 360° immersive environment.

Alien Bolt couplers ensure the booth performs like a professionally engineered touring structure.

WHY THIS DOUBLE-RING DESIGN GENERATES MORE AUDIENCE

A circular booth naturally draws crowds —
but a circle-within-a-circle double-ring generates:

• More curiosity
• More engagement
• More photos
• More walk-through traffic
• More visibility from across the trade show floor

Combined with Global Truss F34 and ST-UJB/C-12 Alien Bolt couplers, you get a structure that’s:

• Strong
• Lightweight
• Modular
• Reusable
• Beautiful
• Perfect for lighting trussing & display booth truss setups
• Ideal for major conventions and live events

This is the type of booth big brands and production companies use when they want to dominate a show.

READY TO BUILD YOUR OWN DOUBLE-RING BOOTH?
FAMOUSSTAGES.COM HAS EVERYTHING YOU NEED

From stage truss and lighting truss to junction blocks, Alien Bolt couplers, aluminum truss segments, and complete ready-to-build circle booth kits — FamousStages.com is your #1 source for professional-grade trussing systems.

If you want maximum visibility, maximum audience, and maximum impact…
the 30.47 ft + 14.07 ft double-circle booth is the one to build.

The Ultimate Trade Show Booth Setup Guide from FamousStages.com

If you want a trade show or event booth that instantly says “We’re the real deal,” the Global Truss F34 20x20x10 ft Square Booth with Center Circle Truss is the perfect system. This setup is bold, symmetrical, and engineered from premium aluminum truss — lightweight, durable, and trusted by DJs, exhibitors, lighting techs, and production managers everywhere.

Below is the complete step-by-step guide on how to build this stunning Global Truss display booth, using all the exact F34 components required.

🔧 Materials You’ll Need

• 8× F34 Box Truss 9.02 ft Vertical Posts
  For the outer square vertical columns. Total height with junction block: ≈9.97 ft.

• 12× ST-UJB-12 Universal Junction Blocks
  8 for the top of the outer vertical posts, 4 for the N–E–S–W mounting points on the inner circle.

• 1× SQ-C2 90° Truss Circle 6.56 ft (4 Quarter Segments)
  Assembled diameter becomes 7.51 ft once ST-UJB-12 blocks are attached.

• 8× F34 Box Truss 8.2 ft
  Used to form the horizontal sides of the outer square.

• 4× F34 Box Truss 4.92 ft
  Used to connect outer midpoint blocks to the inner circle truss.

• 8× SQ-4137 Base Plates
  Heavy-duty foundations for all eight vertical posts.

• 16× ST-UJB/C-12 ½ Couplers with Alien Bolts
  For secure, reliable connections throughout the system.

This configuration forms a clean and powerful structural layout ideal for lighting truss, DJ truss, stage trussing, display booth truss setups, and trade show installations.

🏗️ Step 1: Set Your Foundation

Start by laying out your 8 SQ-4137 base plates in a perfect 20×20 foot square.

For accuracy, the total length of each side equals:
0.95' (UJB-12) + 8.2' (truss) + 0.95' (UJB-12) + 8.2' (truss) + 0.95' (UJB-12) = 19.25 ft

This is the real-world truss-to-truss dimension.

Mount each 9.02 ft F34 vertical post onto its base plate using couplers.
Place an ST-UJB-12 on top of each vertical post — this brings the total height to about 10 ft (9.97 ft).

Pro Tip: Measure twice, adjust once. A perfectly square base makes the entire assembly smoother and faster.

The foundation is now set for your Global Truss F34 booth

🧱 Step 2: Build the Outer Square Frame

With all eight posts standing, begin forming the upper square.

Attach two 8.2 ft F34 truss segments between every group of three ST-UJB-12 junction blocks.
Repeat on all four sides.

Once complete, you’ll have a strong, symmetrical approximately 20x20 square truss frame (real world truss dimension is 19.25'x19.25') overhead — the perfect platform for:

• LED lighting

• Moving heads

• LED video screens

• Hanging banners

• Trade show signage

This is the backbone of your display booth truss or trade show booth truss structure.

🔄 Step 3: Assemble the 7.51 ft Center Circle Truss

Your booth’s showpiece is the center circle. You can assemble this on the ground first, then raise it along with the truss connectors  to the outer square structure.

1. Connect all four SQ-C2 quarter arcs using the conical connectors.

2. Once assembled, place an ST-UJB-12 on the N–E–S–W points of the circle.

3. The circle now measures 7.51 ft in diameter when measured from ST-UJB-12 to ST-UJB-12.

This center circle truss is perfect for:

• Spotlighting

• Hanging moving heads

• Logo projection

• Decorative lighting

• Branding elements

Your center circle truss lighting design will be a major visual centerpiece.

🔗 Step 4: Connect the Outer Frame to the Center Circle

Now bring the entire booth design together.

Use your 4.92 ft F34 truss segments to connect:

Each outer middle ST-UJB-12 → to the N, E, S, and W junction blocks on the circle

This creates the iconic “radial” look of the booth.
Structurally, it stabilizes the circle; visually, it adds architectural energy and modern symmetry.

This step transforms the booth into a premium Global Truss trade show system suitable for:

• DJ stage setups

• Corporate activations

• Exhibits

• Convention booth truss layouts

• Concert merchandise booths

💡 Step 5: Tighten, Inspect & Light It Up

Walk around the entire structure and verify:

• All couplers are tightened

• All Alien Bolts are secure

• Junction blocks are properly seated

• Truss lines are straight and balanced

Your finished booth can now confidently support:

✔ Lighting truss fixtures
✔ Video panels
✔ Printed signage
✔ Hanging décor
✔ DJ lighting truss rigs
✔ Portable stages and risers nearby

You now have a rock-solid, professional-grade structure built entirely from Global Truss F34 components.

✨ Why This Setup Is So Popular

1. Professional Look

The circular truss in the center creates a striking visual focal point instantly.

2. Modular & Reusable

Thanks to the F34 system, you can reconfigure this booth for:

• 10x20 setups

• 20x20 setups

• 20x10 inline booths

• Stage truss arches

• Lighting truss grids

3. Strong Yet Lightweight

The aluminum truss system is road-ready but easy to handle.

4. Perfect for DJs, Exhibitors & Production Crews

Whether you need DJ truss, lighting trussing, or a trade show booth truss, this system adapts beautifully.

🚀 Ready to Build Your Own?

All the components used in this build — F34 8.2 ft truss, F34 9.02 ft vertical posts, ST-UJB-12 blocks, circle truss segments, and more — are available right now at FamousStages.com.

When you shop with us, you get:

• Authentic Global Truss

• Fast shipping

• Excellent pricing

• Expert customer support

• Guaranteed compatibility

So why wait?

Turn your vision into reality with the Global Truss F34 20x20x10 ft Square Booth with Center Circle Truss — and make your next event unforgettable.

If you’re dreaming of a show-stopping trade show booth truss or DJ lighting truss display that demands attention, the Global Truss 29.09x29.09x9.97 ft Square Booth with a 14.07 ft Inner Center Truss Circle Booth is exactly what you need. This modular and visually striking stage truss system is designed for professionals who want both durability and style. Using Global Truss F34 aluminum lighting truss, you can create a structure that’s perfect for conventions, concerts, or brand showcases — all available now at famousstages.com.

Materials You’ll Need

• 12x F34 Box Truss 9.02 ft Vertical Posts (8 for the outer square posts, 4 for the inner circle booth)

• 12x ST-UJB-12 Junction Blocks (8 on top of the outer square posts, 4 on top of the inner circle posts)

• 1x SQ-C4 90 Truss Circle 13.12 ft (four ¼ arc segments form the inner circle booth)

• 8x F34 Box Truss 13.12 ft (two per side for the outer square connections)

• 4x F34 Box Truss 6.56 ft (each connects the middle outer posts to the north, south, east, and west ST-UJB-12 junctions of the inner circle booth)

• 12x SQ-4137 Base Plates (for the base of all 12 vertical posts)

• 20x ST-UJB/C-12 ½ Coupler with Alien Bolt Packs (four per pack)

All of these stage trussing components are available from Famous Stages, your trusted source for Global Truss, lighting truss, DJ truss, and aluminum truss systems.

Step 1: Lay Down the Foundation

Start by placing your 12 SQ-4137 base plates on the ground. Set 8 bases in a 29.09 ft by 29.09 ft square layout to form the outer booth. Then, position the remaining 4 base plates inside to form a smaller 14.07 ft by 14.07 ft square — this will be your inner center truss circle booth. Think of it as building a booth within a booth, creating a layered, professional structure perfect for lighting and branding setups.

Step 2: Raise the Vertical Posts

Attach each 9.02 ft F34 aluminum box truss vertical post onto the base plates. Place an ST-UJB-12 junction block on top of each vertical post — 8 for the outer square booth and 4 for the inner circle booth. These Global Truss F34 truss posts are made from lightweight yet strong aluminum truss, ideal for supporting lighting fixtures, LED screens, or banners. Be sure to level everything properly to keep the structure perfectly aligned.

Step 3: Build the Inner Center Truss Circle Booth

Now it’s time to assemble the circular booth at the center. Connect the four ¼ arc segments of the SQ-C4 90 Truss Circle (13.12 ft diameter) between the four ST-UJB-12 junction blocks on top of the inner circle posts. Once connected, you’ll have a smooth, circular aluminum lighting truss that’s perfect for hanging moving heads, LED lights, or banners that need 360-degree visibility. This circle booth creates a stunning visual centerpiece for any event.

Step 4: Build the Outer Square Booth

Next, connect the outer square booth using your 8 F34 Box Truss 13.12 ft segments. Each side of the booth uses two of these trusses, connected between the ST-UJB-12 junction blocks on the corner and middle posts. Once complete, you’ll have a sturdy 29.09 ft square truss frame surrounding your inner circle booth. This outer truss is perfect for rigging lighting fixtures, LED walls, banners, or overhead signage, giving your display that professional trade show booth truss look.

Step 5: Connect the Inner and Outer Structures

Now connect the inner circle booth to the outer square frame using your four F34 Box Truss 6.56 ft segments. Each one connects the middle post of the outer square directly to the north, south, east, and west ST-UJB-12 junctions on the inner circle. These connections not only strengthen the entire structure but also create a beautiful geometric design that looks amazing in any event space.

Step 6: Secure Everything with Couplers

Finally, lock everything in place using your ST-UJB/C-12 ½ Couplers with Alien Bolts. These couplers are essential for keeping your lighting truss and stage truss connections tight and safe. They’re quick to install, durable, and perfect for professional touring setups, trade shows, and live productions where stability is key.

Why This Truss Booth Rocks

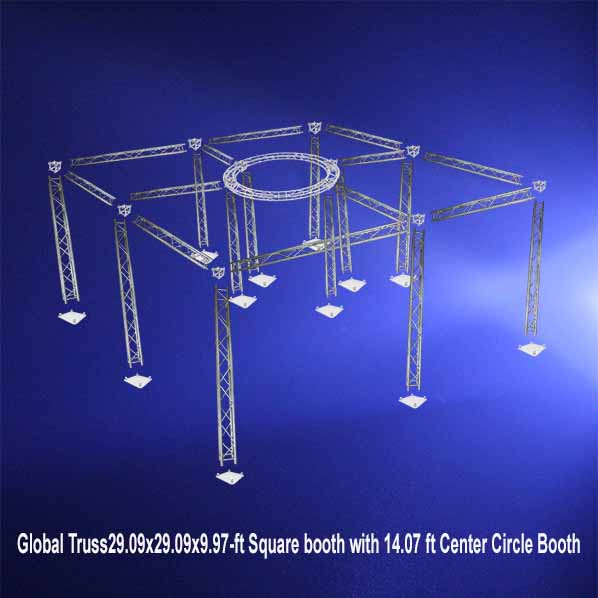

The Global Truss 29.09x29.09x9.97 ft Square Booth with a 14.07 ft Inner Center Circle Booth is not just a structure — it’s a statement. It’s designed for professionals who demand strength, flexibility, and aesthetics all in one system.

• Perfect for trade shows, concerts, and DJ events

• Combines strength, modularity, and modern design

• Lightweight aluminum truss makes transport easy

• Ideal for lighting, LED walls, banners, and branding

Whether you need a DJ lighting truss, a display booth truss, or a portable stage truss system, this Global Truss F34 booth can handle it all with style and stability.

Bring Your Event Vision to Life

At famousstages.com, we make building your dream setup easy. From stage truss systems and lighting truss setups to DJ truss rigs and portable stages, we carry everything you need to make your production stand out.

Whether you’re setting up a trade show booth truss, a concert lighting truss, or a convention booth truss, Famous Stages has the Global Truss gear to bring your creative vision to life.

Shop the full selection of Global Truss F34 aluminum truss systems today at famousstages.com and start building your next show-stopping masterpiece!

When it comes to building a massive, professional, and rock-solid stage setup, few systems can compete with the Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System. Whether you’re designing a concert stage, trade show booth, festival rig, or corporate event trussing, this heavy-duty stage truss system gives you the strength, flexibility, and sleek look that production pros demand.

If you’re ready to build something big, impressive, and totally safe—let’s go step-by-step on how to assemble your Global Truss F34 Ground Support System like a true pro.

What You’ll Need

Each of the four towers in this truss system uses the following components:

• (1X) 44BS-1 – Ground Support Base

• (4X) GT-492145-1 – Outrigger with Stabilizer Arm

• (1X) GT-BLOCK – Sleeve Block

• (1X) GT-TOP/CM – Top for Chain Motor

• (2X) SHACKLE 5/8" – 5/8-inch Steel Shackle (Max Load 3-1/4 Tons)

• (1X) WIREROPE9 – 9 ft. Round Sling with Aircraft Cable Inside

• (2X) HINGE/M12-L/88MM – Left 88mm Hinge

• (2X) HINGE/M12-R/88MM – Right 88mm Hinge

• (1X) Global Truss F34 12" Aluminum Box Truss 1.64 ft.

• (2X) Global Truss F34 12" Aluminum Box Truss 13.12 ft.

The top horizontal structure connecting all four towers forms a perfect 28.84 ft square using:

• Eight (8) Global Truss 12" F34 Box Truss 13.12 ft. pieces (two per side) connected to the GT-Blocks (Sleeve Blocks).

(Note: CHAIN HOIST30 - 1 Ton, 30 ft. Manual Chain Hoist is not included in the total package price as it’s currently out of stock.)

Step 1: Set Your Foundation

Start by laying out the 44BS-1 Ground Support Bases in a perfect 28.84 ft square area. Measure twice, because the precision of your base layout ensures your tower structure stays stable and perfectly aligned.

Attach the four GT-492145-1 Outriggers with Stabilizer Arms to each base. These are the legs that give your structure that critical lateral support. Tighten all connections securely so your base won’t budge when your truss tower starts to rise.

Step 2: Build the Tower Bases

On each base, connect one Global Truss 12" Aluminum Box Truss 1.64 ft. vertically. This short truss segment serves as the starting leg for your tower and will sit right under the GT-BLOCK Sleeve Block.

Now, slide your GT-BLOCK Sleeve Block over the 1.64 ft truss. This block will travel up and down the tower later on when you lift your top structure using a chain hoist or manual winch.

Step 3: Add the Hinges and Vertical Trusses

On top of the 1.64 ft truss (inside the GT-BLOCK), connect your Left and Right 88mm Hinges (HINGE/M12-L & R). These are crucial — they let your tower tilt safely forward during the assembly process, making it easier to attach the upper trusses before raising the system upright.

Then, connect two Global Truss 13.12 ft Aluminum Box Trusses vertically on top of the hinge assembly. You’ll now have one impressive 27.88 ft tower per corner.

Repeat this process for all four towers.

Step 4: Assemble the Top Horizontal Structure on the Ground

Before lifting anything, assemble the top square truss structure on the ground.

Each side of the square will be two 13.12 ft trusses connected together, totaling 28.84 ft per side. Connect each corner to a GT-BLOCK Sleeve Block that’s already on your four tower bases.

Make sure all truss pins, bolts, and safety clips are locked tightly. The top square truss is what ties all four towers together—it’s the heart of your Global Truss F34 Ground Support System.

Step 5: Lift and Secure the Structure

Now comes the exciting part! Attach your WIREROPE9 sling and SHACKLE 5/8" hardware to the GT-TOP/CM and the chain hoist (manual or motorized).

Carefully start raising the GT-BLOCKS to lift the entire top square truss off the ground. This process will gradually bring your system upright. Make sure you have enough hands on deck—lifting a truss system of this size is a team effort.

Once each tower is fully upright, lock the hinges, tighten the outriggers, and ensure every joint is solid. You’ve just erected one of the strongest and most reliable multi-tower trussing systems available today.

Step 6: Final Adjustments and Safety Checks

Before loading any lights, LED walls, or sound gear, double-check:

• All pins, bolts, and clips are secured.

• The outriggers are locked and tightened.

• Each GT-BLOCK moves smoothly and evenly when tested.

• The ground support bases are stable and level.

When everything checks out, you’re ready to mount your lighting truss, DJ truss, stage truss, or display booth truss gear with total confidence.

Why Choose Global Truss F34 Systems?

Because professionals trust them. The Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System isn’t just a structure—it’s a statement of strength and reliability. Whether you’re setting up portable stages, concert trussing, trade show booths, or event lighting rigs, this aluminum lighting truss system delivers unmatched durability, quick setup, and sleek, professional appeal.

Built from lightweight yet tough aluminum, the F34 series combines portability with load-bearing power—perfect for DJ lighting truss, stage trussing, and large-scale events.

Order Your Complete Global Truss F34 Multi-Tower System at Famous Stages!

At FamousStages.com, we make it easy to get all your Global Truss, lighting truss, DJ truss, and stage truss gear in one place. From portable stages to display booth truss systems, we carry everything professionals need to make their event setups stand tall and shine bright.

Don’t wait—your next big stage deserves the best support.
👉 Shop the Global Truss F34 Multi-Tower Ground Support System today at FamousStages.com and take your productions to the next level!

🌟 Featured Product Spotlight: Global Truss F34 Ground Support System

Looking to take your event setup to professional heights? The Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System is your ultimate solution for stage truss, lighting truss, and DJ truss applications.

Built from high-grade aluminum lighting truss, this system is designed for serious productions — from concert stages and music festivals to trade show booths and display booth truss systems. With its durable F34 square truss design, precision sleeve blocks, and adjustable outriggers, you get unbeatable stability and versatility.

At Famous Stages, we stock everything you need for your truss setup — from portable stages to ground support truss systems, stage trussing, DJ lighting truss, and all Global Truss accessories. Whether you’re rigging lights, LED panels, or banners, we’ve got you covered with trusted quality and fast nationwide shipping.

👉 Shop now at FamousStages.com and discover why professionals choose us for all their Global Truss, lighting truss, and stage trussing needs!

❓ Frequently Asked Questions About the Global Truss F34 Multi-Tower Ground Support System

1. What is a Global Truss F34 Ground Support System used for?

The Global Truss F34 Ground Support System is designed to support large-scale stage truss, lighting truss, and DJ truss setups. It’s perfect for concerts, festivals, trade shows, and conventions where heavy lighting or LED video walls need secure overhead rigging.

2. How tall is the Global Truss F34 27.88-ft tower?

Each tower in this Global Truss ground support system stands approximately 27.88 feet high when fully assembled, providing exceptional clearance for lighting truss, banners, and video walls in professional stage and event environments.

3. Can I use the Global Truss F34 system for indoor and outdoor events?

Yes! The F34 aluminum lighting truss is built from high-grade, corrosion-resistant aluminum, making it ideal for both indoor and outdoor applications — from portable stages and DJ trussing setups to outdoor concert rigging and trade show displays.

4. What components are included in the Global Truss F34 Ground Support package?

Each tower comes with a ground support base, outriggers, GT-BLOCK sleeve block, hinges, shackles, wire rope sling, and F34 truss segments (13.12 ft and 1.64 ft). The top horizontal truss frame is built using two 13.12-ft F34 trusses per side, creating a 28.84-ft square.

5. Where can I buy the complete Global Truss F34 Ground Support System?

You can purchase the Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System directly from FamousStages.com — your one-stop shop for Global Truss, lighting trussing, DJ truss, display booth truss, and portable stages. We offer expert support, fast delivery, and unbeatable prices!

6. Is assembly complicated for first-time users?

Not at all! While it’s a professional-grade system, the Global Truss F34 Ground Support System is designed for easy setup using standard truss connection hardware. With a small crew and careful alignment, you can assemble your stage trussing safely and efficiently in just a few hours.

🏁 Final Tip: Build Smart, Build Strong with Global Truss

If you’re serious about creating a professional stage or lighting setup that stands out and stands strong, trust Global Truss and Famous Stages to deliver the best stage truss systems on the market.
👉 Visit FamousStages.com to explore our full collection of Global Truss, lighting truss, and ground support trussing systems today!

When it comes to big productions, you need big gear. Whether you’re building a concert stage truss, a DJ lighting truss rig, or a trade show booth truss setup that commands attention, the Global Truss 19' x 19' x 18.04' Multi-Tower Ground Support System is the powerhouse structure that gets it done.

This system is built for serious event professionals who need reliability, safety, and that clean polished look only aluminum truss and professional stage trussing can provide. Let’s walk through exactly how to assemble this impressive system—step by step.

Materials Included in Each Tower

Each of the 4 towers comes with:

• 1x 44BS-1 – Ground Support Base

• 4x GT-492145-1 – Outrigger with Stabilizer Arm

• 1x GT-BLOCK – Sleeve Block

• 1x GT-TOP/CM – Top for Chain Motor

• 2x SHACKLE 5/8 – 5/8-inch Steel Shackle (Max Load 3-1/4 Tons)

• 1x WIREROPE9 – 9 FT. Round Sling with Aircraft Cable Inside

• 2x HINGE/M12-L/88MM – Left 88mm Hinge

• 2x HINGE/M12-R/88MM – Right 88mm Hinge

• 1x Global Truss SQ-4110 12" Aluminum Box Truss 1.64 ft.

• 2x Global Truss SQ-4113 12" Aluminum Box Truss 8.2 ft.

For the top rectangular structure (that connects all four towers):

• 8x Global Truss SQ-4113 12" Aluminum Box Truss 8.2 ft. (2 per side, connected by GT-BLOCK Sleeve Blocks at the four corners).

(Note: The CHAIN HOIST30 – 1 Ton, 30 ft. Manual Chain Hoist is usually included, but is currently out of stock and not part of this package.)

Step 1: Setting the Foundation

Every great stage truss system starts from the ground up.

1. Place a 44BS-1 Ground Support Base at each corner of your 19' x 19' footprint.

2. Attach the GT-492145-1 Outriggers with Stabilizer Arms to each base. These keep your towers stable and prevent unwanted wobbles as the system goes vertical.

This base setup ensures your lighting truss structure will remain steady once the towers and top frame are lifted.

Step 2: Building the Towers

Here’s how to build each tower to full 18.04 ft. height:

1. Place the 1.64 ft. Global Truss SQ-4110 aluminum box truss vertically on top of the base.

2. Slide the GT-BLOCK Sleeve Block down over this 1.64 ft. truss section. This piece is crucial—it’s what connects your tower to the top truss square later.

3. On top of the 1.64 ft. truss (inside the sleeve block), connect your hinges (2x left + 2x right, 88mm). These allow you to tilt the tower safely when raising it.

4. Stack two 8.2 ft. Global Truss SQ-4113 aluminum box trusses above the hinges to build height.

5. Cap it all with the GT-TOP/CM Top for Chain Motor.

Now you’ve got one completed 18.04 ft. stage truss tower. Repeat for all four corners.

Step 3: Building the Top Horizontal Truss Square

Before raising the towers upright, assemble the top structure on the ground:

• Lay out two 8.2 ft. trusses per side (8 total) to form a 19' x 19' square.

• Connect each side at the corners using the GT-BLOCK Sleeve Blocks on the towers.

• Once connected, you’ve got your complete top horizontal lighting truss frame, ready to fly.

This is the part that will hold your DJ truss lighting, LED walls, or banners—making your setup look as professional as it gets.

Step 4: Raising the System

Now it’s time for the lift!

1. With enough crew support, tilt each tower upright using the hinges for controlled movement.

2. Lock the towers in place and make sure the outriggers with stabilizer arms are firmly tightened.

3. Use your shackles and 9 ft. round sling for safe rigging connections.

4. If you have a chain motor (or manual chain hoist), connect it to the GT-TOP/CM and raise the sleeve blocks, lifting the entire top square to your desired height.

At this point, your multi-tower ground support stage truss system is standing strong and ready for action.

Why This Ground Support System is a Game-Changer

• Professional-Grade: Built from Global Truss aluminum lighting truss, known for its lightweight yet rugged durability.

• Versatile: Supports stage truss lighting, LED walls, audio gear, banners, or scenic elements.

• Modular Design: Breaks down for easy transport and quick reassembly.

• Event-Ready: Perfect for concerts, festivals, corporate productions, DJ truss setups, and trade show booth truss displays.

Ready to Elevate Your Event?

The Global Truss 19' x 19' x 18.04' Multi-Tower Ground Support System isn’t just a structure—it’s peace of mind. With it, your gear is safe, your stage looks professional, and your production stands out from the crowd.

👉 Order today at FamousStages.com—your #1 destination for stage truss, lighting truss, DJ trussing, aluminum truss, aluminum lighting truss, portable stages, display booth truss, and convention booth truss systems at unbeatable prices.

If you’re in the live production, trade show, or entertainment world, you know that a strong and reliable stage truss system is the backbone of any event. The Global Truss 20.64’ x 20.64’ Multi-Tower Ground Support System is one of the most versatile solutions for creating a safe, professional structure that can hold lighting, video walls, banners, and sound equipment. In this guide, we’ll walk you through exactly how to assemble this lighting truss system from the ground up—no shortcuts, just the full process with all the right parts.

Whether you’re setting up a DJ truss for a festival, a trade show booth truss for an expo, or a display booth truss for a corporate event, this build is your foundation for success.

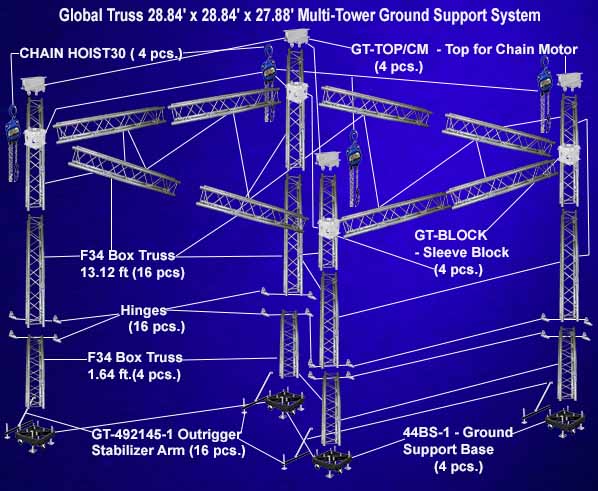

Materials Needed (Per Tower)

Each of the four towers in this global truss ground support system requires the following components:

• 1x CHAIN HOIST30 – 1 Ton, 30 ft. Manual Chain Hoist (currently out of stock, excluded from total package price)

• 1x 44BS-1 – Ground Support Base

• 4x GT-492145-1 – Outrigger with Stabilizer Arm

• 1x GT-BLOCK – Sleeve Block (1.3 ft square)

• 1x GT-TOP/CM – Top for Chain Motor

• 2x SHACKLE 5/8 – 5/8-inch Steel Shackle (Max Load 3-1/4 Tons)

• 1x WIREROPE9 – 9 ft. Round Sling with Aircraft Cable Inside

• 2x HINGE/M12-L/88MM – Left 88mm Hinge for Ground Support System

• 2x HINGE/M12-R/88MM – Right 88mm Hinge for Ground Support System

• 1x Global Truss F34 12" Aluminum Box Truss 1.64 ft.

• 2x Global Truss F34 12" Aluminum Box Truss 9.02 ft.

Top Horizontal Trusses

• 8x Global Truss F34 12" Aluminum Box Truss 9.02 ft. (2 for each side connected in between GT-BLOCKs)


Step-by-Step Assembly Guide

Step 1: Position the Bases

Lay out your 44BS-1 Ground Support Bases in a square formation, approximately 20.64 ft x 20.64 ft apart. This defines the footprint of your system. Attach the GT-492145-1 Outriggers with Stabilizer Arms to each base. These stabilizers are critical to keeping your stage trussing safe and steady.

Step 2: Build the First Section of Each Tower

On top of each base, connect a 1.64 ft F34 aluminum truss. This short segment acts as the starter section. Next, slide the GT-BLOCK Sleeve Block over the 1.64 ft truss. The block will eventually support and raise your lighting truss grid.

Step 3: Add Hinges and Vertical Trusses

Attach the M12 Left and Right Hinges on top of the 1.64 ft truss. Once the hinges are secured, connect two 9.02 ft F34 truss segments vertically above them. This forms the main tower shaft.

Step 4: Cap the Towers

Place the GT-TOP/CM Top for Chain Motor at the upper end of each tower. This piece allows you to safely attach your chain hoists and rigging equipment. Add the shackles and round sling where needed for motor and load attachment.

Each tower should now stand approximately 19.68 ft tall, giving you the required working height for your horizontal grid.

Step 5: Assemble the Top Horizontal Truss Grid

On the ground, pre-build the square top frame using:

• Two F34 9.02 ft truss segments per side

• Connected in the middle by a GT-BLOCK Sleeve Block (1.3 ft square)


This configuration gives each side a total length of 20.64 ft, resulting in a perfect square truss grid measuring 20.64 ft x 20.64 ft.

Step 6: Lift and Secure the Grid

With the help of your crew and chain hoists, attach the horizontal grid to each GT-BLOCK on the towers. Use the chain motors (when available) or manual hoists to carefully raise the grid to your desired height. Make sure all corners are level and locked in place.

Why Choose This System?

• Built from global truss F34 aluminum truss, making it strong yet lightweight.

• Modular design allows you to expand or reconfigure easily.

• Perfect for portable stages, DJ lighting truss setups, trade show booth truss, convention booth truss, and display booth truss.

• Provides a professional, polished look that impresses clients and audiences alike.


Final Thoughts

The Global Truss 20.64’ x 20.64’ Multi-Tower Ground Support System is the ultimate solution when you need strength, safety, and flexibility for your productions. From festivals to corporate events, this stage truss system ensures your lighting truss and equipment are supported with rock-solid reliability.

At famousstages.com, we stock everything you need—from DJ trussing to aluminum lighting truss—so you can build with confidence and get your show on the road.

Introduction

Welcome to FamousStages.com, your go-to destination for high-quality stage truss systems, ground support structures, and professional production gear. Today, we’ll guide you step by step through the assembly of a Global Truss GT1476 Ground Support System, built with four 14.76 ft towers and a 15.72 ft x 15.72 ft adjustable top truss.

This structure is perfect for concerts, trade shows, corporate events, and productions where safety, durability, and adjustability are key. Let’s get started!

Materials Used

4X GT1476 Ground-Support-System 14.76 ft (each tower includes):

• 1X 44BS-1 – Ground Support Base

• 4X GT-492145-1 – Outrigger with Stabilizer Arm

• 1X GT-BLOCK – Sleeve Block

• 1X GT-TOP/CM – Top for Chain Motor

• 2X SHACKLE 5/8 – 5/8-inch Steel Shackles (Max Load 3-1/4 Tons)

• 1X WIREROPE9 – 9 ft Round Sling with Aircraft Cable Inside

• 2X HINGE/M12-L/88MM – Left 88mm Hinge for Ground Support System

• 2X HINGE/M12-R/88MM – Right 88mm Hinge for Ground Support System

• 1X Global Truss F34 12" Aluminum Box Truss – 1.64 ft

• 1X Global Truss F34 12" Aluminum Box Truss – 13.12 ft

Horizontal Trusses (Top Grid):

• 4X Global Truss F34 12" Aluminum Box Truss – 13.12 ft (to form a 15.72 ft x 15.72 ft square top)

Optional (Currently Out of Stock):

• 1 Ton Manual Chain Hoist (30 ft) or Electric Chain Hoist

Step 1: Preparing the Ground Support Bases

1. Lay out the four 44BS-1 bases in a square configuration measuring roughly 15.72 ft x 15.72 ft.

2. Ensure the bases are level, stable, and positioned correctly.

3. Attach the outriggers with stabilizer arms (GT-492145-1) to each base. These provide essential balance and safety.

Step 2: Building the Towers

1. Insert a 1.64 ft Global Truss Box Truss vertically into each base.

2. Slide the GT-Sleeve Block over the 1.64 ft truss so it can move freely up and down later.

3. Attach the hinges (HINGE/M12-L/88MM and HINGE/M12-R/88MM) on top of the 1.64 ft truss.

4. Secure a 13.12 ft Global Truss Box Truss above the hinges, locking it into place. This creates the full 14.76 ft tower height with the pivot point for safe erection.

5. Mount the GT-TOP/CM (Top for Chain Motor) on top of each vertical truss.

Now, each tower is:
Base → 1.64 ft truss → hinges → 13.12 ft truss → sleeve block → top for chain motor.

Step 3: Assembling the Top Horizontal Truss Grid

1. On the ground, use four 13.12 ft F34 trusses as sides in a square.

   • Each side = 13.12 ft.  These are connected to the four corners of the GT-Blocks-Sleeve Blocks(1.3 ft square blocks each.)

   • Total square size = 15.72 ft x 15.72 ft (with Sleeve Blocks as connectors).

2. Use conical couplers, pins, and safety clips to ensure secure, load-rated connections.

3. This square grid will be lifted later to sit at the top with the four sleeve blocks.

Step 4: Attaching the Horizontal Trusses to the Towers

1. Position the horizontal truss grid near the bases of the towers.

2. Connect each 13.12 ft Box Truss to the GT-Sleeve Block on each tower.

3. Ensure all four sleeve blocks are properly pinned to the corners of the truss grid.

Step 5: Lifting the Structure

1. Normally, a 1 Ton Manual or Electric Chain Hoist (30 ft) would be used to lift the top grid. (Currently out of stock, but must be factored into your future setup).

2. The hoists attach to the GT-TOP/CM at each tower.

3. Carefully raise the horizontal top grid to the desired working height.

4. Once raised, lock the sleeve blocks into place with the proper safety pins.

Step 6: Final Stabilization & Safety Checks

1. Adjust the outriggers and stabilizer arms until each tower is solid and stable.

2. Double-check all pins, clips, hinges, shackles, and sling connections.

3. Ensure the entire system is square, level, and properly balanced.

4. Inspect for any loose fittings or misaligned hardware before loading lights, speakers, or video walls.

Conclusion

By following these steps, you’ve successfully assembled a Global Truss GT1476 Ground Support System with four 14.76 ft towers and a 15.72 ft x 15.72 ft adjustable top truss. This setup delivers a strong, versatile, and professional-grade foundation for any production — from live concerts and DJ stages to trade show booths and convention displays.

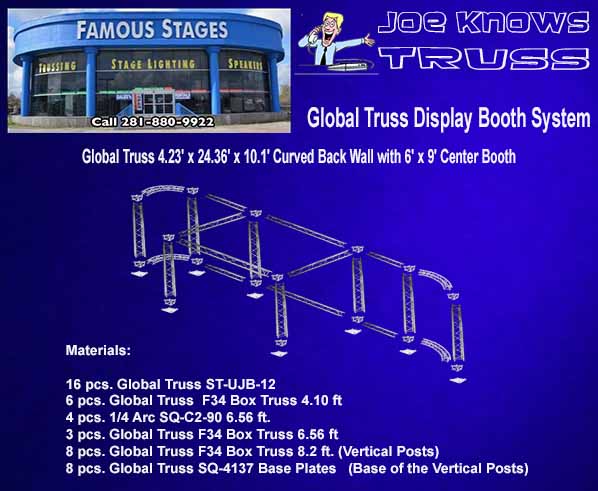

If you’ve been dreaming of a show-stopping trade show booth or a sleek display wall for your next big event, let’s talk trussing. And not just any trussing—today we’re building the Global Truss 4.23' x 34.96' x 10.1' Curved Back Wall with 18.3' x 18.3' Center Booth.

This setup is bold, professional, and versatile. It screams “Come check us out!” whether you’re rocking it at a trade show, a convention, or even a high-profile DJ setup. The best part? With the right materials and a little guidance, you can make this happen yourself.

Grab your coffee, roll up your sleeves, and let’s get into the build.

Materials You’ll Need

To pull this masterpiece together, here’s your checklist (all available at famousstages.com):

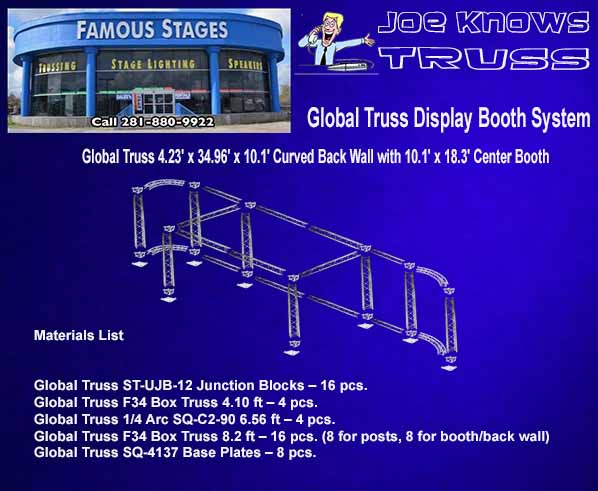

1. Global Truss ST-UJB-12 Junction Blocks – 16 pcs.

   • 2 pcs. each for Posts 1–8 (top and bottom).

2. Global Truss F34 Box Truss 4.10 ft – 4 pcs.

   • 2 pcs. between Post 2 and Post 3 (top & bottom).

   • 2 pcs. between Post 4 and Post 5 (top & bottom).

3. Global Truss 1/4 Arc SQ-C2-90 6.56 ft – 4 pcs.

   • 2 pcs. (top & bottom) for the left wing curve (Post 1 → Post 2).

   • 2 pcs. (top & bottom) for the right wing curve (Post 5 → Post 6).

4. Global Truss F34 Box Truss 8.2 ft – 10 pcs.

   • 4 pcs. for the back of the center booth (Post 3 → Post 4, top & bottom).

   • 2 pcs. for the top front of the center booth (Post 7 → Post 8).

   • 2 pcs. for the top left side of the center booth.

   • 2 pcs. for the top right side of the center booth.

5. Global Truss F34 Box Truss 8.2 ft – 8 pcs.

   • Vertical posts (Posts 1–8).

6. Global Truss SQ-4137 Base Plates – 8 pcs.

   • 1 base plate for each post.

7. Global Truss ST-UJB/C-12 1/2 Coupler with Alien Bolt (4 Pack) - 12  pcs.

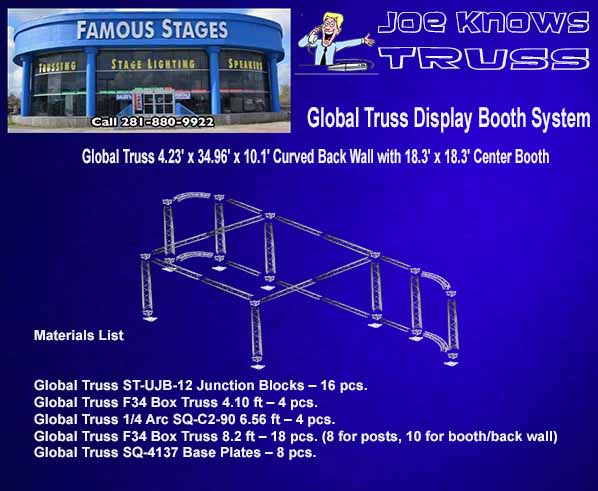

Step 1: Set Your Foundation

Every great structure starts with a solid foundation. Place your 8 SQ-4137 Base Plates evenly along your footprint:

• Posts 1–6 will create the long curved back wall (34.96 ft).

• Posts 7 & 8 will form the front corners of your 18.3’ x 18.3’ center booth.

Attach the ST-UJB-12 junction blocks to the base of each post  and on the top of each 8.2 ft Box Truss vertical post..

Step 2: Raise the Vertical Posts

Time to bring this baby to life! Secure each 8.2 ft Global Truss F34 Box Truss vertically onto your base plates, locking them into the junction blocks. That’s 8 posts in total.

Pro tip: Have a buddy (or three) help you lift and steady while you bolt everything down. Stage trussing may look lightweight, but safety is key.

Step 3: Build the Curved Back Wall

This is where the “wow factor” starts.

• On the left wing, connect two 1/4 Arc SQ-C2-90 trusses (top & bottom) between Post 1 and Post 2.

• On the right wing, repeat with two more 1/4 Arc trusses between Post 5 and Post 6.

Next, add the 4.10 ft F34 Box Trusses (top & bottom) between Post 2 and Post 3, and again between Post 4 and Post 5.

Finally, connect your vertical Posts 3 and 4 with 8.2 ft F34 trusses (top & bottom) to finish off the back wall span.

You now have a smooth, professional curved back wall that stretches almost 35 feet across.

Step 4: Assemble the Center Booth

Now let’s create the 18.3’ x 18.3’ booth structure inside the wall.

• Connect Post 3 to Post 4 (back of the booth) using two 8.2 ft F34 trusses (top & bottom).

• Move to the front: connect Post 7 to Post 8 with another 8.2 ft truss on top.

• For the sides, link Post 3 to Post 7 and Post 4 to Post 8 using 8.2 ft trusses on top.

This gives you a solid, square center booth—perfect for banners, lighting truss mounts, DJ setups, or display walls.

Step 5: Lock, Load, and Light It Up

Double-check all junctions, tighten your couplers, and make sure every truss is aligned. Once it’s secure, you’ve got yourself a show-ready Global Truss display booth truss system.

From here, the sky’s the limit. Add LED walls, mount your lighting truss fixtures, or hang banners that shout your brand across the hall. The aluminum truss system is lightweight, strong, and flexible enough to evolve with your needs—whether that’s DJ lighting truss, trade show booth truss, or a custom display booth truss for conventions.

Why Buy from Famous Stages?

At famousstages.com, we make it easy to bring your vision to life. We’ve got the Global Truss, stage truss, lighting trussing, DJ truss, aluminum lighting truss, and even portable stages to make your production shine. And because we know budgets matter, we deliver unbeatable prices without cutting corners on quality.

Final Thoughts

Building a Global Truss curved back wall with a center booth is like giving your event a superhero cape—it makes you stand taller, look sharper, and attract more people to your space. With this setup, your brand won’t just show up—it will dominate the room.

So what are you waiting for? Check out famousstages.com today and start building the booth of your dreams.

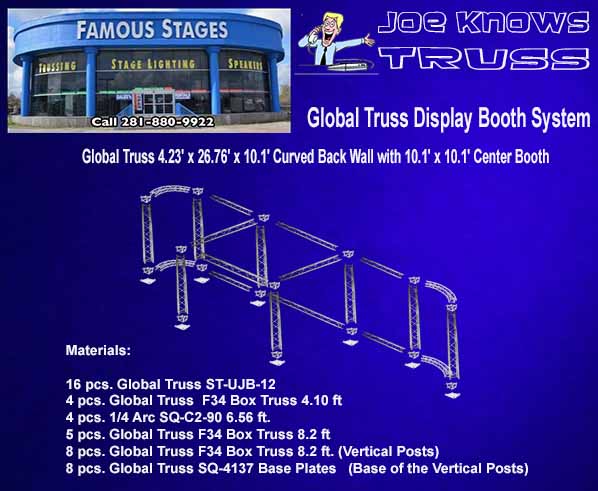

So, you’re ready to take your trade show booth, concert setup, or event staging to the next level? Then let’s talk about one of the most eye-catching and professional setups you can build: the Global Truss 4.23' x 34.96' x 10.1' Curved Back Wall with 10.1' x 18.3' Center Booth.

This system combines strength, portability, and sleek design to give you a stunning stage truss display booth that turns heads at conventions, concerts, and trade shows. The best part? With the right gear and a little teamwork, you can assemble it yourself.

Let’s break it down step by step.

Materials You’ll Need

Here’s your shopping list for this build (all available at famousstages.com):

• Global Truss ST-UJB-12 Junction Blocks – 16 pcs.

• Global Truss F34 Box Truss 4.10 ft – 4 pcs.

• Global Truss 1/4 Arc SQ-C2-90 6.56 ft – 4 pcs.

• Global Truss F34 Box Truss 8.2 ft – 16 pcs. (8 for posts, 8 for booth/back wall)

• Global Truss SQ-4137 Base Plates – 8 pcs.

• Global Truss ST-UJB/C-12 1/2 Coupler with Alien Bolt (4 Pack) - 12  pcs.

Step 1: Lay the Foundation

Every strong stage truss system starts at the ground. Place your Global Truss SQ-4137 base plates where each vertical post will stand—Posts 1 through 8.

Think of this like planting the cornerstones of a house. Once your bases are squared away, mount each vertical F34 8.2 ft truss upright onto the plates. These lighting truss posts will be the backbone of your structure.

At this point, your eight posts are standing tall and proud, ready to be connected.

Step 2: Add the Junction Blocks

Attach ST-UJB-12 junction blocks at the top and bottom of each post. These blocks are the connectors that make this modular aluminum truss system possible.

This step ensures your dj truss and booth sections will be rock-solid once the rest of the aluminum lighting trussing is in place.

Step 3: Build the Curved Back Wall

Start by connecting the 1/4 Arc SQ-C2-90 trusses between:

• Post 1 and Post 2 (top and bottom) – forming the left curved wing.

• Post 5 and Post 6 (top and bottom) – forming the right curved wing.

Now add the F34 4.10 ft trusses:

• Between Post 2 and Post 3 (top and bottom).

• Between Post 4 and Post 5 (top and bottom).

Finally, connect Posts 3 and 4 at the back using two 8.2 ft trusses on top and bottom.

Boom—you’ve now created the stunning curved back wall structure with professional-grade stage trussing.

Step 4: Assemble the Center Booth

Next, let’s make that 10.1' x 18.3' center booth.

• Place Posts 7 and 8 parallel in the front section of the booth.

• Connect the top front truss (8.2 ft) across Posts 7 and 8.

• Add the side trusses (one left, one right, 8.2 ft each) connecting back to Posts 3 and 4.

• Finally, connect another pair of 8.2 ft trusses across the back of the booth (between Posts 3 and 4).

At this stage, you’ve got a professional, rigid display booth truss sitting in the middle of your curved wall.

Step 5: Lock It, Load It, and Light It Up

Double-check your fittings, bolts, and safety pins. Once everything is tight, this Global Truss curved back wall with center booth is ready for business.

Want to make it shine? Add dj lighting truss, moving heads, LED walls, or banners across the structure. The combination of aluminum lighting truss and creative lighting will transform your booth into a jaw-dropping showcase.

Why This Setup Rocks

✔ Professional Look: The curved back wall gives your booth a sleek, modern vibe.
✔ Modular & Reusable: This is aluminum truss, so it’s lightweight, strong, and can be reconfigured for different events.
✔ Perfect for DJs & Exhibitors: Works equally well as a dj truss rig, a convention booth truss, or a trade show booth truss.
✔ Built to Last: Global Truss F34 is engineered for touring, trade shows, and permanent installs.

Final Thoughts

When you want to impress at a trade show, concert, or event, nothing says “pro” like a Global Truss curved back wall with a center booth. With the right gear, a few extra hands, and maybe a ladder or two, you’ll have this stage truss display up in no time.

👉 Ready to build your own? Head over to famousstages.com to grab your stage truss, dj truss, lighting truss, and all the aluminum trussing you need.

Your next show-stopping booth is just a few clicks away!
