Are you gearing up for a big trade show or convention? Having a booth that stands out is crucial to attracting attention and making a lasting impression. The Global Truss F34 10x40 ft Convention Booth Display System is your perfect solution. It's not just durable and reliable; it's also incredibly eye-catching! Follow this step-by-step guide to assemble your display system with ease and confidence.

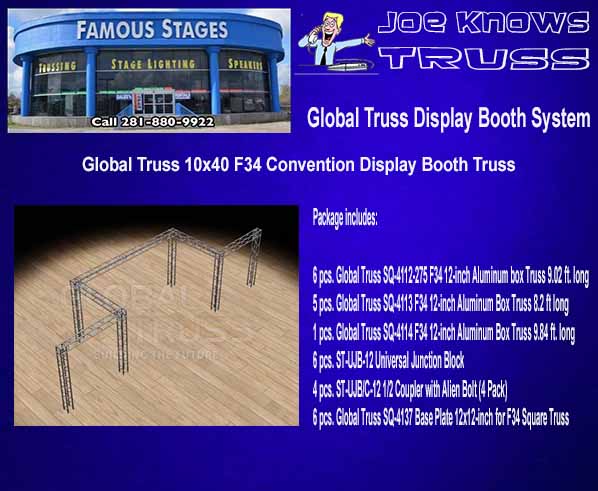

Materials Needed

Before we dive into the assembly, let’s make sure you have everything you need. Here’s your checklist:

• Global Truss F34 Truss Sections:
• 6 pcs. Global Truss SQ-4112-275 F34 12-inch Aluminum Box Truss 9.02 ft long (for vertical posts)
• 5 pcs. Global Truss SQ-4113 F34 12-inch Aluminum Box Truss 8.2 ft long (for horizontal trusses)
• 1 pc. Global Truss SQ-4114 F34 12-inch Aluminum Box Truss 9.84 ft long (for horizontal truss)
• Base Plates:
• 6 pcs. Global Truss SQ-4137 Base Plate 12x12-inch for F34 Square Truss
• Connectors:
• 6 pcs. ST-UJB-12 Universal Junction Block
• 4 pcs. ST-UJB/C-12 1/2 Coupler with Alien Bolt (4 Pack)
• Tools:
• Hammer or mallet, level, and socket wrench
• Measuring tape

Step 1: Prepare Your Space

First things first: create a clean, flat workspace. Lay out all your truss components and tools so that everything is within reach. Preparation is key to a smooth assembly process!

Step 2: Assemble the Base

1. Position the Base Plates: Place the 6 base plates where you want your booth to stand. The 4 front posts should be spaced 10 feet, 20 feet, and 10 feet apart. Position the 2 back posts 10 feet behind and 20 feet apart in the middle of the 40 feet span.
2. Attach the Vertical Trusses: Secure the 6 vertical truss sections (SQ-4112-275) to the base plates using the connectors and bolts. Make sure they’re tightly secured for maximum stability.

Step 3: Build the Middle Horizontal Trusses

1. Connect Middle Horizontal Trusses: Form a rectangle approximately 10 feet wide x 20 feet long with an open front side. Use the 9.84 ft truss (SQ-4114) and one 8.2 ft truss (SQ-4113) for the longer back side. Use Universal Junction Blocks (ST-UJB-12) at the corners.
2. Connect Shorter Sides: Attach two 8.2 ft trusses (SQ-4113) as the left and right sides of the front open rectangular structure.

Step 4: Connect the Extended Front Horizontal Trusses

1. Attach Front Extension Trusses: Connect the remaining 2 horizontal trusses (SQ-4113) to the two corners of the middle rectangle, extending the length of the structure by 10 feet each at the front left and front right of the middle structure.
2. Use Junction Blocks: Secure these connections with the Universal Junction Blocks (ST-UJB-12).

Step 5: Raise the Frame

With the help of a few friends and some step ladders, carefully lift the assembled horizontal frame and put it on top of the six vertical posts. Ensure that all connections are secure and stable. Teamwork makes this step much easier and more fun!

Step 6: Secure the Top Trusses

1. Attach the Top Horizontal Trusses: Once the frame is raised, begin attaching the top horizontal trusses to the vertical trusses using the Universal Junction Blocks.
2. Reinforce the Corners: Double-check all the corner blocks and connectors to ensure they are securely fastened.

Step 7: Final Adjustments

1. Level the Booth: Use a spirit level to make sure the entire structure is level and stable.
2. Tighten All Connections: Go around the entire booth and tighten all bolts and connectors to ensure maximum stability.

Step 8: Add Lighting and Accessories

1. Install Lighting Truss: Attach any lighting trusses to the top of the frame as required for your display.
2. Set Up DJ Truss: If your booth includes a DJ setup, secure the DJ truss table or structure in the designated area.
3. Mount Display Elements: Attach any banners, signs, or other display elements to the truss structure. Make your booth shine!

Step 9: Inspect the Booth

Conduct a final inspection to ensure that everything is securely fastened and that the booth is safe for use. Make any necessary adjustments before the event starts. You’re almost there!

Conclusion

Assembling the Global Truss F34 10x40 ft Convention Booth Display System is straightforward when you follow these steps. With its durable construction and professional appearance, this booth setup will make a significant impact at any trade show or convention. Imagine the attention and admiration your booth will receive! Happy assembling!
