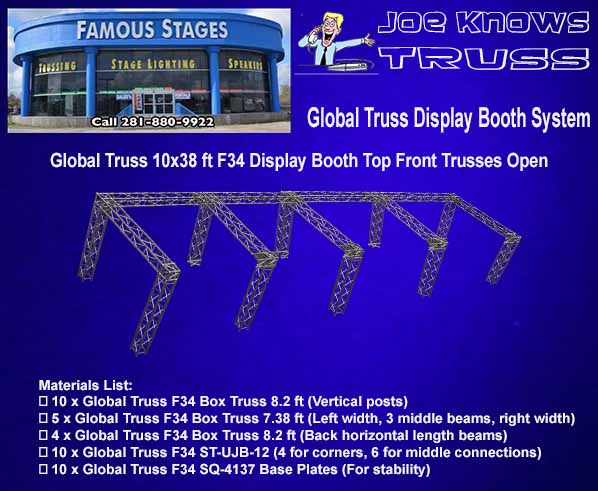

Creating a professional trade show booth with Global Truss F34 is the best way to ensure a strong, lightweight, and modular display. This 10x38 ft trade show booth truss system features an open front top, making it ideal for lighting truss, DJ truss, aluminum truss, and trade show booth displays.

Follow this step-by-step guide to assemble your Global Truss F34 10x38 ft trade show booth.

Materials Needed:

✔ 10 x Global Truss F34 Box Truss 8.2 ft (Vertical posts)
✔ 5 x Global Truss F34 Box Truss 7.38 ft (Left width, 3 middle beams, right width)
✔ 4 x Global Truss F34 Box Truss 8.2 ft (Back horizontal length beams)
✔ 10 x Global Truss F34 ST-UJB-12 (4 for corners, 6 for middle connections)
✔ 10 x Global Truss F34 SQ-4137 Base Plates (For stability)

Step 1: Position the Base Plates

Arrange the SQ-4137 base plates in a 10x38 ft rectangular layout:

1️⃣ Two base plates on the left side, spaced 7.38 ft apart (one at the front, one at the back).
2️⃣ Move rightward 8.2 ft, place another two base plates in the same front-back arrangement.
3️⃣ Move another 8.2 ft rightward, place two more base plates.
4️⃣ Repeat this step two more times, spacing each set 8.2 ft apart until all 10 base plates are set.

Each base plate serves as the anchor for the vertical aluminum truss posts, ensuring stability.

Step 2: Install the Vertical Posts & Junction Blocks

🔹 Attach one Global Truss F34 Box Truss 8.2 ft vertical post to each base plate. These 10 vertical trusses will support the upper truss structure.

🔹 Secure one ST-UJB-12 Universal Junction Block on top of each vertical post. These will serve as the connection points for the horizontal trusses.

Step 3: Connect the Horizontal Back Trusses (38 ft Length)

🔹 On the back side of the 38-ft length, connect each of the four Global Truss F34 Box Truss 8.2 ft horizontal beams between the ST-UJB-12 junction blocks, moving from left to right.

This step completes the back framework of the trade show booth structure.

Step 4: Install the Left, Middle & Right Width Beams (Perpendicular to the Back Truss)

Now, install the 5 Global Truss F34 Box Truss 7.38 ft beams perpendicular to the back truss:

1️⃣ Left Side Beam – Connect one Global Truss F34 Box Truss 7.38 ft between the front-left and back-left ST-UJB-12 corner junction blocks.
2️⃣ First Middle Beam – Connect another 7.38 ft truss between the next pair of ST-UJB-12 junction blocks.
3️⃣ Second Middle Beam – Connect another 7.38 ft truss between the next pair of ST-UJB-12 junction blocks.
4️⃣ Third Middle Beam – Connect another 7.38 ft truss between the next pair of ST-UJB-12 junction blocks.
5️⃣ Right Side Beam – Finally, connect one more 7.38 ft truss between the front-right and back-right ST-UJB-12 corner junction blocks.

These beams perpendicularly reinforce the back structure while keeping the front top open for visibility and accessibility.

Step 5: Final Checks & Stability Test

✅ Ensure all trusses are securely connected at junction blocks.
✅ Tighten all bolts and fasteners.
✅ Check that the structure is level and properly aligned.

Why Choose Global Truss F34 for Your Trade Show Booth?

✔ Heavy-Duty Aluminum Truss – Lightweight yet incredibly strong.
✔ Modular and Expandable – Adjust your booth size as needed.
✔ Professional Look – Ideal for lighting truss, DJ truss, and display booth trusses.
✔ Easy Assembly – No welding required; simply bolt together for quick setup.
