Build It Like a Pro – A Show-Stopping Trade Show Booth in No Time!

Alright, event pros, DJs, and trade show wizards—it's time to build a booth that turns heads and steals the show! Whether you’re showcasing your brand, lighting up a DJ set, or creating a dynamic stage truss structure, this Global Truss F34 10x29 ft system is built for maximum impact and easy assembly.

This isn't just another trade show booth—this is a bold, professional, and rock-solid setup designed for lighting truss displays, DJ trussing, portable stages, and convention booth truss systems. And guess what? You don’t need an engineering degree to put it together!

Let’s get this bad boy built in just five simple steps. Ready? Let’s truss it up! 🔧🔥

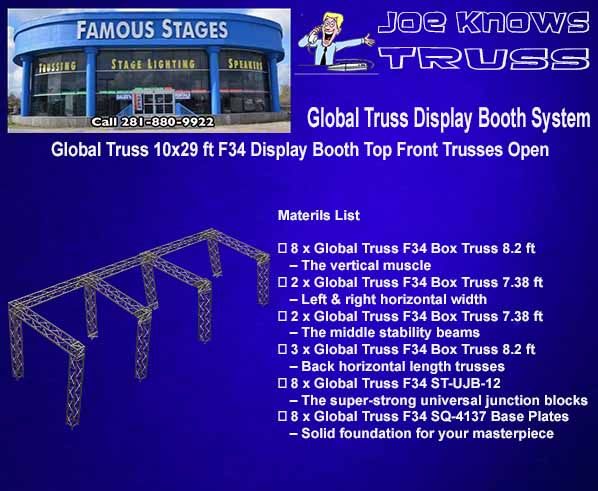

What’s in the Box? (A.K.A. Your Truss Arsenal)

✔ 8 x Global Truss F34 Box Truss 8.2 ft – The vertical muscle 💪
✔ 2 x Global Truss F34 Box Truss 7.38 ft – Left & right horizontal width
✔ 2 x Global Truss F34 Box Truss 7.38 ft – The middle stability beams
✔ 3 x Global Truss F34 Box Truss 8.2 ft – Back horizontal length trusses
✔ 8 x Global Truss F34 ST-UJB-12 – The super-strong universal junction blocks
✔ 8 x Global Truss F34 SQ-4137 Base Plates – Solid foundation for your masterpiece

Step 1: Lay the Foundation – Base Plates Down!

Your booth is only as strong as its foundation, so let’s start with the base plates:

🔹 Left Side: Place two SQ-4137 base plates, spaced 7.38 ft apart (one for the front, one for the back).
🔹 Move 8.2 ft to the right, drop another set of two.
🔹 Move another 8.2 ft rightward, place two more.
🔹 Move one final time (yep, another 8.2 ft) and place the last two base plates.

Now, step back and admire your perfectly spaced 10x29 ft rectangular base. Not bad, right?

Step 2: Go Vertical – Install the Posts & Junction Blocks

Now comes the fun part—watching your booth rise!

🔹 Attach one Global Truss F34 8.2 ft vertical post to each base plate.

🔹 Secure a ST-UJB-12 Universal Junction Block on top of every vertical post.

Boom! You’ve just built the skeleton of your truss system. Already feeling like a pro? You should. 😎

Step 3: Connect the Back Trusses – 29 Feet of Strength

Now, let’s lock in the back of the structure:

🔹 Connect three Global Truss F34 8.2 ft horizontal trusses across the back, linking them between the ST-UJB-12 junction blocks.
🔹 Secure them left to right to create a solid 29 ft-wide back frame.

Why is this important? Because this back truss structure keeps your booth from wobbling, making it rock-solid against any trade show chaos. 🎤💥

Step 4: Install the Left, Middle & Right Beams – Strength Meets Style

Now, let’s bring it all together by installing the top beams that will run perpendicular to the back truss.

🔹 Left Side Beam – Connect a 7.38 ft truss between the front-left and back-left ST-UJB-12 corner junction blocks.
🔹 First Middle Beam – Install a 7.38 ft truss between the first middle ST-UJB-12 junction blocks.
🔹 Second Middle Beam – Add another 7.38 ft truss to the second set of middle ST-UJB-12 junction blocks.

🔹 Right Side Beam – Finally, connect a 7.38 ft truss between the front-right and back-right ST-UJB-12 corner junction blocks.

Now, step back and admire your work. Your structure is now standing strong, balanced, and sleek—with an open front for maximum visibility!

Step 5: The Final Check – Stability is Key!

Before you go full rockstar mode and start setting up lights, banners, or speakers:

✅ Double-check all truss connections – Everything should be tight and secure.
✅ Make sure all vertical posts are straight – No leaning towers here!
✅ Do a little shake test – If it feels solid, you’re good to go.

Congratulations, you’ve built a professional-grade truss booth that’s ready to dominate any event!

Why Choose Global Truss F34 for Your Trade Show Booth?

✔ Rock-Solid Aluminum Truss – Lightweight but built to handle serious weight (lights, banners, speakers—bring it on!).
✔ Quick & Easy Setup – Designed for fast assembly and takedown.
✔ Versatile & Professional – Whether for a DJ setup, trade show booth truss, lighting truss, or convention booth truss, this setup turns heads.
✔ Expandable & Customizable – Add more trusses to expand your setup in the future!

Get Your Global Truss F34 Trade Show Booth from Famous Stages!

You know what they say: Go big or go home! If you’re looking for top-quality aluminum truss, DJ truss, lighting trussing, or display booth truss systems, FamousStages.com has got you covered.

🔹 Dominate your next trade show 🎤
🔹 Build a DJ lighting truss setup that wows 💡
🔹 Create a high-impact booth for your brand 🚀

👉 Order your truss system today and build your booth like a pro!

🔥 Now tell me—are you ready to build a trade show booth that steals the spotlight? Let’s make it happen! 😎
