Hey event pros, production managers, and DIY stage builders! Ready to create an eye-catching display booth truss that screams professionalism and versatility? Today, we’re diving into how to assemble the Global Truss F34 20x20x10 Booth Truss, featuring a sleek 7.51 ft diameter center circle — perfect for that extra wow factor at trade shows, conventions, or any stage setup.

Whether you’re a seasoned pro or new to stage trussing, this guide is your go-to for building a solid, reliable, and visually stunning structure using premium aluminum truss components. Plus, it’s optimized for easy setup and maximum impact — because nobody’s got time for complicated rigs!

Why Choose the Global Truss F34 for Your Next Event?

Before we jump in, let’s talk about why the Global Truss F34 system is the go-to for lighting trussing, dj truss, and convention booth truss needs:

• Lightweight yet sturdy aluminum lighting truss construction for easy transport and durability

• Modular design lets you customize size and shape — perfect for portable stages or display booths

• Compatible with a variety of junction blocks and base plates for flexible configurations

• Great for hanging lighting, screens, banners, or DJ gear with style

Now, let’s get your hands dirty with the actual build!

Materials You’ll Need

For this 20x20 ft booth with a 10 ft height and a center circle of 7.51 ft diameter, gather the following:

Step 1: Build the 7.51 ft Center Circle

Start your assembly by constructing the eye-catching center circle using the SQ-C2-90 6.56 ft curved truss pieces.

• Connect the four arc sections together using four ST-UJB-12 junction blocks positioned between each arc segment.

• This forms a smooth circular truss with a 7.51 ft diameter — a perfect centerpiece for your booth or stage.

This circle is not only stunning but also a strong support frame for lighting or banners hung from above.

Step 2: Attach the Four 4.92 ft Box Trusses

Now, take your four 4.92 ft aluminum box trusses and connect each one to the North, East, South, and West ST-UJB-12 junction blocks of the center circle.

• These straight truss sections extend outward from the circle and will serve as connectors to your vertical posts.

• Make sure each connection is tight and secure — safety first!

Step 3: Erect the Vertical Posts

Grab the four 9.02 ft box trusses to serve as your vertical posts.

• Attach each vertical post to the end of the 4.92 ft trusses you connected to the center circle.

• Secure the top of each vertical post with a ST-UJB-12 junction block.

• On the ground, mount each vertical post base onto the sturdy SQ-4137 base plates to keep your booth rock solid.

Step 4: Finalize the Top Structure

Use the four ST-UJB-12 junction blocks on top of the vertical posts — these go at the ends of the  4.92 ft  Box Truss which are connected to the N-E-S-W ST-UJB-12s in between the arcs of the center circle.

• Connect these top horizontal structure to the tops of the vertical posts to lock the structure together and maintain stability.

• This completes the signature 20x20x10 ft booth truss frame with the central circular highlight.

Why This Setup Works for You

• Flexible Modular Design: This booth truss can be customized with additional lighting trussing or accessories for any event type.

• Portable Stages Ready: Lightweight aluminum truss means you can pack it up and take it anywhere.

• Perfect for DJs & Lighting: Hang your DJ lighting truss or stage lighting with ease using the sturdy center circle.

• Visual Impact: The center circle adds a unique flair that’s sure to draw attention and make your display booth stand out.

Pro Tips for Assembly

• Always use at least 2-3 helpers when lifting and connecting vertical posts. Safety first!

• Double-check all junction blocks and connections before use to prevent wobble.

• Consider adding corner braces for extra rigidity if your setup will be outdoors or heavily loaded.

Ready to Build Your Own Global Truss Booth?

With this step-by-step guide, assembling your Global Truss F34 20x20x10 Booth Truss with a 7.51 ft center circle is easier than ever. Perfect for any convention booth truss, lighting trussing, or dj truss needs, this structure blends function and form.

Head over to famousstages.com to grab these exact trusses and components. Whether you’re outfitting a trade show, concert, or corporate event, the Global Truss F34 system is your ticket to professional, reliable, and eye-catching setups.

If you're ready to elevate your trade show presence, concert stage, or product activation to iconic status, this one’s for you. Introducing the Global Truss 10x14x17 ft Center Arc Booth with Left and Right 10x10 ft Wings — a dazzling display that blends architectural flair with heavy-duty performance. Whether you’re a production manager, touring DJ, or trade show mastermind, this guide will walk you through the step-by-step assembly using top-of-the-line Global Truss F34 components.

Let’s truss up and get started!

🎯 Why Build This Booth?

This configuration gives you:

• A stunning center arch that commands attention at 17 feet tall.

• Two 10x10 ft side wings for extra product displays, sponsor logos, lighting trussing, or audio gear.

• Full aluminum truss construction for portability, strength, and aesthetic impact.

• Compatibility with banners, intelligent lighting, and even lightweight LED video walls.

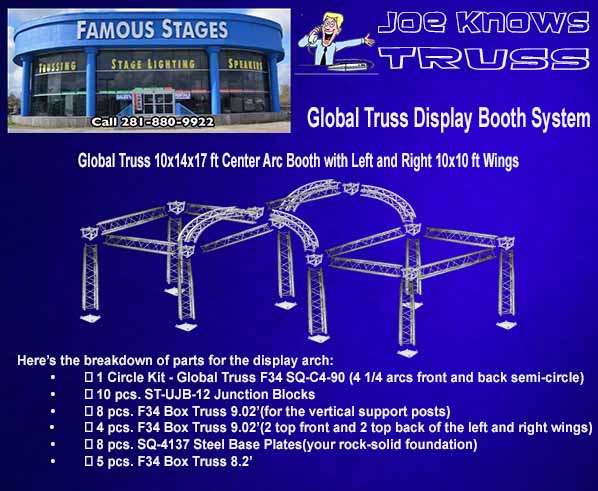

🔧 STEP 1: Construct the 10x14x17 ft Center Arc Booth

We’re starting with the star of the show — the center arch. Here's what you’ll need:

✅ Materials:

• (1) Circle Kit – Global Truss F34 SQ-C4-90
      → 2 pcs. 1/4 Arc for the front + 2 pcs. 1/4 Arc for the back

• (6) ST-UJB-12 Junction Blocks
      → 4 for the four corners of the booth, 2 for connecting the center arc beam

• (4) F34 Box Truss 9.02 ft
      → These will be your tall, proud vertical posts

• (4) SQ-4137 Steel Base Plates
      → For rock-solid footing and easy leveling

• (3) F34 Box Truss 8.2 ft
      → One for each side on top, and one as your center beam


🛠️ Assembly:

1. Lay the foundation: Place all four SQ-4137 Steel Base Plates on level ground in a rectangle (14 ft wide x 10 ft deep).

2. Install verticals: Bolt the F34 9.02 ft box trusses vertically into each base.

3. Connect the top: Use ST-UJB-12 Junction Blocks at the top of each post.

4. Add side trusses: Span the left and right sides with 8.2 ft trusses between the front and back UJBs.

5. Mount the Arc: Connect the front 1/4 circle trusses (forming a half-circle) to the top front UJBs. Repeat for the rear.

6. Top center beam: The final 8.2 ft truss goes between the midpoints of the front and back arcs using the remaining two ST-UJB-12s to form a spine.


And boom — your center arc booth is standing tall, sleek, and oh-so-ready to impress.

➕ STEP 2: Add the Left Wing 10x10 ft Booth

Let’s extend your space and add functionality. This left-side expansion adds a 10x10 booth — perfect for sponsor banners, gear racks, or portable stages.

✅ Materials:

• (2) ST-UJB-12 Junction Blocks

• (2) F34 Box Truss 9.02 ft – for vertical posts

• (2) F34 Box Truss 9.02 ft – for top front and back trusses

• (1) F34 Box Truss 8.2 ft – for the top left side truss

• (2) SQ-4137 Steel Base Plates


🛠️ Assembly:

1. Place base plates parallel to the center booth’s left side, 10 ft apart.

2. Insert the vertical trusses (9.02 ft) into the base plates.

3. Connect to the center booth via the left-side ST-UJB-12s from the main structure.

4. Use two more UJBs at the top of the new verticals to complete the top frame.

5. Finish the roof:
• Front: 9.02 ft truss

• Back: 9.02 ft truss

• Side: 8.2 ft truss connecting to the center structure.


Congratulations — your left wing booth is now part of the action!

➕ STEP 3: Add the Right Wing 10x10 ft Booth

Balance is everything. Time to mirror the left wing and complete this truss masterpiece.

✅ Materials:

• (2) ST-UJB-12 Junction Blocks

• (2) F34 Box Truss 9.02 ft – vertical supports

• (2) F34 Box Truss 9.02 ft – top front and back

• (1) F34 Box Truss 8.2 ft – top right side

• (2) SQ-4137 Steel Base Plates


🛠️ Assembly:

1. Mirror the left-side process on the right side of your center arc booth.

2. Base plates? Check.

3. Vertical trusses? Up and locked in.

4. Junction blocks? Connected to both center booth and wing verticals.

5. Top trusses in place? Your booth now spans over 30 feet wide!


✨ Why This Booth Wows Every Time

• Curved design = visual impact

• Expandable wings = more functional space

• Global Truss F34 system = lightweight, modular, and heavy-duty

• Easily integrates with stage truss, dj trussing, lighting truss, banners, and lightweight AV gear

• Ideal for trade show booth truss, display booth truss, and convention booth truss applications


🛒 Ready to Build This Booth?

Don’t just read about it — build it! Get every part listed in this guide from FamousStages.com — your #1 source for all things global truss, dj lighting truss, portable stages, aluminum truss, and stage trussing.

🧰 Need help customizing your design?
📞 Call our truss experts or message us anytime!

🚀 Bonus Tip:

Add LED uplights inside the arc, or mount moving heads and gobos to the top trusses for a jaw-dropping nighttime effect. Yes, your booth can literally glow with greatness.

If you're ready to make jaws drop and cameras click, then say hello to the Global Truss F34 27’x27’x10’ Circular Dome Booth — the kind of structure that screams “centerpiece” at any trade show, festival, DJ event, or brand activation! Built with precision-engineered aluminum truss elements, this dome blends strength, style, and speedy setup all in one mighty impressive package.

Whether you're an event producer, DJ, exhibitor, or lighting designer, this truss booth will elevate your presence — literally and figuratively. And guess what? Building this dome is easier than you think. Let’s walk through the step-by-step, coffee-in-hand, wrench-in-pocket!

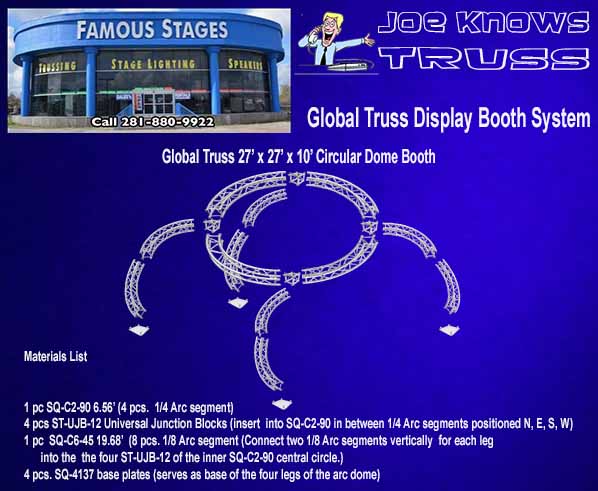

🛠 Materials You’ll Need to Build the Dome:

• 1 pc SQ-C2-90 Circular Truss 6.56’ diameter (made of 4 pcs. 1/4 arc segments)

• 4 pcs ST-UJB-12 Universal Junction Blocks (these will go between the arcs like compass points at North, East, South, West)

• 1 pc SQ-C6-45 Circular Truss 19.68’ diameter (8 pcs. 1/8 arc segments; these will form the vertical legs)

• 4 pcs SQ-4137 Heavy-duty base plates to anchor the legs of the dome


This setup uses Global Truss F34 — known for its durability, modular flexibility, and professional-grade engineering that’s trusted by the pros across the entertainment world.

🔧 Step 1: Let’s Build the Heart — The Inner Circle (SQ-C2-90)

Start by forming your central circular truss using the 4 pcs of 1/4 arc segments from the SQ-C2-90 kit. Lay them flat on the ground to form a clean circle.

Now, here’s the pro move: insert the ST-UJB-12 universal junction blocks between each 1/4 arc segment. These junction blocks go at the North, East, South, and West positions — creating four evenly spaced anchor points around the circle.

These blocks are where the vertical magic begins — so make sure they’re tightly secured!

🏗 Step 2: Let’s Rise — Building the Vertical Arcs (SQ-C6-45)

Time to add some drama (and height)! You’ll be using the SQ-C6-45 circular truss kit, which includes 8 pcs of 1/8 arc segments.

Here’s how to use them:

• Pair two 1/8 arc segments vertically to form one tall arc leg. Do this 4 times.

• Each arc leg will connect into the ST-UJB-12 blocks you just placed at N, E, S, and W on the center circle.


These arc legs will begin to rise up and out — forming a dome-like curve. The symmetry is stunning, and the structure? Rock solid!

⚓ Step 3: Anchor It All — Install the Base Plates (SQ-4137)

Each arc leg ends at the ground level. Now it’s time to lock in the stability with the SQ-4137 base plates.

Position a base plate directly under each of the four arc legs and securely bolt them in. Not only do these steel base plates add weight and strength, but they also give your dome that "I'm not going anywhere" level of security — crucial for any indoor or outdoor event.

Pro tip: Add sandbags or concrete weights to the base plates for even more wind resistance in outdoor setups.

🎪 The Final Look: Show-Stopping, Brand-Boosting, Dome-Tastic!

Congratulations! You’ve just created a 27’x27’x10’ Circular Dome Booth that doesn’t just stand — it commands attention. Whether it’s fitted with lighting truss, DJ trussing, video screens, banners, or aerial props — this dome gives you maximum flexibility with aluminum lighting truss performance.

Perfect for:

• Trade Shows

• Festival Entrances

• Convention Booth Truss Setups

• Touring DJ Stages

• Display Booth Truss Installations

• Brand Activations

• Corporate Exhibits


💡 Why Go Circular with Global Truss?

When you choose Global Truss F34, you're choosing a system trusted by professionals worldwide. It’s lightweight, strong, and modular — meaning you can rebuild, expand, or modify your stage truss setup over and over again.

At FamousStages.com, we carry everything from dj truss to stage trussing, portable stages, and lighting trussing gear that’s ready to ship. We’re here to help make your booth the highlight of the entire show floor.

🛒 Ready to Dominate Your Next Event?

This Global Truss F34 27’x27’x10’ Circular Dome Booth is more than just structure — it’s a statement. So don’t wait for the spotlight — be the spotlight.

👉 Shop now at FamousStages.com and let us help you design your next stage truss masterpiece.

Whether it’s a display booth truss, convention booth truss, or a lighting truss dome, we’ve got you covered with expert advice, unbeatable deals, and fast shipping.

If you're planning a trade show, convention, concert, or festival, there’s one way to guarantee everyone notices you: the Global Truss 20.63’ x 20.63’ x 10’ Circular Dome Booth. This stunning stage truss structure brings architectural elegance and professional-grade strength to your event space — whether it's for a dj truss, lighting truss, or display booth truss.

At Famous Stages, we’ve mastered the art of stage trussing, and today, we’ll guide you step-by-step on how to build this impressive aluminum truss dome system that commands attention and transforms any event.

Materials You’ll Need:

• ✅ 2 pcs. Global Truss SQ-C3-90 Circular Truss

• ✅ 8 pcs. Global Truss ST-UJB-12 Universal Junction Blocks

• ✅ 4 pcs. Global Truss SQ-4137 Heavy-Duty Base Plates

• ✅ 4 pcs. Global Truss F34 Box Truss 4.10 ft. (vertical posts)


Step 1: Form the Central Circle of the Dome with Junction Blocks

Let’s start by building the central circular crown of the dome. The Global Truss SQ-C3-90 Circular Truss is composed of four 1/4 Arc segments. But instead of connecting them directly to each other, here’s the trick:

• Insert a ST-UJB-12 Universal Junction Block between each of the 1/4 Arc segments.

• Once connected, you’ll form a complete circle, spaced evenly with four ST-UJB-12s positioned at the 12, 3, 6, and 9 o’clock points.


This method does two things: it builds a solid circular structure and also preps perfect anchor points for the rest of the dome.

Step 2: Build the Dome Crown — Add the Vertical 1/4 Arc Segments

Next, grab the second SQ-C3-90 Circular Truss, which is also made up of four 1/4 Arc Circles.

• Connect each of these arcs vertically to the ST-UJB-12s you just placed on the central circle.

• Once all arcs are installed, you’ll have created a beautiful upward-curving dome that crowns your structure.


At this stage, the top dome is complete — compact, symmetrical, and ready for elevation!

Step 3: Assemble the Vertical Posts with Base Plates

Now it’s time to give the dome its height:

1. Attach the 4.10 ft. F34 Box Truss vertical posts to the SQ-4137 Base Plates to provide stable support.

2. On top of each vertical post, secure a ST-UJB-12 Universal Junction Block — these will connect to the dome’s base circle shortly.


These vertical posts will bring your dome to its full 10-foot towering presence, perfect for any stage truss or convention booth truss setup.

Step 4: Raise and Mount the Dome

Time to lift that masterpiece! Carefully (and with enough hands or proper lifting tools):

• Raise the entire completed dome and align the central circle’s ST-UJB-12s with the ST-UJB-12s atop each vertical post.

• Once secured, the Global Truss dome booth stands proudly elevated, with the dome elegantly arching over the event space.


Step 5: Customize & Illuminate — Let Creativity Shine

With the dome standing tall, it’s time to make it dazzle:

• Hang lighting truss fixtures, moving heads, or special effects on the circular truss and vertical arcs.

• Attach signage, banners, or fabric for brand displays.

• For DJs, mount speakers and light effects to create an electrifying dj trussing setup.

• For trade shows, use it as a display booth truss to create a dynamic, immersive space that draws crowds.


Why Choose the Global Truss 20.63’ x 20.63’ x 10’ Circular Dome Booth?

• ✅ Made from F34 Aluminum Truss: Lightweight, durable, and made to last

• ✅ Modular and easy to transport, assemble, and reconfigure

• ✅ Perfect for stage truss, dj truss, lighting trussing, and portable stages

• ✅ A visually commanding presence ideal for convention booth truss and exhibition displays


Don’t Just Show Up — Show Off with Famous Stages!

If you’re ready to level up your event, the Global Truss Circular Dome Booth is your ultimate power play. And you’ll find the best prices and support at Famous Stages — your one-stop shop for all things stage trussing, lighting truss, and aluminum truss.

👉 Order yours now at famousstages.com and let your next event be the one no one forgets!

Welcome to another build-worthy adventure brought to you by your friends at Famous Stages, where we know a thing or two about stage trussing, dj truss systems, and portable stages that leave jaws dropped and crowds amazed.

Today, we’re diving headfirst into the assembly of a Global Truss 10.1’ x 22.53’ x 16.32’ Arch Booth Truss — a sleek and powerful display booth truss system that commands attention at trade shows, expos, conventions, festivals, and high-profile events. Whether you're elevating a lighting truss, creating an immersive dj truss zone, or designing the ultimate convention booth truss, this structure delivers strength, style, and modular flexibility.

Let’s fire it up!

🧰 Materials You’ll Need:

• 1 pc SQ-C6-45 (19.68 ft Circle Truss – 8 Arc Segments)
  → 4 segments form the Front Semi Circle, 4 for the Back Semi Circle

• 10 pcs ST-UJB-12 Universal Junction Blocks
  → 3 for the Front Semi Circle (connect the 4 arc segments)
  → 3 for the Back Semi Circle (connect the other 4 arc segments)
  → 4 more used to connect the base and vertical posts

• 4 pcs F34 Box Truss 4.10 ft
  → These are your strong, lightweight aluminum vertical posts

• 4 pcs SQ-4137 Base Plates
  → Heavy-duty bases for stability and secure footing

• 5 pcs F34 Box Truss 8.2 ft
  → These horizontal connections bridge the front and back arcs to form your elegant archway


🛠️ Step-by-Step Assembly: Let’s Truss It Up!

🔹 Step 1: Lay the Foundation with Base Plates

Start by placing your SQ-4137 base plates on the floor. These will serve as the sturdy foundation for your aluminum truss structure. Lay them out in a rectangle, spaced 10.1 feet apart (width) and 22.53 feet apart (depth).

Two plates will mark the corners of the front semi-circle area, and two plates will align with the back semi-circle. Think symmetry, stability, and strategic spacing.

🔹 Step 2: Build the Front Semi-Circle

Grab 4 arc segments from your SQ-C6-45 circle truss. Connect each arc using ST-UJB-12 universal junction blocks — 3 in total — to form a smooth front-facing semi-circle.

Now you’ve got a beautiful arch truss curve ready to impress. This is the part that tells everyone, "Hey, something incredible is about to happen here!"

🔹 Step 3: Build the Back Semi-Circle

Repeat the magic with the remaining 4 arc segments and 3 more ST-UJB-12 junction blocks. Connect them into a perfect rear-facing semi-circle, mirroring the front half.

Now you've got a double-arched display booth truss ready to be connected and elevated.

🔹 Step 4: Attach the Vertical Posts

Using the remaining 4 ST-UJB-12 junction blocks, connect each front and back arc to a F34 Box Truss 4.10 ft vertical post, one on each end. These posts will be mounted directly on your SQ-4137 base plates.
This step creates that powerful vertical lift to support the full height of the arch: 16.32 ft of towering truss glory.

Now it's starting to look like a serious stage truss system ready to carry lighting, banners, LED panels, and more.

🔹 Step 5: Bridge the Front and Back Arcs

Use your 5 pcs of F34 8.2 ft truss to connect the front and back semi-circles.

Start by attaching one 8.2 ft truss at the top center of the front arc to the top center of the back arc — this becomes your crown beam, locking the structure’s spine.

Then, add the remaining four 8.2 ft trusses perpendicularly between the side junctions of the front and back arcs. These create the roof ribbing, adding that signature lighting trussing strength and look.

💡Pro Tip: Always use safety pins and couplers (not just spigots) when locking in your truss sections. Safety first, always.

🎉 And There You Have It — The Ultimate Arch Display Booth!

What you’ve created is more than just a global truss build — it’s a portable work of art.
Perfect for:

• Trade show booths

• Convention exhibits

• Touring DJ performances

• Stage entrances

• Product showcases

• Brand activations


This arch booth truss system is ultra-strong, lightweight, and designed for repeated setup and takedown — ideal for anyone needing a professional aluminum lighting truss solution.

🔑 Why Customers Love This Setup

✅ Easy to assemble
✅ Fully modular
✅ Stunning aesthetic presence
✅ Supports lighting, speakers, banners, and LED walls
✅ Perfect for stage trussing, DJ lighting truss, display booth truss, and convention booth truss setups

💥 Get It Now at FamousStages.com

Ready to steal the show? Order your Global Truss 10.1’ x 22.53’ x 16.32’ Arch Booth Truss system today from FamousStages.com — your go-to source for:

• Stage truss

• Lighting truss

• DJ truss

• Aluminum lighting truss

• Portable stages

• Convention booth truss systems

• …and all the trussing hardware you need to elevate your brand.


Let’s face it — no stage setup is complete without a global truss that looks amazing and performs like a pro.

So don’t just build a booth. Build a legacy.

Ready to bend the rules—and the booth? Let’s talk about building the sleek, stunning, and absolutely unforgettable Global Truss 10.1’ x 22.53’ x 11.27’ Semi-Circle Booth Truss. Whether you’re lighting up a trade show, energizing a DJ setup, or crafting an eye-catching exhibit, this semi-circle design is your go-to for maximum visual impact.

At Famous Stages, we make it easy for you to stand out from the crowd with premium stage truss systems, lighting truss, and display booth truss solutions. Today, we’re walking you through how to build this semi-circle marvel using high-quality Global Truss F34 aluminum truss components.

🎯 Materials You’ll Need

Here’s the complete breakdown of what you’ll need to bring this semi-circle beauty to life:

• 1 pc. Global Truss SQ-C6-45 (19.68 ft Circle Truss – 8 arc segments total)

• 6 pcs. ST-UJB-12 Universal Junction Blocks

• 4 pcs. SQ-4137 Aluminum Base Plates

• 3 pcs. F34 Box Truss 8.2 ft Aluminum Lighting Trusses


Let’s turn this pile of precision-engineered trussing into a jaw-dropping booth display.

🔧 Step-by-Step Assembly: Let's Get Building!

✅ Step 1: Create the Front Semi-Circle (This is Your Audience Magnet)

Start by grabbing 4 of the 8 arc segments from the Global Truss SQ-C6-45 Circle Truss. These will form the front half of the semi-circle. Use 3 ST-UJB-12 Universal Junction Blocks to connect these 4 arcs together.

Lay this out on the floor first to visualize the semi-circle taking shape. Once connected, you’ll have a beautifully smooth curved front — the part your guests will see first. It screams sophistication and stage trussing excellence.

🎤 Pro tip: Make sure the junction blocks are tightly secured using proper couplers. Safety and stability are always in style.

✅ Step 2: Mirror It — Build the Back Semi-Circle

Now, take the remaining 4 arc segments and connect them using the other 3 ST-UJB-12 Universal Junction Blocks. This will create the back half of your semi-circle structure.

You now have two half-circles — front and back — perfectly matched and curved to impress. This double curve setup gives your booth a 3D architectural edge rarely seen in traditional trade show booth truss designs.

✅ Step 3: Ground It — Place Your Base Plates

Next, grab those 4 SQ-4137 Base Plates and place them at the four corners of your semi-circle layout, approximating a 10.1’ x 22.53’ rectangular footprint. These will serve as your foundation, anchoring the ends of both the front and back semi-circle halves.

Base plates are essential for keeping everything stable — especially when showcasing heavy gear like lighting trussing, monitors, or promotional banners.

✅ Step 4: Connect the Dots with F34 Box Trusses

Now it’s time to add strength and structure. Use the 3 pcs of 8.2 ft F34 Box Truss segments to connect the front and back arcs together. These will run perpendicularly between the junction blocks of the front and back semi-circles.

Space them evenly to form the support beams that give your truss structure that crisp, clean rectangular alignment while maintaining the graceful arcs in front and back.

Not only do these aluminum trusses add support—they also add visual flair. Think of them as the backbone of your entire DJ truss or convention booth truss system.

💡 Why This Semi-Circle Booth Is a Game-Changer

Let’s face it—straight lines are boring. This semi-circle booth truss design adds dynamic shape and architectural drama to your stage, trade show display, or branded photo op space. It draws attention from every angle and offers practical overhead structure for mounting dj lighting truss, banners, or LED panels.

Plus, every component is crafted from top-tier Global Truss F34 aluminum truss—lightweight yet incredibly strong, perfect for portable stages, stage lighting truss, and display booth truss systems.

🚀 Why Buy from Famous Stages?

We don’t just sell trusses—we sell transformations. When you buy your Global Truss, stage truss, or lighting truss from FamousStages.com, you're getting:

✅ Top-tier engineering
✅ Expert support
✅ Fast shipping
✅ Competitive pricing

Whether you're a DJ, event producer, exhibitor, or installer, this 10.1’ x 22.53’ x 11.27’ semi-circle booth truss will take your setup from ordinary to extraordinary.

If you’re looking to command attention, elevate your brand, and steal the spotlight at your next trade show or event, then let’s build something unforgettable—
The Global Truss F34 10.1’ x 21.58’ x 16.53’ Arch Display Booth.

This isn’t just a booth—it’s an architectural statement made from lightweight aluminum truss, engineered with precision, and made to impress.

Whether you're a touring production team, lighting designer, event producer, or DJ, this stage trussing setup is made for show-stopping performance and serious presence.

📦 What’s Included in This Booth Kit?

• 1 Circle Kit (F34 SQ-C4-90) – 4 pcs of 1/4 arc truss:
  2 for the front left/right, 2 for the back left/right.

• 8 pcs ST-UJB-12 – The universal junction blocks that do all the heavy lifting.

• 4 pcs 9.02’ F34 Box Truss – Vertical posts to lift the structure sky-high.

• 4 pcs SQ-4137 Base Plates – Solid foundation for your vertical posts.

• 4 pcs 8.2’ F34 Box Truss – For top beams and structural strength.

• 2 pcs 6.56’ F34 Box Truss – For front and back sides of the central frame.


🛠️ Step-by-Step Build: From Ground to Glory

Step 1: Set the Base & Go Vertical

Place your SQ-4137 base plates on the floor to mark the four corners of your display area.

Slide your 9.02 ft vertical truss posts onto the plates. Lock them in place securely—these four pillars are the backbone of your lighting truss arch booth.

Now, you're ready to rise.

Step 2: Top Corners First – The Foundation of the Arch

Here’s where it gets fun. Install one ST-UJB-12 universal junction block on top of each vertical truss post.

Next, attach a 1/4 arc truss (F34 SQ-C4-90) to each of the four ST-UJB-12s.

You’ve now got that sweeping curve look starting to take shape—this is what makes your display booth truss a showstopper.

Then, at the opposite end of each arc, connect another ST-UJB-12 junction block. This forms the curved perimeter of your top arch frame.

Step 3: Assemble the Center Rectangle on Top

Now connect the top central frame, forming a sturdy rectangle across the midsection of the arch.

• Use the 6.56 ft F34 Box Truss to span the front and back, connecting the ST-UJB-12 blocks in each pair.

• Connect an 8.2 ft Box Truss between the left-side ST-UJB-12s.

• Then add another 8.2 ft Box Truss between the right-side ST-UJB-12s.


That gives you a center rectangle—strong, square, and ready to support lights, banners, and action.

Step 4: Complete the Arch Frame with the Final 8.2’ Beams

Now let’s lock in the outer frame:

• Take the remaining two 8.2 ft Box Trusses and place one on the leftmost side and the other on the rightmost side, perpendicular to the front and back.

• These beams connect the outer ST-UJB-12 corners (where the arcs end) and complete the sleek arch silhouette.


Boom. You’ve got a Global Truss arch display booth that’s clean, commanding, and 100% pro.

✨ Why This Booth Is a Crowd Magnet

• 🧲 Sleek curved arches that draw attention from every angle

• 💪 Built from heavy-duty aluminum truss with lightweight strength

• 💡 Perfect for mounting lighting truss, banners, LED panels, and sound gear

• 🎛️ Ideal for DJ truss systems, portable stages, or convention booth trussing


This isn’t just about structure—it’s about style + functionality wrapped in one eye-popping display.

🛒 Build It Right. Buy It from Famous Stages.

At FamousStages.com, we offer only the best Global Truss components used by industry pros worldwide. From stage truss kits and dj lighting truss setups, to aluminum lighting truss systems and portable stages, we’ve got the gear you need to build big, bold, and better.

Don’t settle for cookie-cutter booths. Build the arch booth that builds your brand.

👉 Shop the Global Truss F34 10.1’ x 21.67’ x 16.53’ Arch Display Booth now at FamousStages.com

Welcome to the World of Curves, Creativity, and Convention Booth Truss Magic!

Thinking about building an arch that screams "premium"? Ready to elevate your event game with some stunning stage trussing? Well, buckle up, truss lovers—because today, we’re putting together a jaw-dropping Global Truss F34 10.1’ x 14.07’ x 16.53’ Arch Display Booth that’ll stop traffic at trade shows and turn heads at concerts.

And guess what? It's all possible using precision-engineered components from famousstages.com, your go-to source for everything stage truss, lighting truss, and portable stages!

📦 What You’ll Need – The Truss Tool Kit of Champions:

Here’s the breakdown of parts for our dream display arch:

• ✅ 1 Circle Kit - Global Truss F34 SQ-C4-90
  (2 pcs. 1/4 Arc for the front semi-circle + 2 pcs. 1/4 Arc for the back semi-circle)

• ✅ 6 pcs. ST-UJB-12 Junction Blocks
  (4 for the booth corners, 2 for connecting the top center arc beam)

• ✅ 4 pcs. F34 Box Truss 9.02’
  (for the vertical support posts)

• ✅ 4 pcs. SQ-4137 Steel Base Plates
  (your rock-solid foundation)

• ✅ 3 pcs. F34 Box Truss 8.2’
  (1 for each top side + 1 for the top center beam)


🛠️ Step 1: Ground Control – Let’s Set the Foundation!

We begin our stage truss journey with the base plates. Grab those four SQ-4137 base plates and place them exactly where your four booth corners will stand. Make sure the space is a perfect 10.1 feet wide x 14.07 feet deep—because precision is the name of the game in display booth truss building.

Once your base plates are locked in, connect the F34 Box Truss 9.02' vertical posts to them using your trusty couplers (yep, no wobbly spigots here). Now you’ve got four solid legs reaching for the sky. We’re already feeling the power of aluminum trussing!

🧱 Step 2: Corner It Like a Pro – Add Those ST-UJB-12 Blocks

Attach one ST-UJB-12 universal junction block to the top of each vertical post. These are the cornerstones (literally) that will anchor your overhead trusses, giving your booth the strength and sleek design only a Global Truss system can provide.

This is where dj trussing meets architectural elegance. You’re building a structure that can hold lights, signage, banners, or just your undeniable brand presence.

🚧 Step 3: Beam Me Up! Install the Top Horizontal Trusses

Now that your four posts are upright and fitted with ST-UJB-12 junctions, it's time to install the top beams. Grab your 8.2’ box trusses—one for the left side, one for the right, and one for the center back. Secure them horizontally between the corner junctions.

This is your top rectangle. It’s where function meets form—an excellent surface to mount lighting trusses, create tension for banners, or dazzle with dj lighting truss setups.

🌀 Step 4: Curve Appeal – Front and Back Arcs Go Up!

Now, it’s time for the cherry on top: the arched semi-circles! Take the 1/4 arcs from your F34 SQ-C4-90 circle kit and combine two pieces to form a beautiful front arc and two more for the back arc.

These arcs will connect to the top center beam using—you guessed it—your last two ST-UJB-12 junction blocks. Secure the left and right ends of each arc to the junction blocks that sit above the vertical posts, and then connect the two arc ends at the top using the final 8.2’ center beam.

And there it is—your stunning arched display booth in full form! Your booth now stands at a commanding height of 16.53 feet with graceful curves and rock-solid aluminum lighting truss support.

🎉 Why Build This Global Truss Arch Booth?

• It's lightweight but sturdy – thanks to high-quality F34 aluminum trussing

• It's portable – perfect for conventions, DJ events, or on-the-go gigs

• It's eye-catching – that sleek arch is a branding magnet!

• It supports lighting trusses, digital signage, banners, and more

• It’s a perfect fit for dj truss, stage truss, and trade show booth designs


Whether you're in the entertainment industry, working with portable stages, or setting up the next big convention booth truss, this Global Truss arch system has you covered in style, stability, and superior engineering.

🛒 Ready to Build Your Arch Display Booth?

Don’t wait for the next big event to pass you by. Head over to famousstages.com right now and grab everything you need to erect your own Global Truss F34 arch display booth.

With our huge inventory, fast shipping, and unbeatable prices on stage truss, lighting trussing, aluminum truss, and more—you’ll be show-ready in no time.

Looking to make a powerful first impression at your next convention, trade show, or live event? We've got just the build for you—an eye-catching Global Truss F34 10x32 ft Back Wall with a 10x9 ft Center Display Booth built right in!

This custom-designed truss setup features sleek rounded corners, rock-solid Global Truss F34 components, and a layout that balances visual impact with easy assembly. Whether you're staging a product demo, housing a DJ booth, or showcasing a lighting rig, this truss system is a guaranteed showstopper.

And yes—you can build it all with materials from FamousStages.com, your one-stop shop for stage truss, stage trussing, lighting truss, dj truss, dj lighting truss, aluminum truss, aluminum lighting truss, portable stages, and display booth truss systems.

🧰 What You’ll Need:

• 8 pcs Global Truss F34 8.2 ft Box Truss
  (6 for the back wall vertical posts, 2 for the front posts of the center booth)

• 8 pcs Global Truss SQ-4137 Base Plates
  (6 for the back wall, 2 for the front posts of the center booth)

• 4 pcs Global Truss F34 4.10 ft Box Truss
  (2 for the left and 2 for the right of the top back wall span)

• 2 pcs Global Truss F34 5.74 ft Box Truss
  (1 for the center of the back wall top, 1 for the front side of the center booth)

• 2 pcs Global Truss F34 6.56 ft Box Truss
  (1 for the top left side and 1 for the top right side of the center booth)

• 2 pcs Global Truss F34 4-Way 90° Corners
  (back left and back right corners of the 10x9 ft center booth)

• 2 pcs Global Truss F34 3-Way 90° Rounded Corners
  (top front left and top front right corners of the center booth)

• 2 pcs Global Truss F34 3-Way 90° Corners
  (on top of vertical post 2 and vertical post 5 of the back wall)

• 2 pcs Global Truss F34 2-Way 90° Rounded Corners
  (on top of the leftmost and rightmost vertical posts of the back wall)


🏗️ Step-by-Step Assembly Guide

1. Lay the Foundation
Set up 6 base plates in a straight line, evenly spaced to form your back wall (~32 ft long). Then place 2 base plates about 10 ft forward, aligned with the center to mark the front corners of your center display booth.

2. Raise the Vertical Posts
Mount six 8.2 ft Global Truss F34 verticals on the back wall base plates (Posts 1 to 6). Then attach two more 8.2 ft vertical trusses on the front bases (Posts A and B) to complete the booth frame.

3. Add Corner Trusses

• Attach 2-way 90° rounded corners on top of Post 1 and Post 6.

• Attach 3-way 90° corners on top of Post 2 and Post 5.

• Attach 4-way 90° corners on top of Post 3 and Post 4 (these serve as the rear corners of the center booth).

• Attach 3-way 90° rounded corners on top of Posts A and B (these are the front corners of the booth).


4. Build the Back Wall Top Truss Structure
Start connecting the horizontal truss pieces across the top from Post 1 to Post 6:

• Begin with a 2-way 90° rounded corner, then

• 4.10 ft box truss,

• 3-way corner,

• another 4.10 ft truss,

• 4-way corner,

• 5.74 ft center truss,

• 4-way corner,

• 4.10 ft truss,

• 3-way corner,

• 4.10 ft truss,

• and finish with the final 2-way 90° rounded corner.


✅ This totals 31.98 ft, giving you a complete back wall span.

5. Complete the Booth Structure
From the 4-way corners at Posts 3 and 4, extend the left and right side trusses:

• 1.64 ft 4-way corner + 6.56 ft truss + 1.64 ft 3-way 90° rounded corner = 9.84 ft (depth rounded to 10 ft)


Now for the front:

• Connect a 1.64 ft 3-way 90° rounded corner + 5.74 ft truss + 1.64 ft 3-way 90° rounded corner = 9.02 ft (width rounded to 9 ft)


Boom! Your 10x9 ft Center Booth is framed out and connected seamlessly with the back wall.

💡 Why This Design Works

• Modular Setup – Built with Global Truss F34, known for strength, ease, and versatility

• Rounded Corners – Provides both safety and a polished, professional look

• Lightweight Yet Durable – All parts are made of aluminum lighting truss, built to withstand any event environment

• Visually Stunning – Bold lines and clean geometry make it perfect for lighting truss displays, DJ truss setups, and branded exhibit spaces


🎯 Final Thoughts: Why Buy Now?

This 10x32 ft Global Truss back wall with an integrated 10x9 ft display booth is a turnkey solution for making a bold statement at any event. From DJs to lighting techs, trade show organizers to production crews—this setup is modular, rock-solid, and visually impressive.

Visit FamousStages.com today and get everything you need to build this system.  your booth speak volumes before you even say a word. Order now and let your next setup shine.

Whether you're preparing for a high-impact trade show, creating a dazzling concert backdrop, or building the ultimate DJ performance space, this guide walks you through how to build a Global Truss F34 10x44 ft inclined back wall complete with a 10x18 ft center display booth. This lightweight, heavy-duty aluminum truss system combines aesthetics with strength and flexibility—perfect for professionals who want their setup to shine.

🧰 What You Need – All Available at FamousStages.com

• 8 pcs. Global Truss F34 8.2 ft Box Truss

• 8 pcs. Global Truss SQ-4137 Base Plates

• 4 pcs. Global Truss F34 4.10 ft Box Truss

• 4 pcs. Global Truss F34 7.38 ft Box Truss

• 2 pcs. Global Truss F34 6.56 ft Box Truss

• 2 pcs. Global Truss F34 4-Way 90° Corners

• 4 pcs. Global Truss F34 3-Way 90° Corners

• 2 pcs. Global Truss F34 2-Way 120° Corners

• 2 pcs. Global Truss F34 2-Way 90° Corners


🔧 Step 1: Set the Base Plates and Vertical Posts

Start by laying down your 8 base plates:

• 6 base plates in a straight row (8.2 ft apart) for the back wall

• 2 base plates placed 10 ft forward and 18 ft apart for the front posts of the center display booth


Now attach:

• 6 vertical 8.2 ft box trusses onto the back wall base plates (Posts 1 to 6)

• 2 vertical 8.2 ft trusses on the front booth base plates (Posts A and B)


🧱 Step 2: Build the Inclined Back Wall and Center Booth Integration

🔺 Left Inclined Wing (Post 1 to Post 3)

1. From Post 1, attach a 2-way 90° corner

2. Connect a 4.10 ft truss

3. Attach a 2-way 120° corner

4. Connect to a 3-way 90° corner on top of Post 2

5. Add another 4.10 ft truss

6. Connect to a 4-way 90° corner on top of Post 3


🧱 Center Back Wall (Posts 3 to 4)

This section doubles as the back side of the 10x18 ft center display booth:

• From the 4-way corner on Post 3, connect two 7.38 ft box trusses

• Terminate into the 4-way corner on Post 4


🔻 Right Inclined Wing (Post 4 to Post 6)

1. From Post 4, connect a 4.10 ft truss to a 3-way 90° corner on Post 5

2. Attach a 2-way 120° corner

3. Add a 4.10 ft box truss

4. Finish at a 2-way 90° corner on top of Post 6


🏗️ Step 3: Construct the 10x18 ft Center Display Booth

🧍♂️ Front Vertical Posts A and B

• Mount your 8.2 ft vertical trusses onto the front base plates

• Top them with 3-way 90° corners


🔩 Top Frame Connections

• Left Side: Connect a 6.56 ft truss from Post A to Post 3

• Right Side: Connect a 6.56 ft truss from Post B to Post 4

• Front Span (Post A to Post B): Use two 7.38 ft box trusses connected across the top


Now you've framed the front, sides, and back of your center display booth, which flows seamlessly into the back wall’s center panel—creating a unified, visually striking design.

🎯 Why This Setup Stands Out

This build gives you everything: height, depth, symmetry, and angled dynamics. The inclined wings add a dramatic flair while the center booth gives you a focused area to showcase products, set up LED screens, or conduct on-site presentations. The aluminum construction keeps it light but incredibly sturdy—perfect for quick assembly, tear-down, and transport between events.

🚀 Ready to Build Your Dream Truss Setup?

Don’t wait to elevate your brand and your stage presence. This truss system is not just a structure—it’s a statement. Whether you’re a production manager, DJ, trade show exhibitor, or event organizer, this is the ultimate stage truss and display booth solution.

👉 Get yours now at FamousStages.com and turn every show into a showstopper. These best-selling Global Truss F34 components move fast—order today and build like a pro!
