Looking to make a powerful first impression at your next convention, trade show, or live event? We've got just the build for you—an eye-catching Global Truss F34 10x32 ft Back Wall with a 10x9 ft Center Display Booth built right in!

This custom-designed truss setup features sleek rounded corners, rock-solid Global Truss F34 components, and a layout that balances visual impact with easy assembly. Whether you're staging a product demo, housing a DJ booth, or showcasing a lighting rig, this truss system is a guaranteed showstopper.

And yes—you can build it all with materials from FamousStages.com, your one-stop shop for stage truss, stage trussing, lighting truss, dj truss, dj lighting truss, aluminum truss, aluminum lighting truss, portable stages, and display booth truss systems.

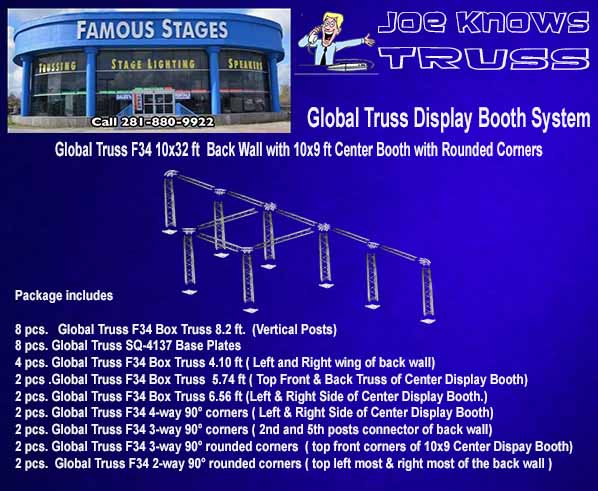

🧰 What You’ll Need:

• 8 pcs Global Truss F34 8.2 ft Box Truss
  (6 for the back wall vertical posts, 2 for the front posts of the center booth)

• 8 pcs Global Truss SQ-4137 Base Plates
  (6 for the back wall, 2 for the front posts of the center booth)

• 4 pcs Global Truss F34 4.10 ft Box Truss
  (2 for the left and 2 for the right of the top back wall span)

• 2 pcs Global Truss F34 5.74 ft Box Truss
  (1 for the center of the back wall top, 1 for the front side of the center booth)

• 2 pcs Global Truss F34 6.56 ft Box Truss
  (1 for the top left side and 1 for the top right side of the center booth)

• 2 pcs Global Truss F34 4-Way 90° Corners
  (back left and back right corners of the 10x9 ft center booth)

• 2 pcs Global Truss F34 3-Way 90° Rounded Corners
  (top front left and top front right corners of the center booth)

• 2 pcs Global Truss F34 3-Way 90° Corners
  (on top of vertical post 2 and vertical post 5 of the back wall)

• 2 pcs Global Truss F34 2-Way 90° Rounded Corners
  (on top of the leftmost and rightmost vertical posts of the back wall)


🏗️ Step-by-Step Assembly Guide

1. Lay the Foundation
Set up 6 base plates in a straight line, evenly spaced to form your back wall (~32 ft long). Then place 2 base plates about 10 ft forward, aligned with the center to mark the front corners of your center display booth.

2. Raise the Vertical Posts
Mount six 8.2 ft Global Truss F34 verticals on the back wall base plates (Posts 1 to 6). Then attach two more 8.2 ft vertical trusses on the front bases (Posts A and B) to complete the booth frame.

3. Add Corner Trusses

• Attach 2-way 90° rounded corners on top of Post 1 and Post 6.

• Attach 3-way 90° corners on top of Post 2 and Post 5.

• Attach 4-way 90° corners on top of Post 3 and Post 4 (these serve as the rear corners of the center booth).

• Attach 3-way 90° rounded corners on top of Posts A and B (these are the front corners of the booth).


4. Build the Back Wall Top Truss Structure
Start connecting the horizontal truss pieces across the top from Post 1 to Post 6:

• Begin with a 2-way 90° rounded corner, then

• 4.10 ft box truss,

• 3-way corner,

• another 4.10 ft truss,

• 4-way corner,

• 5.74 ft center truss,

• 4-way corner,

• 4.10 ft truss,

• 3-way corner,

• 4.10 ft truss,

• and finish with the final 2-way 90° rounded corner.


✅ This totals 31.98 ft, giving you a complete back wall span.

5. Complete the Booth Structure
From the 4-way corners at Posts 3 and 4, extend the left and right side trusses:

• 1.64 ft 4-way corner + 6.56 ft truss + 1.64 ft 3-way 90° rounded corner = 9.84 ft (depth rounded to 10 ft)


Now for the front:

• Connect a 1.64 ft 3-way 90° rounded corner + 5.74 ft truss + 1.64 ft 3-way 90° rounded corner = 9.02 ft (width rounded to 9 ft)


Boom! Your 10x9 ft Center Booth is framed out and connected seamlessly with the back wall.

💡 Why This Design Works

• Modular Setup – Built with Global Truss F34, known for strength, ease, and versatility

• Rounded Corners – Provides both safety and a polished, professional look

• Lightweight Yet Durable – All parts are made of aluminum lighting truss, built to withstand any event environment

• Visually Stunning – Bold lines and clean geometry make it perfect for lighting truss displays, DJ truss setups, and branded exhibit spaces


🎯 Final Thoughts: Why Buy Now?

This 10x32 ft Global Truss back wall with an integrated 10x9 ft display booth is a turnkey solution for making a bold statement at any event. From DJs to lighting techs, trade show organizers to production crews—this setup is modular, rock-solid, and visually impressive.

Visit FamousStages.com today and get everything you need to build this system.  your booth speak volumes before you even say a word. Order now and let your next setup shine.
