How to Assemble a Global Truss 10.1’ x 22.53’ x 16.32’ Arch Booth Truss — A Show-Stopping Display Structure That Wows!
Welcome to another build-worthy adventure brought to you by your friends at Famous Stages, where we know a thing or two about stage trussing, dj truss systems, and portable stages that leave jaws dropped and crowds amazed.
Today, we’re diving headfirst into the assembly of a Global Truss 10.1’ x 22.53’ x 16.32’ Arch Booth Truss — a sleek and powerful display booth truss system that commands attention at trade shows, expos, conventions, festivals, and high-profile events. Whether you're elevating a lighting truss, creating an immersive dj truss zone, or designing the ultimate convention booth truss, this structure delivers strength, style, and modular flexibility.
Let’s fire it up!
🧰 Materials You’ll Need:
-
1 pc SQ-C6-45 (19.68 ft Circle Truss – 8 Arc Segments)
→ 4 segments form the Front Semi Circle, 4 for the Back Semi Circle
-
10 pcs ST-UJB-12 Universal Junction Blocks
→ 3 for the Front Semi Circle (connect the 4 arc segments)
→ 3 for the Back Semi Circle (connect the other 4 arc segments)
→ 4 more used to connect the base and vertical posts
-
4 pcs F34 Box Truss 4.10 ft
→ These are your strong, lightweight aluminum vertical posts
-
4 pcs SQ-4137 Base Plates
→ Heavy-duty bases for stability and secure footing
-
5 pcs F34 Box Truss 8.2 ft
→ These horizontal connections bridge the front and back arcs to form your elegant archway
🛠️ Step-by-Step Assembly: Let’s Truss It Up!
🔹 Step 1: Lay the Foundation with Base Plates
Start by placing your SQ-4137 base plates on the floor. These will serve as the sturdy foundation for your aluminum truss structure. Lay them out in a rectangle, spaced 10.1 feet apart (width) and 22.53 feet apart (depth).
Two plates will mark the corners of the front semi-circle area, and two plates will align with the back semi-circle. Think symmetry, stability, and strategic spacing.

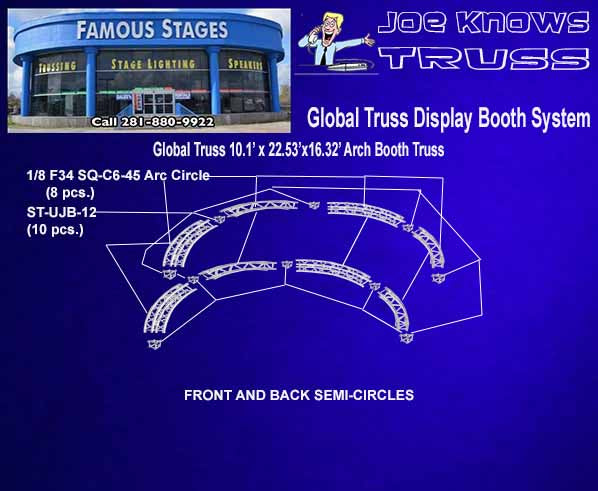

🔹 Step 2: Build the Front Semi-Circle
Grab 4 arc segments from your SQ-C6-45 circle truss. Connect each arc using ST-UJB-12 universal junction blocks — 3 in total — to form a smooth front-facing semi-circle.
Now you’ve got a beautiful arch truss curve ready to impress. This is the part that tells everyone, "Hey, something incredible is about to happen here!"
🔹 Step 3: Build the Back Semi-Circle
Repeat the magic with the remaining 4 arc segments and 3 more ST-UJB-12 junction blocks. Connect them into a perfect rear-facing semi-circle, mirroring the front half.
Now you've got a double-arched display booth truss ready to be connected and elevated.
🔹 Step 4: Attach the Vertical Posts
Using the remaining 4 ST-UJB-12 junction blocks, connect each front and back arc to a F34 Box Truss 4.10 ft vertical post, one on each end. These posts will be mounted directly on your SQ-4137 base plates.
This step creates that powerful vertical lift to support the full height of the arch: 16.32 ft of towering truss glory.
Now it's starting to look like a serious stage truss system ready to carry lighting, banners, LED panels, and more.
🔹 Step 5: Bridge the Front and Back Arcs
Use your 5 pcs of F34 8.2 ft truss to connect the front and back semi-circles.
Start by attaching one 8.2 ft truss at the top center of the front arc to the top center of the back arc — this becomes your crown beam, locking the structure’s spine.
Then, add the remaining four 8.2 ft trusses perpendicularly between the side junctions of the front and back arcs. These create the roof ribbing, adding that signature lighting trussing strength and look.
💡Pro Tip: Always use safety pins and couplers (not just spigots) when locking in your truss sections. Safety first, always.
🎉 And There You Have It — The Ultimate Arch Display Booth!
What you’ve created is more than just a global truss build — it’s a portable work of art.
Perfect for:
- Trade show booths
- Convention exhibits
- Touring DJ performances
- Stage entrances
- Product showcases
- Brand activations
This arch booth truss system is ultra-strong, lightweight, and designed for repeated setup and takedown — ideal for anyone needing a professional aluminum lighting truss solution.
🔑 Why Customers Love This Setup
✅ Easy to assemble
✅ Fully modular
✅ Stunning aesthetic presence
✅ Supports lighting, speakers, banners, and LED walls
✅ Perfect for stage trussing, DJ lighting truss, display booth truss, and convention booth truss setups
💥 Get It Now at FamousStages.com
Ready to steal the show? Order your Global Truss 10.1’ x 22.53’ x 16.32’ Arch Booth Truss system today from FamousStages.com — your go-to source for:
-
Stage truss
-
Lighting truss
-
DJ truss
-
Aluminum lighting truss
-
Portable stages
-
Convention booth truss systems
- …and all the trussing hardware you need to elevate your brand.
Let’s face it — no stage setup is complete without a global truss that looks amazing and performs like a pro.
So don’t just build a booth. Build a legacy.
