How to Assemble a Stunning Global Truss F34 20x20x10 Booth Truss with a 7.51 ft Center Circle — Step-by-Step Guide

Hey event pros, production managers, and DIY stage builders! Ready to create an eye-catching display booth truss that screams professionalism and versatility? Today, we’re diving into how to assemble the Global Truss F34 20x20x10 Booth Truss, featuring a sleek 7.51 ft diameter center circle — perfect for that extra wow factor at trade shows, conventions, or any stage setup.

Whether you’re a seasoned pro or new to stage trussing, this guide is your go-to for building a solid, reliable, and visually stunning structure using premium aluminum truss components. Plus, it’s optimized for easy setup and maximum impact — because nobody’s got time for complicated rigs!

Why Choose the Global Truss F34 for Your Next Event?

Before we jump in, let’s talk about why the Global Truss F34 system is the go-to for lighting trussing, dj truss, and convention booth truss needs:

  • Lightweight yet sturdy aluminum lighting truss construction for easy transport and durability

  • Modular design lets you customize size and shape — perfect for portable stages or display booths

  • Compatible with a variety of junction blocks and base plates for flexible configurations

  • Great for hanging lighting, screens, banners, or DJ gear with style

Now, let’s get your hands dirty with the actual build!

Materials You’ll Need

For this 20x20 ft booth with a 10 ft height and a center circle of 7.51 ft diameter, gather the following:

Item Quantity Description

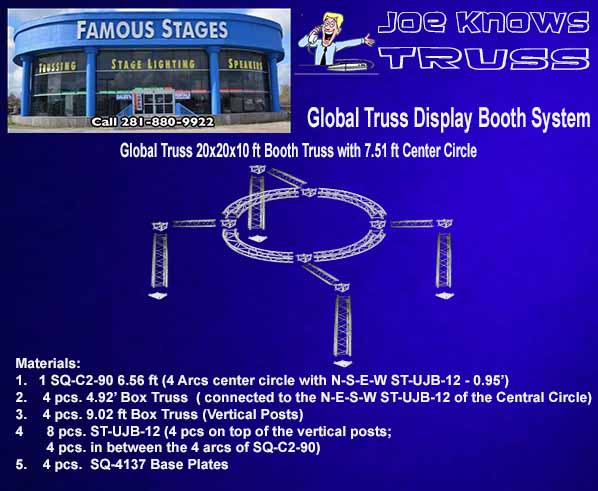

SQ-C2-90 (6.56 ft) 1 Four arcs forming the center circle
Box Truss (4.92 ft) 4 Connected to N, E, S, W points of center circle  in between two ST-UJB-12 Junction Blocks
Box Truss (9.02 ft) 4 Vertical posts supporting structure
ST-UJB-12 Junction Block 8 Four atop vertical posts, four between arcs of the center circle
SQ-4137 Base Plates 4 Base support for vertical posts

Step 1: Build the 7.51 ft Center Circle

Start your assembly by constructing the eye-catching center circle using the SQ-C2-90 6.56 ft curved truss pieces.

  • Connect the four arc sections together using four ST-UJB-12 junction blocks positioned between each arc segment.

  • This forms a smooth circular truss with a 7.51 ft diameter — a perfect centerpiece for your booth or stage.

This circle is not only stunning but also a strong support frame for lighting or banners hung from above.

Step 2: Attach the Four 4.92 ft Box Trusses

Now, take your four 4.92 ft aluminum box trusses and connect each one to the North, East, South, and West ST-UJB-12 junction blocks of the center circle.

  • These straight truss sections extend outward from the circle and will serve as connectors to your vertical posts.

  • Make sure each connection is tight and secure — safety first!

Global Truss F34 20x20x10 Booth Truss with a 7.51 ft Center Circle top horizontal truss

Step 3: Erect the Vertical Posts

Grab the four 9.02 ft box trusses to serve as your vertical posts.

  • Attach each vertical post to the end of the 4.92 ft trusses you connected to the center circle.

  • Secure the top of each vertical post with a ST-UJB-12 junction block.

  • On the ground, mount each vertical post base onto the sturdy SQ-4137 base plates to keep your booth rock solid.

Global Truss F34 20x20x10 Booth Truss with a 7.51 ft Center Circle vertical posts wth ujb on top

Step 4: Finalize the Top Structure

Use the four ST-UJB-12 junction blocks on top of the vertical posts — these go at the ends of the  4.92 ft  Box Truss which are connected to the N-E-S-W ST-UJB-12s in between the arcs of the center circle.

  • Connect these top horizontal structure to the tops of the vertical posts to lock the structure together and maintain stability.

  • This completes the signature 20x20x10 ft booth truss frame with the central circular highlight.

Global Truss F34 20x20x10 Booth Truss with a 7.51 ft Center Circle exploded view

Why This Setup Works for You

  • Flexible Modular Design: This booth truss can be customized with additional lighting trussing or accessories for any event type.

  • Portable Stages Ready: Lightweight aluminum truss means you can pack it up and take it anywhere.

  • Perfect for DJs & Lighting: Hang your DJ lighting truss or stage lighting with ease using the sturdy center circle.

  • Visual Impact: The center circle adds a unique flair that’s sure to draw attention and make your display booth stand out.

Pro Tips for Assembly

  • Always use at least 2-3 helpers when lifting and connecting vertical posts. Safety first!

  • Double-check all junction blocks and connections before use to prevent wobble.

  • Consider adding corner braces for extra rigidity if your setup will be outdoors or heavily loaded.

Ready to Build Your Own Global Truss Booth?

With this step-by-step guide, assembling your Global Truss F34 20x20x10 Booth Truss with a 7.51 ft center circle is easier than ever. Perfect for any convention booth truss, lighting trussing, or dj truss needs, this structure blends function and form.

Head over to famousstages.com to grab these exact trusses and components. Whether you’re outfitting a trade show, concert, or corporate event, the Global Truss F34 system is your ticket to professional, reliable, and eye-catching setups.
