Ready to bend the rules—and the booth? Let’s talk about building the sleek, stunning, and absolutely unforgettable Global Truss 10.1’ x 22.53’ x 11.27’ Semi-Circle Booth Truss. Whether you’re lighting up a trade show, energizing a DJ setup, or crafting an eye-catching exhibit, this semi-circle design is your go-to for maximum visual impact.

At Famous Stages, we make it easy for you to stand out from the crowd with premium stage truss systems, lighting truss, and display booth truss solutions. Today, we’re walking you through how to build this semi-circle marvel using high-quality Global Truss F34 aluminum truss components.

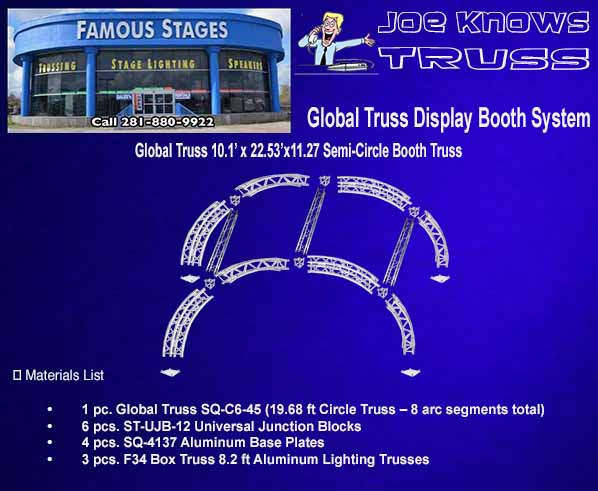

🎯 Materials You’ll Need

Here’s the complete breakdown of what you’ll need to bring this semi-circle beauty to life:

• 1 pc. Global Truss SQ-C6-45 (19.68 ft Circle Truss – 8 arc segments total)

• 6 pcs. ST-UJB-12 Universal Junction Blocks

• 4 pcs. SQ-4137 Aluminum Base Plates

• 3 pcs. F34 Box Truss 8.2 ft Aluminum Lighting Trusses


Let’s turn this pile of precision-engineered trussing into a jaw-dropping booth display.

🔧 Step-by-Step Assembly: Let's Get Building!

✅ Step 1: Create the Front Semi-Circle (This is Your Audience Magnet)

Start by grabbing 4 of the 8 arc segments from the Global Truss SQ-C6-45 Circle Truss. These will form the front half of the semi-circle. Use 3 ST-UJB-12 Universal Junction Blocks to connect these 4 arcs together.

Lay this out on the floor first to visualize the semi-circle taking shape. Once connected, you’ll have a beautifully smooth curved front — the part your guests will see first. It screams sophistication and stage trussing excellence.

🎤 Pro tip: Make sure the junction blocks are tightly secured using proper couplers. Safety and stability are always in style.

✅ Step 2: Mirror It — Build the Back Semi-Circle

Now, take the remaining 4 arc segments and connect them using the other 3 ST-UJB-12 Universal Junction Blocks. This will create the back half of your semi-circle structure.

You now have two half-circles — front and back — perfectly matched and curved to impress. This double curve setup gives your booth a 3D architectural edge rarely seen in traditional trade show booth truss designs.

✅ Step 3: Ground It — Place Your Base Plates

Next, grab those 4 SQ-4137 Base Plates and place them at the four corners of your semi-circle layout, approximating a 10.1’ x 22.53’ rectangular footprint. These will serve as your foundation, anchoring the ends of both the front and back semi-circle halves.

Base plates are essential for keeping everything stable — especially when showcasing heavy gear like lighting trussing, monitors, or promotional banners.

✅ Step 4: Connect the Dots with F34 Box Trusses

Now it’s time to add strength and structure. Use the 3 pcs of 8.2 ft F34 Box Truss segments to connect the front and back arcs together. These will run perpendicularly between the junction blocks of the front and back semi-circles.

Space them evenly to form the support beams that give your truss structure that crisp, clean rectangular alignment while maintaining the graceful arcs in front and back.

Not only do these aluminum trusses add support—they also add visual flair. Think of them as the backbone of your entire DJ truss or convention booth truss system.

💡 Why This Semi-Circle Booth Is a Game-Changer

Let’s face it—straight lines are boring. This semi-circle booth truss design adds dynamic shape and architectural drama to your stage, trade show display, or branded photo op space. It draws attention from every angle and offers practical overhead structure for mounting dj lighting truss, banners, or LED panels.

Plus, every component is crafted from top-tier Global Truss F34 aluminum truss—lightweight yet incredibly strong, perfect for portable stages, stage lighting truss, and display booth truss systems.

🚀 Why Buy from Famous Stages?

We don’t just sell trusses—we sell transformations. When you buy your Global Truss, stage truss, or lighting truss from FamousStages.com, you're getting:

✅ Top-tier engineering
✅ Expert support
✅ Fast shipping
✅ Competitive pricing

Whether you're a DJ, event producer, exhibitor, or installer, this 10.1’ x 22.53’ x 11.27’ semi-circle booth truss will take your setup from ordinary to extraordinary.
