Global Truss F34 10.1’ x 14.07’ x 16.53’ Arch Display Booth Materials List

Let’s Erect a Global Truss F34 10.1’ x 14.07’ x 16.53’ Arch Display Booth – Your Stage Trussing Masterpiece!

Welcome to the World of Curves, Creativity, and Convention Booth Truss Magic!

Thinking about building an arch that screams "premium"? Ready to elevate your event game with some stunning stage trussing? Well, buckle up, truss lovers—because today, we’re putting together a jaw-dropping Global Truss F34 10.1’ x 14.07’ x 16.53’ Arch Display Booth that’ll stop traffic at trade shows and turn heads at concerts.

And guess what? It's all possible using precision-engineered components from famousstages.com, your go-to source for everything stage truss, lighting truss, and portable stages!


📦 What You’ll Need – The Truss Tool Kit of Champions:

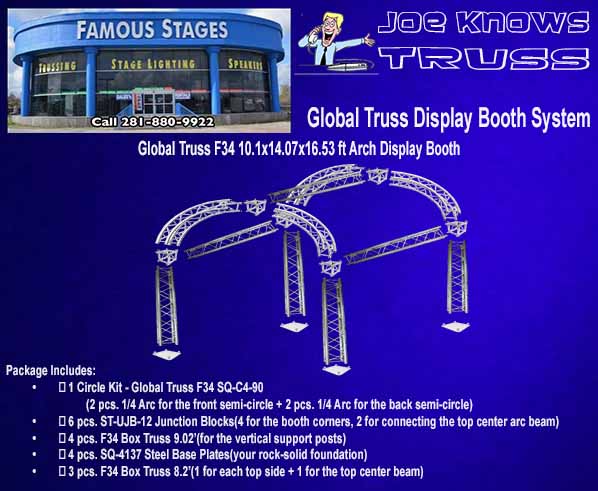

Here’s the breakdown of parts for our dream display arch:

  • 1 Circle Kit - Global Truss F34 SQ-C4-90
    (2 pcs. 1/4 Arc for the front semi-circle + 2 pcs. 1/4 Arc for the back semi-circle)
  • 6 pcs. ST-UJB-12 Junction Blocks
    (4 for the booth corners, 2 for connecting the top center arc beam)
  • 4 pcs. F34 Box Truss 9.02’
    (for the vertical support posts)
  • 4 pcs. SQ-4137 Steel Base Plates
    (your rock-solid foundation)
  • 3 pcs. F34 Box Truss 8.2’
    (1 for each top side + 1 for the top center beam)


🛠️ Step 1: Ground Control – Let’s Set the Foundation!

We begin our stage truss journey with the base plates. Grab those four SQ-4137 base plates and place them exactly where your four booth corners will stand. Make sure the space is a perfect 10.1 feet wide x 14.07 feet deep—because precision is the name of the game in display booth truss building.

Once your base plates are locked in, connect the F34 Box Truss 9.02' vertical posts to them using your trusty couplers (yep, no wobbly spigots here). Now you’ve got four solid legs reaching for the sky. We’re already feeling the power of aluminum trussing!

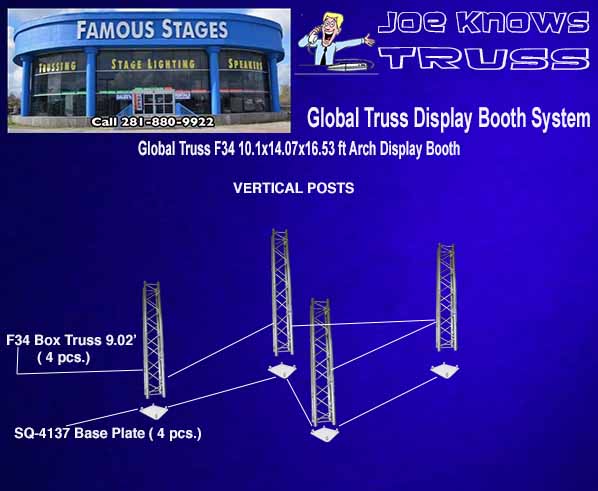

Global Truss F34 10.1’ x 14.07’ x 16.53’ Arch Display Booth vertical posts

🧱 Step 2: Corner It Like a Pro – Add Those ST-UJB-12 Blocks

Attach one ST-UJB-12 universal junction block to the top of each vertical post. These are the cornerstones (literally) that will anchor your overhead trusses, giving your booth the strength and sleek design only a Global Truss system can provide.

This is where dj trussing meets architectural elegance. You’re building a structure that can hold lights, signage, banners, or just your undeniable brand presence.


🚧 Step 3: Beam Me Up! Install the Top Horizontal Trusses

Now that your four posts are upright and fitted with ST-UJB-12 junctions, it's time to install the top beams. Grab your 8.2’ box trusses—one for the left side, one for the right, and one for the center back. Secure them horizontally between the corner junctions.

This is your top rectangle. It’s where function meets form—an excellent surface to mount lighting trusses, create tension for banners, or dazzle with dj lighting truss setups.

Global Truss F34 10.1’ x 14.07’ x 16.53’ Arch Display Booth top horizontal trusses

🌀 Step 4: Curve Appeal – Front and Back Arcs Go Up!

Now, it’s time for the cherry on top: the arched semi-circles! Take the 1/4 arcs from your F34 SQ-C4-90 circle kit and combine two pieces to form a beautiful front arc and two more for the back arc.

These arcs will connect to the top center beam using—you guessed it—your last two ST-UJB-12 junction blocks. Secure the left and right ends of each arc to the junction blocks that sit above the vertical posts, and then connect the two arc ends at the top using the final 8.2’ center beam.

And there it is—your stunning arched display booth in full form! Your booth now stands at a commanding height of 16.53 feet with graceful curves and rock-solid aluminum lighting truss support.

Global Truss F34 10.1’ x 14.07’ x 16.53’ Arch Display Booth exploded view

🎉 Why Build This Global Truss Arch Booth?

  • It's lightweight but sturdy – thanks to high-quality F34 aluminum trussing
  • It's portable – perfect for conventions, DJ events, or on-the-go gigs
  • It's eye-catching – that sleek arch is a branding magnet!
  • It supports lighting trusses, digital signage, banners, and more
  • It’s a perfect fit for dj truss, stage truss, and trade show booth designs

Whether you're in the entertainment industry, working with portable stages, or setting up the next big convention booth truss, this Global Truss arch system has you covered in style, stability, and superior engineering.


🛒 Ready to Build Your Arch Display Booth?

Don’t wait for the next big event to pass you by. Head over to famousstages.com right now and grab everything you need to erect your own Global Truss F34 arch display booth.

With our huge inventory, fast shipping, and unbeatable prices on stage truss, lighting trussing, aluminum truss, and more—you’ll be show-ready in no time.
