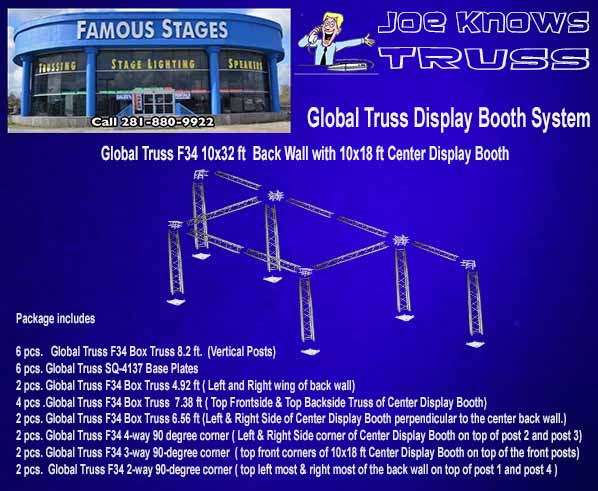

Global Truss F34 10x32 ft Back Wall with 10x18 ft Center Display Booth Package List

How to Assemble a Global Truss F34 10x32 ft Back Wall with 10x18 ft Center Display Booth (The Easy, Entertaining Way!)

So, you're ready to make a statement? Whether you’re setting up at a high-energy DJ event, a jaw-dropping trade show, or creating a striking backdrop for your production stage—this Global Truss F34 10x32 ft Back Wall with 10x18 ft Center Display Booth is about to take your show to the next level. It's strong, stylish, and versatile—and yes, it's surprisingly easy to assemble (especially with this guide)!

Let’s dive in and get your truss game on point—with some good vibes and great gear from famousstages.com, your go-to source for stage truss, lighting truss, DJ truss, portable stages, and more.


🧰 What’s in the Box? (A Quick Peek at Your Package Assembly)

You’ve got a powerful combo of aluminum truss magic in your hands:

  • 6 pcs. Global Truss F34 8.2 ft – 4 for the back wall, 2 for the front verticals of the center display booth.
  • 6 pcs. SQ-4137 Base Plates – 4 bases for the back wall, 2 for the center front verticals.
  • 2 pcs. F34 4.92 ft Trusses – For the left and right wings of your top back wall.
  • 4 pcs. F34 7.38 ft Trusses – 2 go across the top of the center back wall, 2 across the top front of the center display booth.
  • 2 pcs. F34 6.56 ft Trusses – These sit perpendicular to the back wall on the left and right top sides of your booth.
  • 2 pcs. F34 4-Way 90° Corners – Go on top of vertical posts 2 & 3, the back corners of your display.
  • 2 pcs. F34 3-Way 90° Corners – For the front top corners of the center display booth.
  • 2 pcs. F34 2-Way 90° Corners – Top off vertical posts 1 & 4, left and right ends of the back wall.

Global Truss F34 10x32 ft Back Wall with 10x18 ft Center Display Booth Exploded View

🪛 Step-by-Step Assembly: From Floor to Fame

🔩 Step 1: Lay the Foundation – Base Plates & Vertical Trusses

Start strong by placing all 6 base plates exactly where your truss display will stand:

  • 4 go across the 32 ft wide back wall.
  • 2 go 18 ft apart at the front, forming the center display booth.

Now raise your vertical truss towers:

  • Mount one 8.2 ft truss vertically on each base plate. Boom. You've got height.
  • Your back wall is now supported by 4 vertical towers, and the front of your center booth is flanked by 2 more.

Global Truss F34 10x32 ft Back Wall with 10x18 ft Center Display Booth Vertical Posts

🧱 Step 2: Assemble the Top Structure of the Back Wall

Time to make that back wall shout “Professional Production Powerhouse”:

  • Connect the tops of vertical posts 1 and 4 with the 2-way 90° corners.
  • Between posts 2 and 3, connect the two 7.38 ft trusses horizontally using the 4-way 90° corners on top.
  • Use the 4.92 ft trusses as the left and right wings—they span from post 1 to 2, and 3 to 4.

You’ve just created a 32-ft wide statement piece—a perfect lighting truss frame for LED walls, graphics, or banners!

🧱 Step 3: Build the Front Face of the Center Display Booth

Now let’s give your booth some serious structure:

  • On top of the 2 front vertical posts (from Step 1), attach the 3-way 90° corners.
  • Run the two 7.38 ft trusses across the front left and front right corners to create the top front display header.

Your booth now screams “trade show ready” and doubles as an eye-catching display booth truss.

🔄 Step 4: Tie the Booth Together – Side Connectors

Connect the 6.56 ft trusses from the back wall corners (posts 2 & 3) to the 3-way corners at the front. This ties the whole 10x18 ft center display booth together, giving you structural integrity and visual appeal.

These side connectors add a professional finish and offer more places to mount dj lighting truss, signage, and branding.

Global Truss F34 10x32 ft Back Wall with 10x18 ft Center Display Booth Top Horizontal Trusses

🎉 Why This Truss Setup Rocks (and Why You Should Buy It Now)

This isn’t just another aluminum lighting truss system—it’s the backbone of serious productions. Whether you’re:

  • Setting up a jaw-dropping DJ truss booth,
  • Creating a standout convention booth truss,
  • Or building a premium trade show booth setup that screams “We mean business,”

This Global Truss F34 system delivers every single time. Strong, sleek, and portable, this system travels well and installs fast. And with modular options, you can always add on later.


💡 Pro Tips from the Pros at Famous Stages

  • Use sandbags or stage weights at the base if you're outdoors or in high-traffic areas.
  • Want to add flair? Mount moving heads or PAR cans on the lighting trussing for a light show your visitors won’t forget.
  • Dress up your booth with tension fabric, media screens, or LED walls for maximum WOW.


🛒 Ready to Upgrade Your Game?

All of these incredible stage truss and display booth truss components are in stock and ready to ship at famousstages.com.

📦 Order today, and turn your event setup into a show-stopping, brand-boosting, crowd-drawing masterpiece.


🚀 Final Words

With this setup, you’re not just building a structure—you’re creating an experience. A Global Truss F34 10x32 back wall with a 10x18 ft center display booth is more than metal—it’s the backbone of your success. So get trussing, get noticed, and get ahead with Famous Stages—the leaders in stage trussing, dj trussing, and all things lighting truss!
