If you’re looking to command attention, elevate your brand, and steal the spotlight at your next trade show or event, then let’s build something unforgettable—

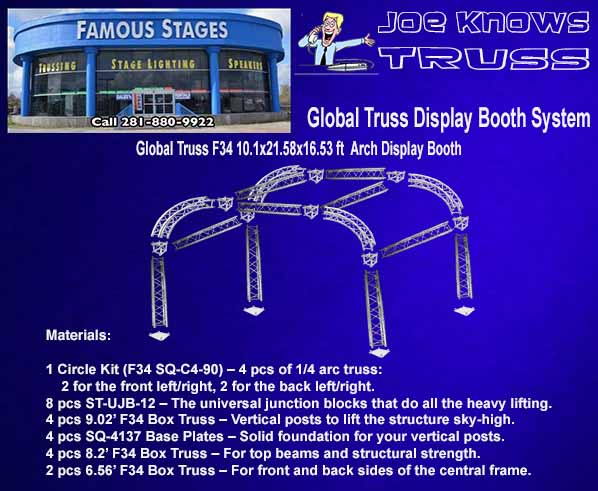

The Global Truss F34 10.1’ x 21.58’ x 16.53’ Arch Display Booth.

This isn’t just a booth—it’s an architectural statement made from lightweight aluminum truss, engineered with precision, and made to impress.

Whether you're a touring production team, lighting designer, event producer, or DJ, this stage trussing setup is made for show-stopping performance and serious presence.

📦 What’s Included in This Booth Kit?

• 1 Circle Kit (F34 SQ-C4-90) – 4 pcs of 1/4 arc truss:
  2 for the front left/right, 2 for the back left/right.

• 8 pcs ST-UJB-12 – The universal junction blocks that do all the heavy lifting.

• 4 pcs 9.02’ F34 Box Truss – Vertical posts to lift the structure sky-high.

• 4 pcs SQ-4137 Base Plates – Solid foundation for your vertical posts.

• 4 pcs 8.2’ F34 Box Truss – For top beams and structural strength.

• 2 pcs 6.56’ F34 Box Truss – For front and back sides of the central frame.


🛠️ Step-by-Step Build: From Ground to Glory

Step 1: Set the Base & Go Vertical

Place your SQ-4137 base plates on the floor to mark the four corners of your display area.

Slide your 9.02 ft vertical truss posts onto the plates. Lock them in place securely—these four pillars are the backbone of your lighting truss arch booth.

Now, you're ready to rise.

Step 2: Top Corners First – The Foundation of the Arch

Here’s where it gets fun. Install one ST-UJB-12 universal junction block on top of each vertical truss post.

Next, attach a 1/4 arc truss (F34 SQ-C4-90) to each of the four ST-UJB-12s.

You’ve now got that sweeping curve look starting to take shape—this is what makes your display booth truss a showstopper.

Then, at the opposite end of each arc, connect another ST-UJB-12 junction block. This forms the curved perimeter of your top arch frame.

Step 3: Assemble the Center Rectangle on Top

Now connect the top central frame, forming a sturdy rectangle across the midsection of the arch.

• Use the 6.56 ft F34 Box Truss to span the front and back, connecting the ST-UJB-12 blocks in each pair.

• Connect an 8.2 ft Box Truss between the left-side ST-UJB-12s.

• Then add another 8.2 ft Box Truss between the right-side ST-UJB-12s.


That gives you a center rectangle—strong, square, and ready to support lights, banners, and action.

Step 4: Complete the Arch Frame with the Final 8.2’ Beams

Now let’s lock in the outer frame:

• Take the remaining two 8.2 ft Box Trusses and place one on the leftmost side and the other on the rightmost side, perpendicular to the front and back.

• These beams connect the outer ST-UJB-12 corners (where the arcs end) and complete the sleek arch silhouette.


Boom. You’ve got a Global Truss arch display booth that’s clean, commanding, and 100% pro.

✨ Why This Booth Is a Crowd Magnet

• 🧲 Sleek curved arches that draw attention from every angle

• 💪 Built from heavy-duty aluminum truss with lightweight strength

• 💡 Perfect for mounting lighting truss, banners, LED panels, and sound gear

• 🎛️ Ideal for DJ truss systems, portable stages, or convention booth trussing


This isn’t just about structure—it’s about style + functionality wrapped in one eye-popping display.

🛒 Build It Right. Buy It from Famous Stages.

At FamousStages.com, we offer only the best Global Truss components used by industry pros worldwide. From stage truss kits and dj lighting truss setups, to aluminum lighting truss systems and portable stages, we’ve got the gear you need to build big, bold, and better.

Don’t settle for cookie-cutter booths. Build the arch booth that builds your brand.

👉 Shop the Global Truss F34 10.1’ x 21.67’ x 16.53’ Arch Display Booth now at FamousStages.com
