Welcome to another high-impact trussing tutorial, brought to you by the staging pros at FamousStages.com — your ultimate source for stage truss, lighting truss, DJ trussing, and all things Global Truss. Today, we’re guiding you through assembling a jaw-dropping 10x42 ft back wall with a 10x9 ft center display booth, using premium F34 aluminum lighting truss.

Whether you’re setting up a convention booth truss, display booth truss, or creating a sleek backdrop for a portable stage, this configuration is as strong and stunning as it gets.

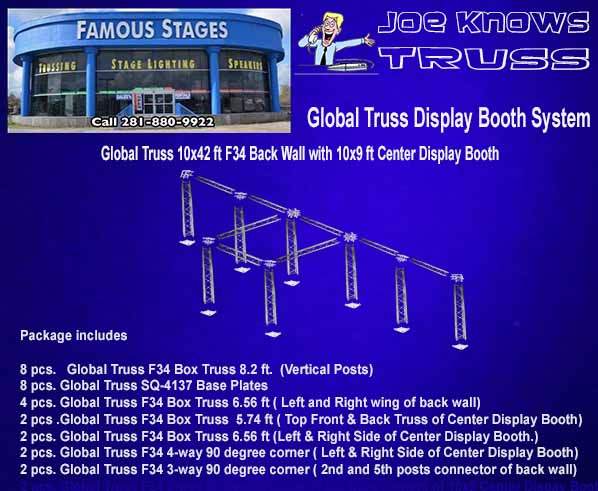

📆 Materials Used:

• 8 pcs Global Truss F34 8.2 ft Box Truss
  ➡️ 6 for the back wall posts, 2 for the front left and right verticals of the display booth

• 8 pcs Global Truss SQ-4137 Base Plates
  ➡️ 6 bases for the back wall, 2 for the display booth front posts

• 4 pcs Global Truss F34 6.56 ft Box Truss
  ➡️ 2 for the left wing top and 2 for the right wing top of the back wall

• 2 pcs Global Truss F34 5.74 ft Box Truss
  ➡️ 1 for the center top of the back wall and 1 for the front top truss of the display booth

• 2 pcs Global Truss F34 6.56 ft Box Truss
  ➡️ 1 for top left side and 1 for top right side of the center display booth

• 2 pcs Global Truss F34 4-Way 90° Corners
  ➡️ For top of the 3rd and 4th back wall posts

• 2 pcs Global Truss F34 3-Way 90° Corners
  ➡️ For top front left and top front right of the 10x9 ft display booth

• 2 pcs Global Truss F34 3-Way 90° Corners
  ➡️ For top of the 2nd and 5th back wall posts (left/right wing connectors)

• 2 pcs Global Truss F34 2-Way 90° Corners
  ➡️ For the top of Post 1 and Post 6 (outermost back wall verticals)


📅 Step 1: Lay the Foundation

Start by placing your 8 SQ-4137 base plates:

• Lay down 6 base plates in a straight line, spaced evenly across 42 feet, forming the back wall.

• Then, set up 2 more base plates, each 10 feet forward from the center base (Posts 3 & 4), to form the front-left and front-right legs of your 10x9 ft center display booth.


Pro Tip: Double-check alignment with a laser level or string line. This ensures everything stands square and solid.

🏋️♂️ Step 2: Raise the Vertical Posts

Now it's time to build the 8 verticals:

• Insert 6 pcs of 8.2 ft Global Truss F34 into the base plates to form the back wall vertical posts.

• Attach:
• 2-way 90° corners on top of Post 1 and Post 6

• 3-way 90° corners on top of Post 2 and Post 5 (for the side wing trusses)

• 4-way 90° corners on top of Post 3 and Post 4 (to connect both the back wall and center booth)

• Now install the two 8.2 ft verticals for the front legs of the 10x9 ft center display booth. Top them off with 3-way 90° corners.


🛋️ Step 3: Connect the Top Horizontal Trusses (Directly on the Vertical Posts)

With your vertical posts firmly in place, start connecting the top trusses using couplers, pins, and safety clips.

🔹 Back Wall:

• Left Wing:
• Connect 1 pc 6.56 ft truss from the 2-way corner on Post 1 to the 3-way corner on Post 2.

• Connect another 6.56 ft truss from the 3-way corner on Post 2 to the 4-way corner on Post 3.

• Right Wing:
• Connect 1 pc 6.56 ft truss from the 3-way corner on Post 5 to the 2-way corner on Post 6.

• Connect another 6.56 ft truss from the 4-way corner on Post 4 to the 3-way corner on Post 5.

• Center Section:
• Connect 1 pc 5.74 ft truss between the 4-way corners on Post 3 and Post 4 — this forms the back side of the 10x9 ft center display booth.


🏢 Step 4: Build the Top Frame of the Center Display Booth

With the back wall’s center section in place, it's time to form the roof of the display booth:

• From the 4-way corner on Post 3, connect 1 pc 6.56 ft truss forward to the 3-way corner on the front-left post.

• From the 4-way corner on Post 4, connect 1 pc 6.56 ft truss forward to the 3-way corner on the front-right post.

• Finally, connect the two front 3-way corner blocks with 1 pc 5.74 ft truss to form the front horizontal edge of the 10x9 booth.


You now have a bold, beautiful, and bombproof Global Truss display structure.

🚀 Why This Setup Rocks

This isn’t just a back wall — it’s a multifunctional truss installation perfect for:

• Trade shows and expos

• DJ booths and lighting rigs

• Stage backdrops and LED displays

• Branded activation zones and convention exhibits


With strong, lightweight aluminum truss, this system is modular, reusable, and scalable. It’s engineered to handle lighting trussing, banners, LED screens, and more — with flawless compatibility with any F34 global truss components.

🛎️ Order Everything You Need at FamousStages.com

Ready to rock this build? Everything listed here — from F34 box trusses to base plates to corner junctions — is available now at FamousStages.com.

Whether you're building a stage truss, portable stage, DJ lighting truss, or full convention booth truss system, we've got the parts, the expertise, and the unbeatable pricing.

Build bold. Build strong. Build Famous.

Need help planning your truss layout? Message us — our experts are here to help you design the perfect setup for your show, tour, or expo.
