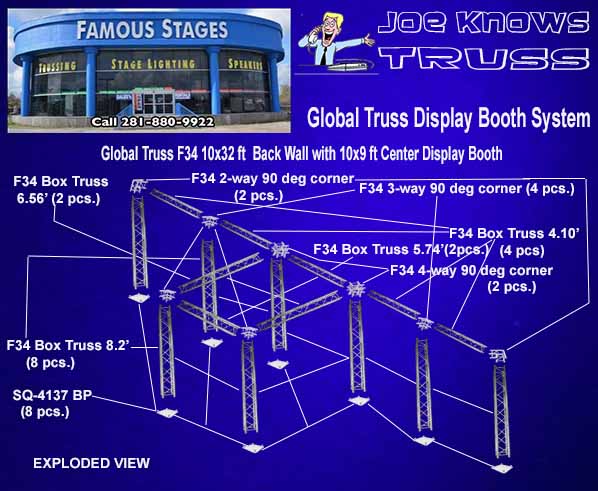

Global Truss F34 10x32 ft Back Wall with 10x9 ft Center Display Booth - Exploded View

Let’s Construct a Global Truss F34 10x32 ft Back Wall with 10x9 ft Center Display Booth

So you're ready to create a stunning event setup that screams pro-level production? Whether it’s for a concert, convention booth, DJ event, or trade show display, we’ve got just the truss system for you: the Global Truss F34 10x32 ft Back Wall with 10x9 ft Center Display Booth. It’s sleek, it’s sturdy, and it’s begging to be the star of your next show.

Let’s roll up our sleeves and walk through how to build this eye-catching, aluminum truss masterpiece—one that’ll have everyone asking, “Where’d you get that setup?” (Spoiler: famousstages.com, of course.)


🚧 MATERIALS YOU’LL NEED (Check that shopping list!)

  • 8 pcs Global Truss F34 Box Truss 8.2 ft
    (6 for the back wall verticals, 2 for the front posts of the 10x9 display booth)
  • 8 pcs Global Truss SQ-4137 Base Plates
    (1 per vertical post)
  • 4 pcs Global Truss F34 Box Truss 4.10 ft
    (Top corners of the back wall)
  • 2 pcs Global Truss F34 Box Truss 5.74 ft
    (Center top of the back wall and the front of the 10x9 booth)
  • 2 pcs Global Truss F34 Box Truss 6.56 ft
    (Left and right top sides of the display booth)
  • 2 pcs Global Truss F34 4-Way 90° Corners
    (Connect top center of the back wall and center back of the display booth)
  • 4 pcs Global Truss F34 3-Way 90° Corners
    (Two for the front corners of the booth, two for mid-wall top corners)
  • 2 pcs Global Truss F34 2-Way 90° Corners
    (Far left and far right top corners of the back wall)

🧱 STEP-BY-STEP ASSEMBLY

🔹 Step 1: Set the Foundation

Lay out your 8 base plates:

  • Place 6 of them 32 ft wide in a straight line for the back wall.
  • Place 2 of them 10 ft in front, forming the front posts of the display booth.

Attach the 8.2 ft F34 Box Trusses vertically to each base plate using standard couplers and safety pins. Make sure they're level and upright.

Now you've got your vertical skeleton: a 32 ft-wide back wall with a 10 ft-wide, 9 ft-deep center booth.

Global Truss F34 10x32 ft Back Wall with 10x9 ft Center Display Booth - Vertical Posts


🔹 Step 2: Build the Back Wall's Top Structure

This is where the truss artistry kicks in. Connect the horizontal trusses for the back wall in this exact order:

2-Way 90° Corner
4.10 ft Truss
3-Way 90° Corner
4.10 ft Truss
4-Way 90° Corner
5.74 ft Truss (center)
4-Way 90° Corner
4.10 ft Truss
3-Way 90° Corner
4.10 ft Truss
2-Way 90° Corner

This layout gives your wall both symmetry and a clean, professional look—perfect for mounting lighting truss, banners, LED screens, or speaker arrays.


🔹 Step 3: Create the 10x9 ft Center Display Booth

From the 4-way corner in the center of the back wall, extend forward:

  • 6.56 ft truss on the left
  • 6.56 ft truss on the right

At the ends of each, attach a 3-Way 90° Corner to connect:

  • Each vertical post in the front (those 8.2 ft trusses you installed earlier)
  • And the top front 5.74 ft truss running between them.

This completes your 10x9 ft center booth frame. It pops right out of the back wall like a spotlight-ready display area.

Global Truss F34 10x32 ft Back Wall with 10x9 ft Center Display Booth - Top Horizontal Truss


💡 WHY THIS SYSTEM ROCKS

  • Modular Design – Change the layout as your event needs evolve. Add trusses, take them away—easy peasy.
  • Lightweight but Durable – Thanks to Global Truss F34 aluminum truss construction, this setup is as tough as it is transportable.
  • Visual Impact – Perfect for DJs, stage lighting, trade show booths, backdrops, and more.
  • Portable Stages Compatible – Set this up behind any of our portable stages to elevate your entire production.

🛒 Ready to Build Your Own?

Every part mentioned in this setup is available at famousstages.com. Whether you're a seasoned stage manager or DIY production hero, this is your moment to shine—and sell out those tickets.

Don’t wait until the week of your event to get trussing. Stock up, build smart, and impress the crowd with a booth that looks like it came out of a concert tour or high-end trade show.
