When it comes to building a massive, professional, and rock-solid stage setup, few systems can compete with the Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System. Whether you’re designing a concert stage, trade show booth, festival rig, or corporate event trussing, this heavy-duty stage truss system gives you the strength, flexibility, and sleek look that production pros demand.

If you’re ready to build something big, impressive, and totally safe—let’s go step-by-step on how to assemble your Global Truss F34 Ground Support System like a true pro.

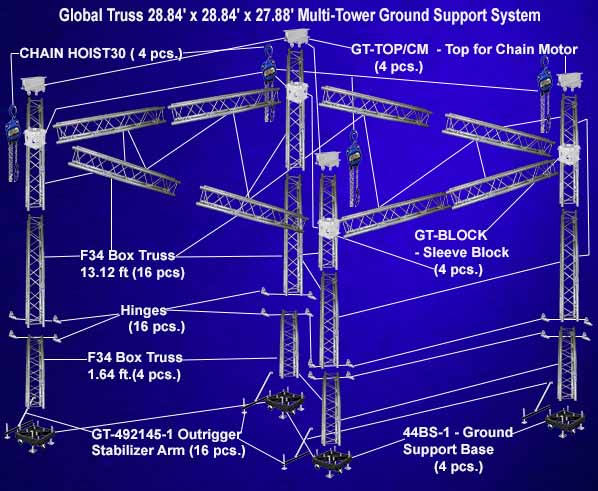

What You’ll Need

Each of the four towers in this truss system uses the following components:

• (1X) 44BS-1 – Ground Support Base

• (4X) GT-492145-1 – Outrigger with Stabilizer Arm

• (1X) GT-BLOCK – Sleeve Block

• (1X) GT-TOP/CM – Top for Chain Motor

• (2X) SHACKLE 5/8" – 5/8-inch Steel Shackle (Max Load 3-1/4 Tons)

• (1X) WIREROPE9 – 9 ft. Round Sling with Aircraft Cable Inside

• (2X) HINGE/M12-L/88MM – Left 88mm Hinge

• (2X) HINGE/M12-R/88MM – Right 88mm Hinge

• (1X) Global Truss F34 12" Aluminum Box Truss 1.64 ft.

• (2X) Global Truss F34 12" Aluminum Box Truss 13.12 ft.

The top horizontal structure connecting all four towers forms a perfect 28.84 ft square using:

• Eight (8) Global Truss 12" F34 Box Truss 13.12 ft. pieces (two per side) connected to the GT-Blocks (Sleeve Blocks).

(Note: CHAIN HOIST30 - 1 Ton, 30 ft. Manual Chain Hoist is not included in the total package price as it’s currently out of stock.)

Step 1: Set Your Foundation

Start by laying out the 44BS-1 Ground Support Bases in a perfect 28.84 ft square area. Measure twice, because the precision of your base layout ensures your tower structure stays stable and perfectly aligned.

Attach the four GT-492145-1 Outriggers with Stabilizer Arms to each base. These are the legs that give your structure that critical lateral support. Tighten all connections securely so your base won’t budge when your truss tower starts to rise.

Step 2: Build the Tower Bases

On each base, connect one Global Truss 12" Aluminum Box Truss 1.64 ft. vertically. This short truss segment serves as the starting leg for your tower and will sit right under the GT-BLOCK Sleeve Block.

Now, slide your GT-BLOCK Sleeve Block over the 1.64 ft truss. This block will travel up and down the tower later on when you lift your top structure using a chain hoist or manual winch.

Step 3: Add the Hinges and Vertical Trusses

On top of the 1.64 ft truss (inside the GT-BLOCK), connect your Left and Right 88mm Hinges (HINGE/M12-L & R). These are crucial — they let your tower tilt safely forward during the assembly process, making it easier to attach the upper trusses before raising the system upright.

Then, connect two Global Truss 13.12 ft Aluminum Box Trusses vertically on top of the hinge assembly. You’ll now have one impressive 27.88 ft tower per corner.

Repeat this process for all four towers.

Step 4: Assemble the Top Horizontal Structure on the Ground

Before lifting anything, assemble the top square truss structure on the ground.

Each side of the square will be two 13.12 ft trusses connected together, totaling 28.84 ft per side. Connect each corner to a GT-BLOCK Sleeve Block that’s already on your four tower bases.

Make sure all truss pins, bolts, and safety clips are locked tightly. The top square truss is what ties all four towers together—it’s the heart of your Global Truss F34 Ground Support System.

Step 5: Lift and Secure the Structure

Now comes the exciting part! Attach your WIREROPE9 sling and SHACKLE 5/8" hardware to the GT-TOP/CM and the chain hoist (manual or motorized).

Carefully start raising the GT-BLOCKS to lift the entire top square truss off the ground. This process will gradually bring your system upright. Make sure you have enough hands on deck—lifting a truss system of this size is a team effort.

Once each tower is fully upright, lock the hinges, tighten the outriggers, and ensure every joint is solid. You’ve just erected one of the strongest and most reliable multi-tower trussing systems available today.

Step 6: Final Adjustments and Safety Checks

Before loading any lights, LED walls, or sound gear, double-check:

• All pins, bolts, and clips are secured.

• The outriggers are locked and tightened.

• Each GT-BLOCK moves smoothly and evenly when tested.

• The ground support bases are stable and level.

When everything checks out, you’re ready to mount your lighting truss, DJ truss, stage truss, or display booth truss gear with total confidence.

Why Choose Global Truss F34 Systems?

Because professionals trust them. The Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System isn’t just a structure—it’s a statement of strength and reliability. Whether you’re setting up portable stages, concert trussing, trade show booths, or event lighting rigs, this aluminum lighting truss system delivers unmatched durability, quick setup, and sleek, professional appeal.

Built from lightweight yet tough aluminum, the F34 series combines portability with load-bearing power—perfect for DJ lighting truss, stage trussing, and large-scale events.

Order Your Complete Global Truss F34 Multi-Tower System at Famous Stages!

At FamousStages.com, we make it easy to get all your Global Truss, lighting truss, DJ truss, and stage truss gear in one place. From portable stages to display booth truss systems, we carry everything professionals need to make their event setups stand tall and shine bright.

Don’t wait—your next big stage deserves the best support.
👉 Shop the Global Truss F34 Multi-Tower Ground Support System today at FamousStages.com and take your productions to the next level!

🌟 Featured Product Spotlight: Global Truss F34 Ground Support System

Looking to take your event setup to professional heights? The Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System is your ultimate solution for stage truss, lighting truss, and DJ truss applications.

Built from high-grade aluminum lighting truss, this system is designed for serious productions — from concert stages and music festivals to trade show booths and display booth truss systems. With its durable F34 square truss design, precision sleeve blocks, and adjustable outriggers, you get unbeatable stability and versatility.

At Famous Stages, we stock everything you need for your truss setup — from portable stages to ground support truss systems, stage trussing, DJ lighting truss, and all Global Truss accessories. Whether you’re rigging lights, LED panels, or banners, we’ve got you covered with trusted quality and fast nationwide shipping.

👉 Shop now at FamousStages.com and discover why professionals choose us for all their Global Truss, lighting truss, and stage trussing needs!

❓ Frequently Asked Questions About the Global Truss F34 Multi-Tower Ground Support System

1. What is a Global Truss F34 Ground Support System used for?

The Global Truss F34 Ground Support System is designed to support large-scale stage truss, lighting truss, and DJ truss setups. It’s perfect for concerts, festivals, trade shows, and conventions where heavy lighting or LED video walls need secure overhead rigging.

2. How tall is the Global Truss F34 27.88-ft tower?

Each tower in this Global Truss ground support system stands approximately 27.88 feet high when fully assembled, providing exceptional clearance for lighting truss, banners, and video walls in professional stage and event environments.

3. Can I use the Global Truss F34 system for indoor and outdoor events?

Yes! The F34 aluminum lighting truss is built from high-grade, corrosion-resistant aluminum, making it ideal for both indoor and outdoor applications — from portable stages and DJ trussing setups to outdoor concert rigging and trade show displays.

4. What components are included in the Global Truss F34 Ground Support package?

Each tower comes with a ground support base, outriggers, GT-BLOCK sleeve block, hinges, shackles, wire rope sling, and F34 truss segments (13.12 ft and 1.64 ft). The top horizontal truss frame is built using two 13.12-ft F34 trusses per side, creating a 28.84-ft square.

5. Where can I buy the complete Global Truss F34 Ground Support System?

You can purchase the Global Truss F34 28.84' x 28.84' x 27.88' Multi-Tower Ground Support System directly from FamousStages.com — your one-stop shop for Global Truss, lighting trussing, DJ truss, display booth truss, and portable stages. We offer expert support, fast delivery, and unbeatable prices!

6. Is assembly complicated for first-time users?

Not at all! While it’s a professional-grade system, the Global Truss F34 Ground Support System is designed for easy setup using standard truss connection hardware. With a small crew and careful alignment, you can assemble your stage trussing safely and efficiently in just a few hours.
