When it comes to stage truss setups for trade shows, concerts, or conventions, nothing grabs attention quite like a professionally designed Global Truss structure. If you want a curved back wall with a standout center booth, this Global Truss 4.23' x 26.76' x 10.1' setup is your perfect solution.

Whether you’re an event planner, DJ, or production manager, this guide walks you step-by-step through building a strong, sleek, and reliable lighting truss system using premium aluminum truss components from famousstages.com—your trusted source for stage trussing, dj truss, display booth truss, and convention booth truss setups.

Materials You’ll Need

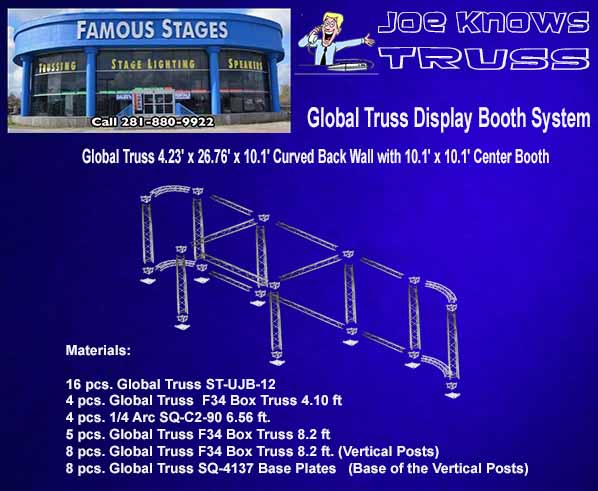

Here’s everything you need to assemble this Global Truss curved back wall with center booth:

1. Global Truss ST-UJB-12 Junction Blocks – 16 pcs.
• 2 pcs. for Post 1 (top & bottom)

• 2 pcs. for Post 2 (top & bottom)

• 2 pcs. for Post 3 (top & bottom)

• 2 pcs. for Post 4 (top & bottom)

• 2 pcs. for Post 5 (top & bottom)

• 2 pcs. for Post 6 (top & bottom)

• 2 pcs. for Post 7 (top & bottom)

• 2 pcs. for Post 8 (top & bottom)

2. Global Truss F34 Box Truss 4.10 ft – 4 pcs.
• 2 pcs. top & bottom truss between Post 2 & Post 3

• 2 pcs. top & bottom truss between Post 4 & Post 5

3. Global Truss 1/4 Arc SQ-C2-90 6.56 ft – 4 pcs.
• 2 pcs. top & bottom for leftmost wing curve (Post 1 to Post 2)

• 2 pcs. top & bottom for rightmost wing curve (Post 5 to Post 6)

4. Global Truss F34 Box Truss 8.2 ft – 5 pcs.
• 2 pcs. top & bottom back of center booth (Post 3 to Post 4)

• 1 pc. top front of center booth (Post 7 to Post 8)

• 1 pc. top left side of center booth

• 1 pc. top right side of center booth

5. Global Truss F34 Box Truss 8.2 ft – 8 pcs.
• Vertical posts (Posts 1 through 8)

6. Global Truss  CURVED.
• 1 base plate per vertical post


These high-quality aluminum lighting truss components create a strong, lightweight, and professional display booth truss perfect for trade shows, DJ setups, and conventions.

Step-by-Step Assembly

Step 1: Lay the Foundation

Place all Global Truss SQ-4137 Base Plates where each vertical post will stand. Layout:

• Posts 1 & 2: left curved wing

• Posts 3 & 4: left side of center booth

• Posts 5 & 6: right curved wing

• Posts 7 & 8: right side of center booth


Accurate placement ensures your stage trussing setup is stable and ready for assembly.

Step 2: Build the Vertical Posts

Attach a Global Truss ST-UJB-12 Junction Block to each base plate. Connect one Global Truss F34 Box Truss 8.2 ft vertically and cap with another junction block. Repeat for all eight posts.

Now you have a solid skeleton for your stage truss system, ready to support lighting and displays.

Step 3: Form the Curved Wings

Use Global Truss 1/4 Arc SQ-C2-90 6.56 ft pieces:

• Left wing: connect top & bottom arcs between Posts 1 & 2

• Right wing: connect top & bottom arcs between Posts 5 & 6


These curves give your display booth truss an elegant, professional look while highlighting your lighting trussing setup.

Step 4: Add Horizontal Trusses

Connect Global Truss F34 Box Truss 4.10 ft sections:

• Between Post 2 & Post 3 (top & bottom)

• Between Post 4 & Post 5 (top & bottom)


Then use Global Truss F34 Box Truss 8.2 ft for the center booth:

• Back wall: Post 3 to Post 4

• Front top: Post 7 to Post 8

• Left & right sides: 1 piece each


This creates a professional trade show booth truss system ready for lights, banners, or DJ equipment.

Step 5: Secure and Inspect

Tighten all bolts and double-check junctions. A sturdy aluminum lighting truss ensures your dj lighting truss setup is safe, reliable, and visually stunning.

Why Choose Famous Stages

At famousstages.com, we carry everything from stage truss, lighting truss, and dj truss to display booth truss and convention booth truss systems. Whether you need portable stages or full aluminum truss kits, our gear is trusted by event professionals nationwide.

Final Thoughts

Building a Global Truss 4.23' x 26.76' x 10.1' curved back wall with a 10.1' x 10.1' center booth is straightforward with the right parts and guidance. With stage trussing and lighting truss from famousstages.com, you can create a striking, professional setup that impresses at any event.

Pro Tip: Always plan your layout carefully and double-check each junction for stability. A little prep goes a long way in creating a show-stopping trade show booth truss system.
