How to Assemble the Global Truss 4.23' x 24.36' x 10.1' Curved Back Wall with 6' x 9' Center Booth — The Showstopper Setup

If you’re looking to create a jaw-dropping, professional, and durable backdrop for your next trade show, concert, or high-profile event, the Global Truss 4.23' x 24.36' x 10.1' Curved Back Wall with 6' x 9' Center Booth is a winner. Whether you’re an event manager, production wizard, or DJ on a mission to impress, this setup combines sleek curves with a functional center booth that will make your display impossible to ignore.

In this guide, we’ll walk you through assembling this powerhouse of a structure using Global Truss F34 box trussing, aluminum truss segments, stage trussing hardware, and sturdy base plates — all available at famousstages.com, where your stage truss dreams come true.


📦 Materials You’ll Need (Buy Everything at Famous Stages)

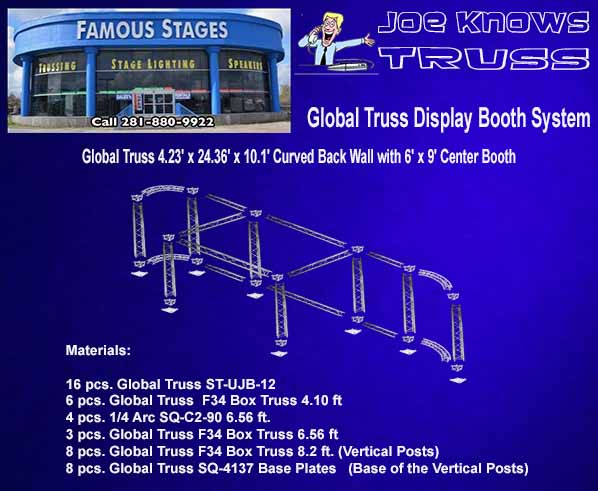

Here’s your exact shopping list for building the Global Truss 4.23' x 24.36' x 10.1' Curved Back Wall with 6' x 9' Center Booth:

  1. Global Truss ST-UJB-12 Junction Blocks – 16 pcs.

    • 2 pcs. for Post 1 (top and bottom)

    • 2 pcs. for Post 2

    • 2 pcs. for Post 3

    • 2 pcs. for Post 4

    • 2 pcs. for Post 5

    • 2 pcs. for Post 6

    • 2 pcs. for Post 7

    • 2 pcs. for Post 8

  2. Global Truss F34 Box Truss 4.10 ft – 6 pcs.

    • 2 pcs. top and bottom between Post 2 and Post 3

    • 2 pcs. top and bottom between Post 4 and Post 5

    • 1 pc. top left side of the center booth (Post 3 to Post 7)

    • 1 pc. top right side of the center booth (Post 4 to Post 8)

  3. Global Truss 1/4 Arc SQ-C2-90 6.56 ft – 4 pcs.

    • 2 pcs. (top and bottom) for leftmost wing curve (Post 1 to Post 2)

    • 2 pcs. (top and bottom) for rightmost wing curve (Post 5 to Post 6)

  4. Global Truss F34 Box Truss 6.56 ft – 3 pcs.

    • 2 pcs. (top and bottom) for back of center booth (Post 3 to Post 4)

    • 1 pc. top front truss of center booth (Post 7 to Post 8)

  5. Global Truss F34 Box Truss 8.2 ft – 8 pcs.

    • Vertical posts (Posts 1–8)

  6. Global Truss SQ-4137 Base Plates – 8 pcs.

    • 1 base plate for each vertical post


Step 1: Laying the Foundation with Base Plates and Vertical Posts

Every great stage truss structure begins with a rock-solid base. Position your 8 pcs. Global Truss SQ-4137 base plates to outline the curved back wall and the center booth footprint.

Attach 8 pcs. Global Truss F34 Box Truss 8.2 ft vertically onto the base plates. These are your main vertical posts — Posts 1 through 8.

Post placement:

  • Posts 1 & 2: Leftmost section of the curved back wall.

  • Posts 3 & 4: Back left and right corners of the center booth.

  • Posts 5 & 6: Rightmost section of the curved back wall.

  • Posts 7 & 8: Front left and right corners of the center booth.


Step 2: Adding Strength with ST-UJB-12 Junction Blocks

Connect your Global Truss ST-UJB-12 junction blocks at the top and bottom of each post. These act as connection hubs for horizontal truss segments and curved arc pieces, keeping the structure perfectly aligned and sturdy.

How to Assemble the Global Truss 4.23' x 24.36' x 10.1' Curved Back Wall with 6' x 9' Center Booth Vertical Posts with ST-UJB-12s

Global Truss 4.23' x 24.36' x 10.1' Curved Back Wall with 6' x 9' Center Booth Curved Back Wall only

How to Assemble the Global Truss 4.23' x 24.36' x 10.1' Curved Back Wall with 6' x 9' Center Booth Exploded View




Step 3: Creating the Curved Back Wall

  • Left wing curve: Attach 1/4 Arc SQ-C2-90 6.56 ft to the top and bottom between Post 1 and Post 2.

  • Right wing curve: Attach another pair of 1/4 Arc SQ-C2-90 6.56 ft to the top and bottom between Post 5 and Post 6.


Step 4: Connecting the Back Wall to the Center Booth

  • Between Post 2 and Post 3: Use 2 pcs. Global Truss F34 Box Truss 4.10 ft (top and bottom).

  • Between Post 4 and Post 5: Use another 2 pcs. Global Truss F34 Box Truss 4.10 ft (top and bottom).


Step 5: Building the Center Booth Back Wall

Use 2 pcs. Global Truss F34 Box Truss 6.56 ft (top and bottom) to connect Post 3 to Post 4.


Step 6: Building the Center Booth Front & Sides

  • Front top truss: 1 pc. Global Truss F34 Box Truss 6.56 ft (Post 7 to Post 8).

  • Left side top: 1 pc. Global Truss F34 Box Truss 4.10 ft (Post 3 to Post 7).

  • Right side top: 1 pc. Global Truss F34 Box Truss 4.10 ft (Post 4 to Post 8).


Step 7: Lifting and Locking It In

Assemble as much of the top structure as possible on the ground. With enough people and step ladders, lift the top into place and secure to your vertical posts via the ST-UJB-12 junction blocks. Check every pin, clip, and coupler for tightness.




Step 8: The Finishing Touches

Make your Global Truss curved back wall with center booth pop with:

  • Lighting truss fixtures for dramatic stage effects.

  • Banners or LED screens for brand impact.

  • Aluminum lighting truss accessories for speakers or moving heads.

  • Portable stages in front for presentations or performances.


Why This Setup Is a Game-Changer

The curved back wall commands attention, while the center booth gives you functional space for demos, mixing gear, or one-on-one client interactions. Perfect for:

  • Trade show booth truss systems

  • DJ trussing and stage setups

  • Lighting trussing for live events

  • Convention booth truss displays


Get Everything at Famous Stages

All components — from Global Truss F34 box trusses to ST-UJB-12 junction blocks, 1/4 arc trusses, and SQ-4137 base plates — are in stock at famousstages.com.
We specialize in stage truss, stage trussing, lighting truss, DJ lighting truss, aluminum truss, aluminum lighting truss, portable stages, lighting trussing, convention booth truss, and display booth truss systems that help you build show-stopping events.

When you’re ready to steal the show, start with the truss that’s built to impress.
