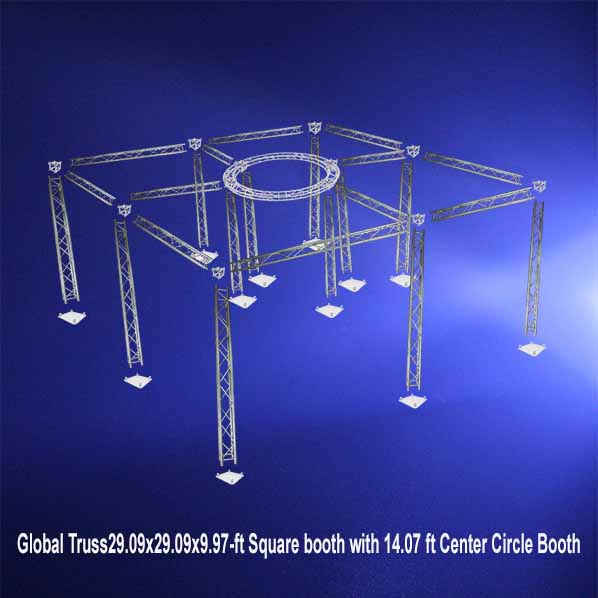

If you’re dreaming of a show-stopping trade show booth truss or DJ lighting truss display that demands attention, the Global Truss 29.09x29.09x9.97 ft Square Booth with a 14.07 ft Inner Center Truss Circle Booth is exactly what you need. This modular and visually striking stage truss system is designed for professionals who want both durability and style. Using Global Truss F34 aluminum lighting truss, you can create a structure that’s perfect for conventions, concerts, or brand showcases — all available now at famousstages.com.

Materials You’ll Need

• 12x F34 Box Truss 9.02 ft Vertical Posts (8 for the outer square posts, 4 for the inner circle booth)

• 12x ST-UJB-12 Junction Blocks (8 on top of the outer square posts, 4 on top of the inner circle posts)

• 1x SQ-C4 90 Truss Circle 13.12 ft (four ¼ arc segments form the inner circle booth)

• 8x F34 Box Truss 13.12 ft (two per side for the outer square connections)

• 4x F34 Box Truss 6.56 ft (each connects the middle outer posts to the north, south, east, and west ST-UJB-12 junctions of the inner circle booth)

• 12x SQ-4137 Base Plates (for the base of all 12 vertical posts)

• 20x ST-UJB/C-12 ½ Coupler with Alien Bolt Packs (four per pack)

All of these stage trussing components are available from Famous Stages, your trusted source for Global Truss, lighting truss, DJ truss, and aluminum truss systems.

Step 1: Lay Down the Foundation

Start by placing your 12 SQ-4137 base plates on the ground. Set 8 bases in a 29.09 ft by 29.09 ft square layout to form the outer booth. Then, position the remaining 4 base plates inside to form a smaller 14.07 ft by 14.07 ft square — this will be your inner center truss circle booth. Think of it as building a booth within a booth, creating a layered, professional structure perfect for lighting and branding setups.

Step 2: Raise the Vertical Posts

Attach each 9.02 ft F34 aluminum box truss vertical post onto the base plates. Place an ST-UJB-12 junction block on top of each vertical post — 8 for the outer square booth and 4 for the inner circle booth. These Global Truss F34 truss posts are made from lightweight yet strong aluminum truss, ideal for supporting lighting fixtures, LED screens, or banners. Be sure to level everything properly to keep the structure perfectly aligned.

Step 3: Build the Inner Center Truss Circle Booth

Now it’s time to assemble the circular booth at the center. Connect the four ¼ arc segments of the SQ-C4 90 Truss Circle (13.12 ft diameter) between the four ST-UJB-12 junction blocks on top of the inner circle posts. Once connected, you’ll have a smooth, circular aluminum lighting truss that’s perfect for hanging moving heads, LED lights, or banners that need 360-degree visibility. This circle booth creates a stunning visual centerpiece for any event.

Step 4: Build the Outer Square Booth

Next, connect the outer square booth using your 8 F34 Box Truss 13.12 ft segments. Each side of the booth uses two of these trusses, connected between the ST-UJB-12 junction blocks on the corner and middle posts. Once complete, you’ll have a sturdy 29.09 ft square truss frame surrounding your inner circle booth. This outer truss is perfect for rigging lighting fixtures, LED walls, banners, or overhead signage, giving your display that professional trade show booth truss look.

Step 5: Connect the Inner and Outer Structures

Now connect the inner circle booth to the outer square frame using your four F34 Box Truss 6.56 ft segments. Each one connects the middle post of the outer square directly to the north, south, east, and west ST-UJB-12 junctions on the inner circle. These connections not only strengthen the entire structure but also create a beautiful geometric design that looks amazing in any event space.

Step 6: Secure Everything with Couplers

Finally, lock everything in place using your ST-UJB/C-12 ½ Couplers with Alien Bolts. These couplers are essential for keeping your lighting truss and stage truss connections tight and safe. They’re quick to install, durable, and perfect for professional touring setups, trade shows, and live productions where stability is key.

Why This Truss Booth Rocks

The Global Truss 29.09x29.09x9.97 ft Square Booth with a 14.07 ft Inner Center Circle Booth is not just a structure — it’s a statement. It’s designed for professionals who demand strength, flexibility, and aesthetics all in one system.

• Perfect for trade shows, concerts, and DJ events

• Combines strength, modularity, and modern design

• Lightweight aluminum truss makes transport easy

• Ideal for lighting, LED walls, banners, and branding

Whether you need a DJ lighting truss, a display booth truss, or a portable stage truss system, this Global Truss F34 booth can handle it all with style and stability.
