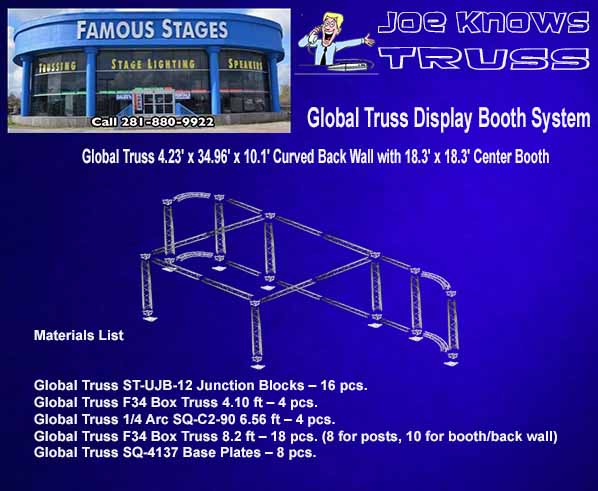

If you’ve been dreaming of a show-stopping trade show booth or a sleek display wall for your next big event, let’s talk trussing. And not just any trussing—today we’re building the Global Truss 4.23' x 34.96' x 10.1' Curved Back Wall with 18.3' x 18.3' Center Booth.

This setup is bold, professional, and versatile. It screams “Come check us out!” whether you’re rocking it at a trade show, a convention, or even a high-profile DJ setup. The best part? With the right materials and a little guidance, you can make this happen yourself.

Grab your coffee, roll up your sleeves, and let’s get into the build.

Materials You’ll Need

To pull this masterpiece together, here’s your checklist (all available at famousstages.com):

1. Global Truss ST-UJB-12 Junction Blocks – 16 pcs.

   • 2 pcs. each for Posts 1–8 (top and bottom).

2. Global Truss F34 Box Truss 4.10 ft – 4 pcs.

   • 2 pcs. between Post 2 and Post 3 (top & bottom).

   • 2 pcs. between Post 4 and Post 5 (top & bottom).

3. Global Truss 1/4 Arc SQ-C2-90 6.56 ft – 4 pcs.

   • 2 pcs. (top & bottom) for the left wing curve (Post 1 → Post 2).

   • 2 pcs. (top & bottom) for the right wing curve (Post 5 → Post 6).

4. Global Truss F34 Box Truss 8.2 ft – 10 pcs.

   • 4 pcs. for the back of the center booth (Post 3 → Post 4, top & bottom).

   • 2 pcs. for the top front of the center booth (Post 7 → Post 8).

   • 2 pcs. for the top left side of the center booth.

   • 2 pcs. for the top right side of the center booth.

5. Global Truss F34 Box Truss 8.2 ft – 8 pcs.

   • Vertical posts (Posts 1–8).

6. Global Truss SQ-4137 Base Plates – 8 pcs.

   • 1 base plate for each post.

Step 1: Set Your Foundation

Every great structure starts with a solid foundation. Place your 8 SQ-4137 Base Plates evenly along your footprint:

• Posts 1–6 will create the long curved back wall (34.96 ft).

• Posts 7 & 8 will form the front corners of your 18.3’ x 18.3’ center booth.

Attach the ST-UJB-12 junction blocks to the base of each post  and on the top of each 8.2 ft Box Truss vertical post..

Step 2: Raise the Vertical Posts

Time to bring this baby to life! Secure each 8.2 ft Global Truss F34 Box Truss vertically onto your base plates, locking them into the junction blocks. That’s 8 posts in total.

Pro tip: Have a buddy (or three) help you lift and steady while you bolt everything down. Stage trussing may look lightweight, but safety is key.

Step 3: Build the Curved Back Wall

This is where the “wow factor” starts.

• On the left wing, connect two 1/4 Arc SQ-C2-90 trusses (top & bottom) between Post 1 and Post 2.

• On the right wing, repeat with two more 1/4 Arc trusses between Post 5 and Post 6.

Next, add the 4.10 ft F34 Box Trusses (top & bottom) between Post 2 and Post 3, and again between Post 4 and Post 5.

Finally, connect your vertical Posts 3 and 4 with 8.2 ft F34 trusses (top & bottom) to finish off the back wall span.

You now have a smooth, professional curved back wall that stretches almost 35 feet across.

Step 4: Assemble the Center Booth

Now let’s create the 18.3’ x 18.3’ booth structure inside the wall.

• Connect Post 3 to Post 4 (back of the booth) using two 8.2 ft F34 trusses (top & bottom).

• Move to the front: connect Post 7 to Post 8 with another 8.2 ft truss on top.

• For the sides, link Post 3 to Post 7 and Post 4 to Post 8 using 8.2 ft trusses on top.

This gives you a solid, square center booth—perfect for banners, lighting truss mounts, DJ setups, or display walls.

Step 5: Lock, Load, and Light It Up

Double-check all junctions, tighten your couplers, and make sure every truss is aligned. Once it’s secure, you’ve got yourself a show-ready Global Truss display booth truss system.

From here, the sky’s the limit. Add LED walls, mount your lighting truss fixtures, or hang banners that shout your brand across the hall. The aluminum truss system is lightweight, strong, and flexible enough to evolve with your needs—whether that’s DJ lighting truss, trade show booth truss, or a custom display booth truss for conventions.
