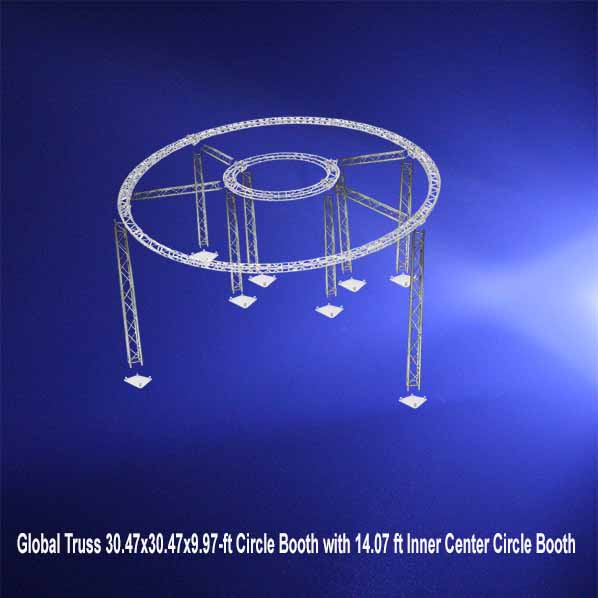

The Ultimate Double-Ring Trade Show Powerhouse

If you want a trade show booth that turns heads and pulls attendees in like a magnet, this is the one. A perfectly engineered Global Truss F34 double-ring circular booth delivers a visual punch that no square or rectangle can match. It’s clean. It’s modern. It’s symmetrical. It’s rock-solid and tour-worthy.

Whether your goal is to rig lighting truss fixtures, build a striking display booth truss structure, create a DJ truss centerpiece, or produce a high-impact convention booth truss layout, this double-circle system delivers unmatched presence.

Let’s build your new trade show weapon.

MATERIALS NEEDED

Outer & Inner Circles

1. 1 × SQ-C4-90 (13.12 ft truss circle)
   – Becomes 14.07 ft diameter using SQ-UJB-12 junction blocks at N-E-S-W.

2. 1 × SQ-C9-30 (29.52 ft truss circle)
   – Becomes 30.47 ft diameter using SQ-UJB-12 junction blocks at N-E-S-W.


Vertical Structure
3. 8 × F34 9.02 ft Box Truss
– 4 for the outer ring, 4 for the inner ring.

Bases
4. 8 × SQ-4137 Steel Base Plates

Rigging & Connectors
5. 8 × SQ-UJB-12 12-inch Junction Blocks
– 4 for outer circle N-E-S-W, 4 for inner circle N-E-S-W.

6. 16 × ST-UJB/C-12 half Couplers with Alien Bolts
– For secure, professional-grade locking between arcs, junction blocks, spacers, verticals, and connector beams.

Circle-to-Circle Connectors
7. 4 × SQ-2921 0.69 ft F34 Spacers
8. 4 × F34 Box Truss 6.56 ft
– Each one combines with a 0.69 ft spacer to create 7.25 ft connector beams linking the inner and outer circles.

This layout ensures a symmetrical, stable, visually striking installation built from premium aluminum truss — ideal for heavy lighting trussing, DJ lighting truss setups, branding rings, and immersive expo environments.

STEP 1: Build the Outer Circle (30.47 ft)

Lay down four SQ-4137 base plates in perfect N-E-S-W orientation.

Assemble the SQ-C9-30 arcs and insert the SQ-UJB-12 junction blocks at each directional point. Secure everything using ST-UJB/C-12 ½” Couplers with Alien Bolts, locking down:

• Arc-to-junction block connections
• Junction block-to-arc return connections

The Alien Bolt couplers create an ultra-tight union, eliminate micro-shifts, and improve load distribution — essential for any large lighting truss or stage trussing installation.

Your final outer ring diameter = 30.47 ft.

STEP 2: Build the Inner Circle (14.07 ft)

Inside the outer circle, place four more base plates at N-E-S-W.

Assemble the SQ-C4-90 small arcs, insert the four SQ-UJB-12 junction blocks, and secure all connections using your ST-UJB/C-12 ½" Alien Bolt Couplers.

Your inner circle is now a perfect 14.07 ft diameter structure — stable, compact, and ideal for LED centerpieces, hologram rigs, product demos, or brand activation pods.

STEP 3: Install the 8 Vertical F34 Truss Posts

Bolt the 8 × F34 9.02 ft vertical truss posts onto each base plate:

• 4 for the outer circle
• 4 for the inner circle

Use ST-UJB/C-12 couplers to lock each vertical truss firmly into its base-side junction block connection.

These couplers greatly increase overall rigidity — crucial once overhead lighting truss, banners, or LED loads are applied.

This brings your height to 9.97 ft.

STEP 4: Raise & Secure the Inner Circle

With enough helpers (and ladders), lift the complete 14.07 ft inner ring.

Attach the ring to the tops of the four vertical posts using the SQ-UJB-12s and your Alien Bolt couplers for maximum rigidity and vibration resistance.

STEP 5: Raise & Secure the Outer Circle

Now lift the 30.47 ft outer ring and secure it to the top of the four outer vertical posts.

This ring becomes the main structural and visual frame of your display booth truss design.

Using Alien Bolt couplers eliminates rotational drift and ensures perfect symmetry across the entire booth.

STEP 6: Build & Install the 7.25 ft Connector Beams

Create four connector beams:

**1 × 6.56 ft F34 truss
+
1 × 0.69 ft SQ-2921 spacer

7.25 ft finished beam**

Use ST-UJB/C-12 ½" Alien Bolt Couplers so the truss and spacer behave as a single rigid unit.

Attach each completed beam between the outer and inner junction blocks (N-E-S-W).
Secure both ends with Alien Bolt couplers for maximum load strength and perfectly aligned geometry.

Your structure now becomes a completely stabilized, visually massive double-ring truss system.

STEP 7: Add Lighting, Branding, LED Screens & DJ Production Gear

With the structure fully locked, it’s time to turn it into a showpiece.

This booth supports:
• Moving head lighting
• Wash fixtures
• LED strip halos
• Center-hung LED spheres
• Lightweight screens
• Hanging signage
• Brand rings
• DJ lighting systems
• Fabric stretch displays
• Projection mapping

This is where stage truss, lighting truss, DJ truss, aluminum lighting truss, and portable stages all come together to create a powerful 360° immersive environment.

Alien Bolt couplers ensure the booth performs like a professionally engineered touring structure.

WHY THIS DOUBLE-RING DESIGN GENERATES MORE AUDIENCE

A circular booth naturally draws crowds —
but a circle-within-a-circle double-ring generates:

• More curiosity
• More engagement
• More photos
• More walk-through traffic
• More visibility from across the trade show floor

Combined with Global Truss F34 and ST-UJB/C-12 Alien Bolt couplers, you get a structure that’s:

• Strong
• Lightweight
• Modular
• Reusable
• Beautiful
• Perfect for lighting trussing & display booth truss setups
• Ideal for major conventions and live events

This is the type of booth big brands and production companies use when they want to dominate a show.

READY TO BUILD YOUR OWN DOUBLE-RING BOOTH?
FAMOUSSTAGES.COM HAS EVERYTHING YOU NEED

From stage truss and lighting truss to junction blocks, Alien Bolt couplers, aluminum truss segments, and complete ready-to-build circle booth kits — FamousStages.com is your #1 source for professional-grade trussing systems.

If you want maximum visibility, maximum audience, and maximum impact…
the 30.47 ft + 14.07 ft double-circle booth is the one to build.
