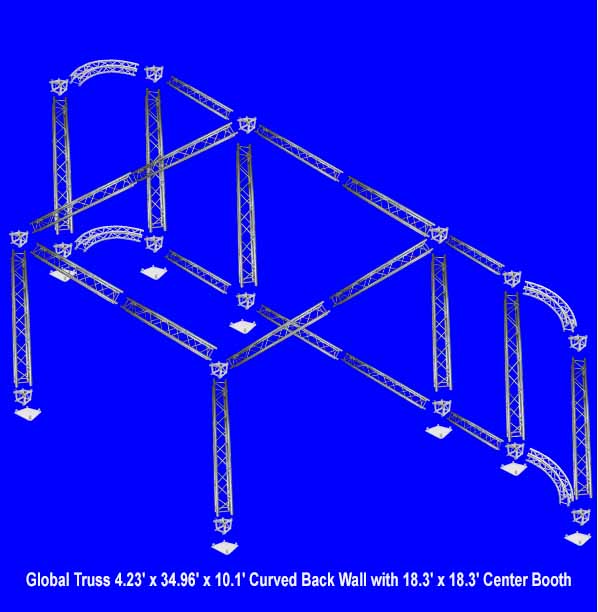

Global Truss 4.23’ x 34.96’ x 10.1’ Curved Back Wall with 18.3’ x 18.3’ Center Booth on blue background

Global Truss 4.23’ x 34.96’ x 10.1’ Curved Back Wall with 18.3’ x 18.3’ Center Booth

Famous Stages
$23,430.00 USD

Materials List

To pull this masterpiece together, here’s your checklist (all available at famousstages.com):

  1. Global Truss ST-UJB-12 Junction Blocks – 16 pcs.
    • 2 pcs. each for Posts 1–8 (top and bottom).
  2. Global Truss F34 Box Truss 4.10 ft – 4 pcs.
    • 2 pcs. between Post 2 and Post 3 (top & bottom).
    • 2 pcs. between Post 4 and Post 5 (top & bottom).
  3. Global Truss 1/4 Arc SQ-C2-90 6.56 ft – 4 pcs.
    • 2 pcs. (top & bottom) for the left wing curve (Post 1 → Post 2).
    • 2 pcs. (top & bottom) for the right wing curve (Post 5 → Post 6).
  4. Global Truss F34 Box Truss 8.2 ft – 10 pcs.
    • 4 pcs. for the back of the center booth (Post 3 → Post 4, top & bottom).
    • 2 pcs. for the top front of the center booth (Post 7 → Post 8).
    • 2 pcs. for the top left side of the center booth.
    • 2 pcs. for the top right side of the center booth.
  5. Global Truss F34 Box Truss 8.2 ft – 8 pcs.
    • Vertical posts (Posts 1–8).
  6. Global Truss SQ-4137 Base Plates – 8 pcs.
    • 1 base plate for each post.
